Hard Top Weatherstrip: Service and Repair
Hardtop Lower Weatherstrip ReplacementNOTE:
- To remove and install the hardtop lower weatherstrip, remove the roof from the body.
- Take care not to scratch the roof.
- Use a clip remover to remove the clips.
1. Remove the rear window lower trim.

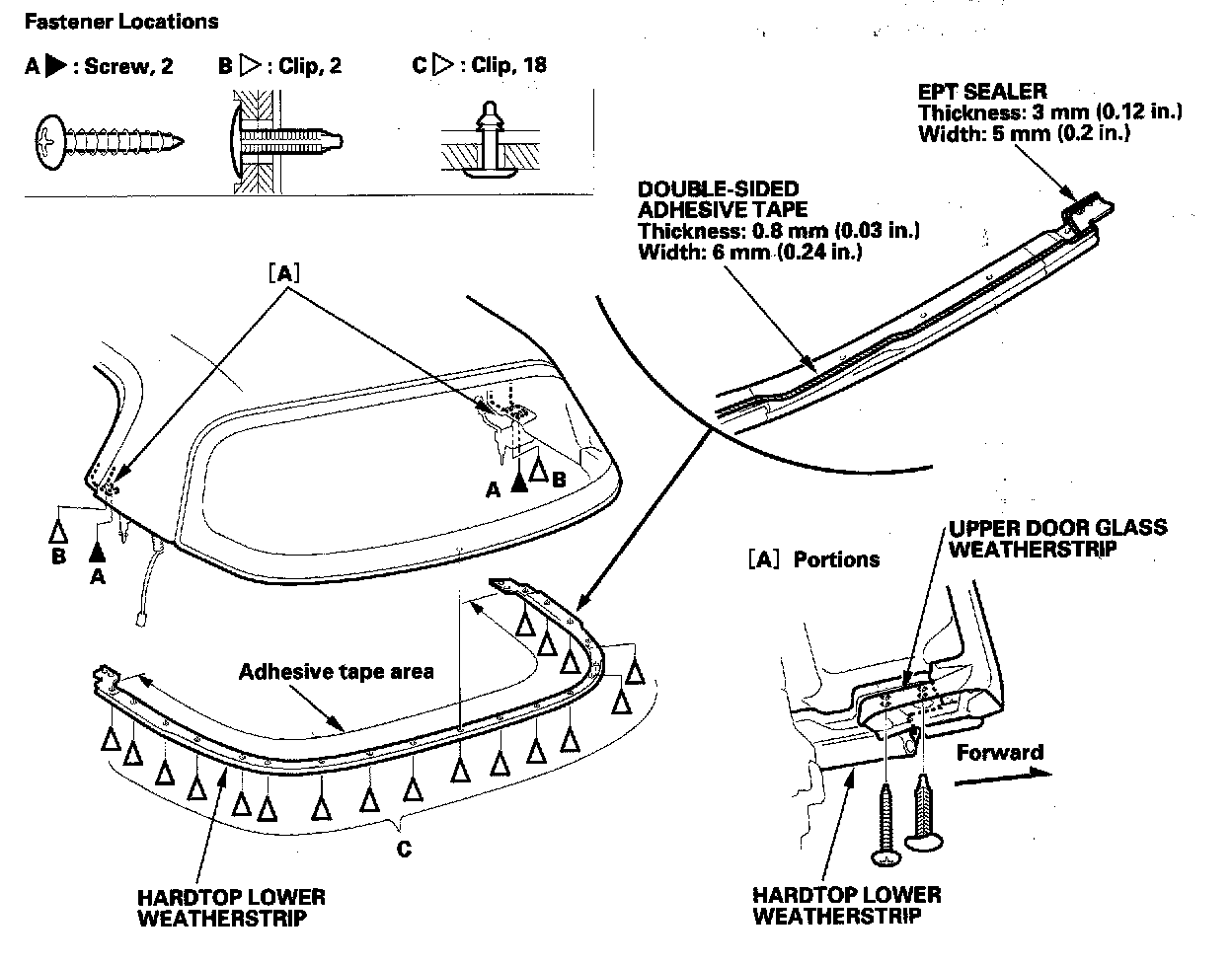

2. Remove the hardtop lower weatherstrip as shown.
3. Install the weatherstrip in the reverse order of removal, and note these items:
- Before installing the weatherstrip, clean the roof bonding surface with alcohol.
- If the old weatherstrip will be installed, scrape off the double-sided adhesive tape, then clean the weatherstrip surface with alcohol. Attach new double-sided adhesive tape to the weatherstrip.
- Check for damaged or stress-whitened clips, and replace them with new ones.
- Push the clips into place securely.
- Before installing the weatherstrip, fold the edge of the adhesive backing from the double-sided adhesive tape. After installing the weatherstrip, carefully pull the adhesive backing away.
- Press the double-sided adhesive tape portion to make the adhesive stick.
