Trunk Lid Weatherstrip Replacement

Trunk Lid Weatherstrip Replacement

1. Remove the trunk lid weatherstrip by pulling it off.

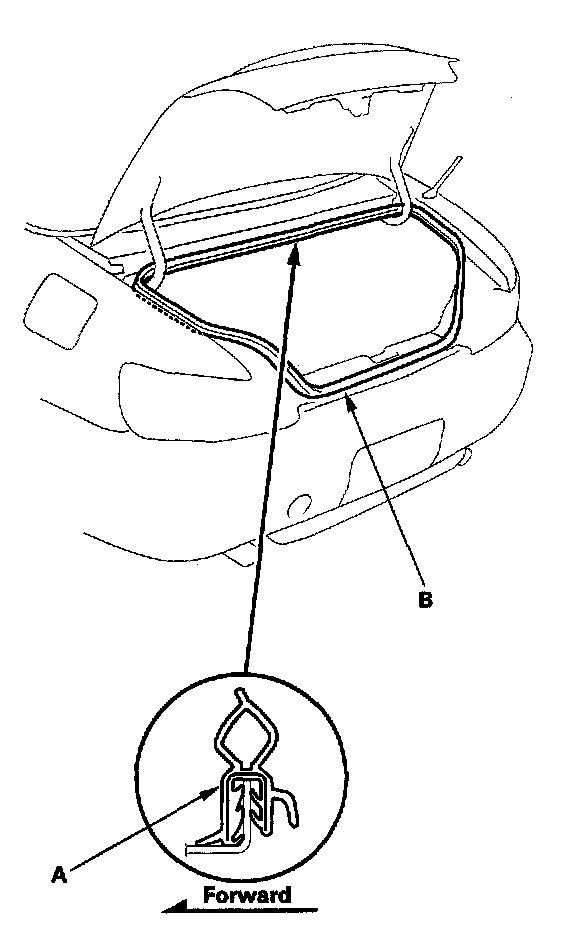

2. Locate the painted alignment mark (A) on the trunk lid weatherstrip (B). Align the painted mark with the alignment tab in the center of the trunk, and install the weatherstrip all the way around facing in the direction shown. Make sure there are no wrinkles in the weatherstrip.
3. Check for water leaks.
