Rocker Arm Assembly Removal
Rocker Arm Assembly Removal 1.
Remove the cylinder head cover.
2.

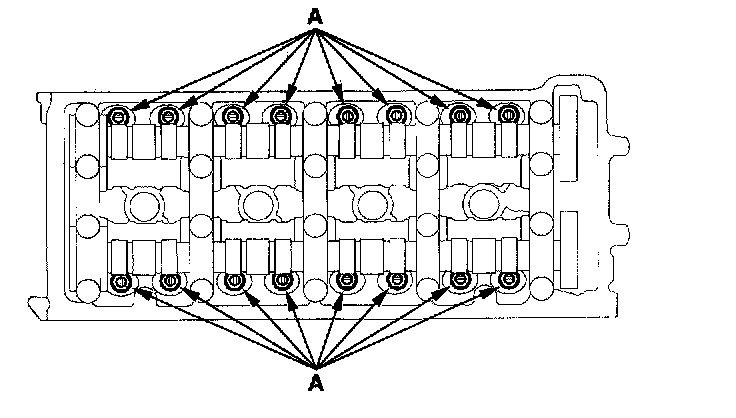

Loosen the rocker arm adjusting screws (A).
3.
Remove the
camshaft holders and camshafts. To prevent damaging the camshafts, unscrew the camshaft holder bolts two turns at a time, in a crisscross pattern.
4.
Insert the bolts (A) into the rocker shaft holder, then remove the
rocker arm assembly (B).
