Reading and Clearing Diagnostic Trouble Codes

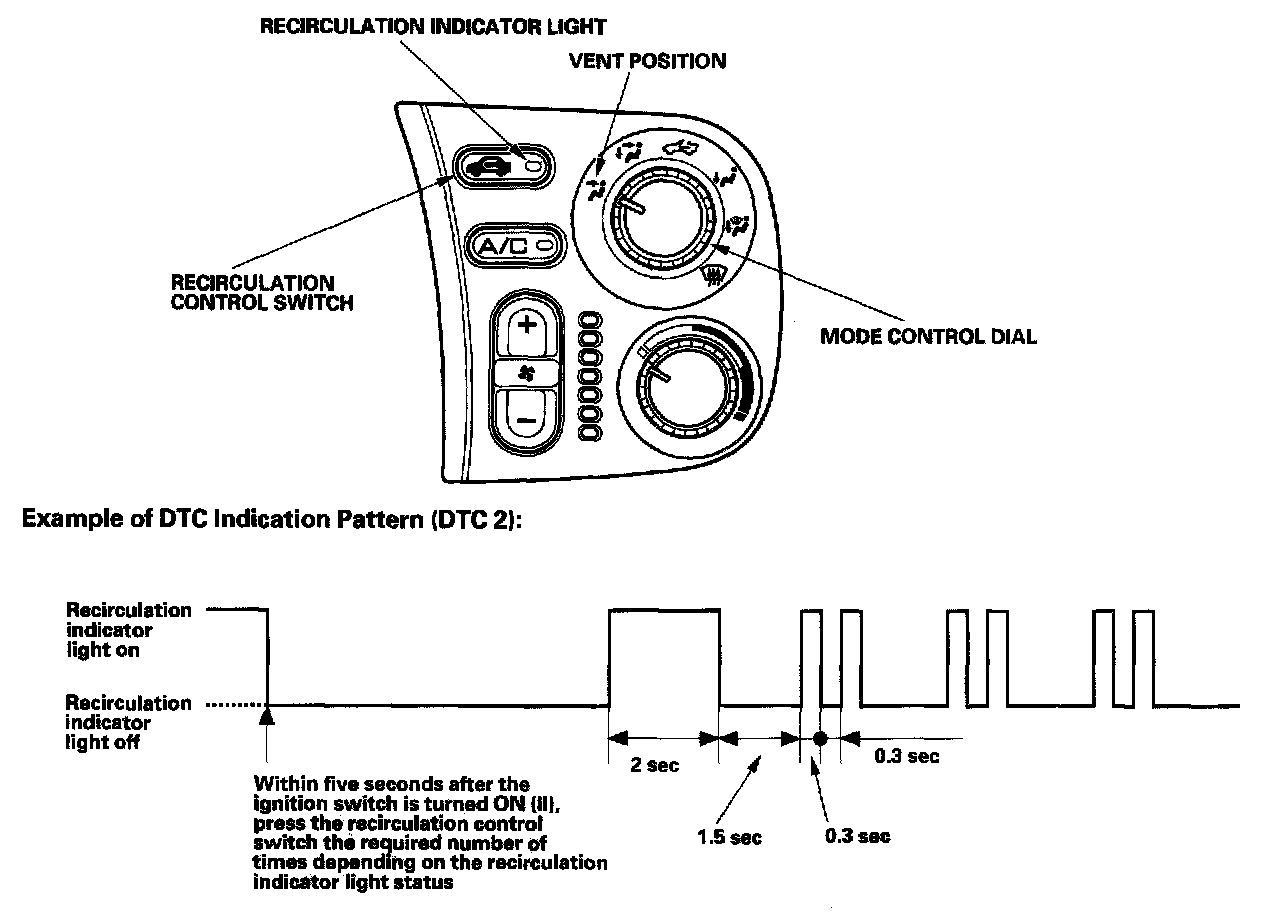

How to Retrieve a DTCThe heater control panel has a self-diagnostic function. To run the self-diagnostic function, do the following:
1. Set the mode control dial on the Vent position.
2. Turn the ignition switch ON (II).
3. Within 5 seconds after turning the ignition switch on, press the recirculation control switch the required number of times depending on the recirculation indicator status:
- If the indicator is ON, press the recirculation control switch 5 times.
- If the indicator is OFF, press the recirculation control switch 6 times.
The recirculation indicator will come on for 2 seconds, then blink the Diagnostic Trouble Code (DTC) to indicate a faulty component. If no DTCs are found, the indicator will not blink after the initial 2 seconds light.
Canceling the Self-diagnostic Function
4. Turn the ignition switch OFF to cancel the self-diagnostic function. After completing repair work, run the self-diagnostic function again to make sure that there are no other malfunctions.
