Taillight Replacement

Taillight Replacement

1. Open the trunk lid and pull back the trunk trim panel.

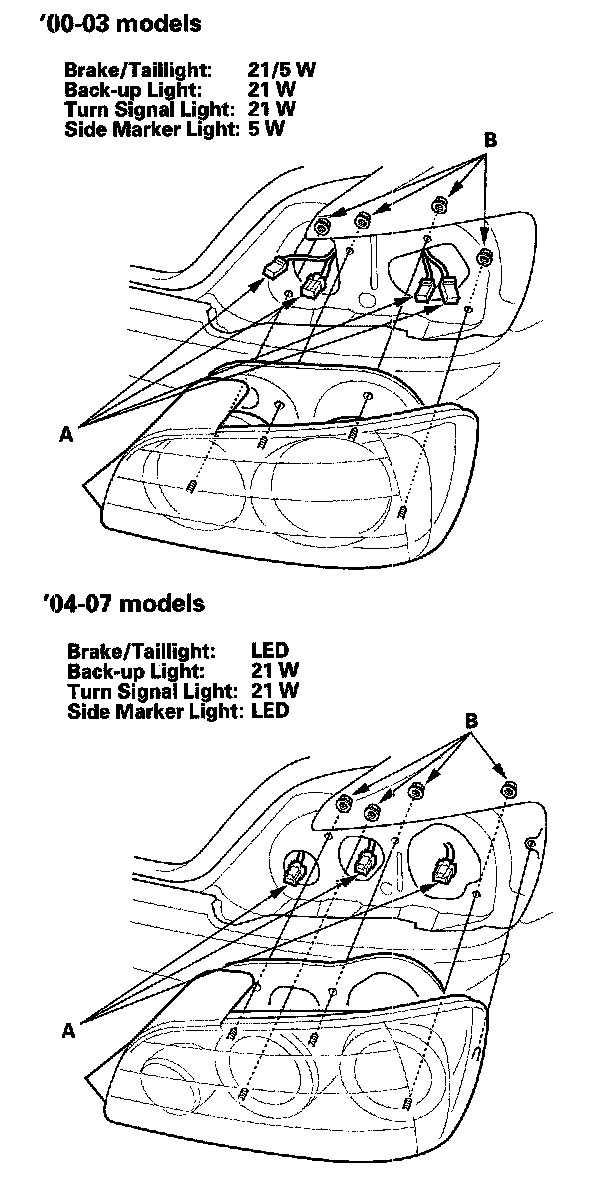

2. Disconnect the connectors (A) from the taillight.
3. Remove the four mounting nuts (B), then pull out the taillight.
4. Before installing the taillight, check the gasket. If it is distorted or stays compressed, replace it.
5. Install the taillight in the reverse order of removal.
6. After installing the taillight, run water over it to make sure it does not leak.
