Trunk Lid Latch Switch Test
Trunk Lid Latch Switch Test 1.
Open the trunk lid.
2.

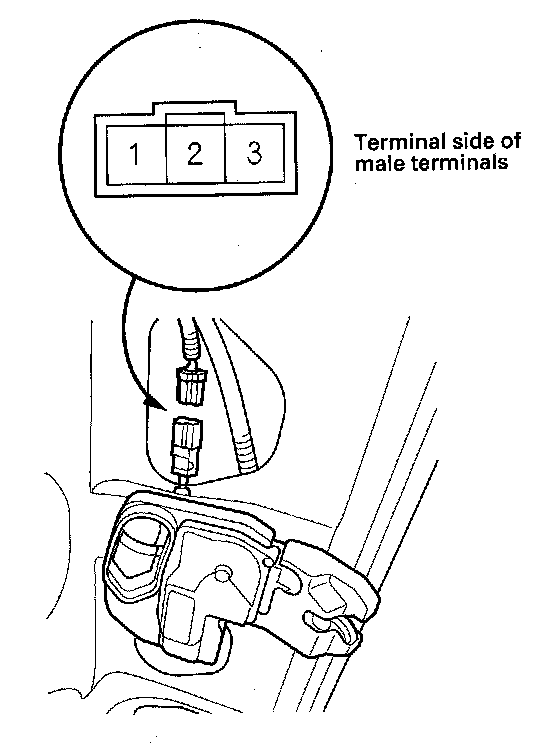

Disconnect the 3P connector from the trunk lid latch.
3.
Check for continuity between the terminals in each trunk lid position according to the table.
4.
If the continuity is not as specified, replace the trunk lid latch.
