Hazard Warning Switch Test
Hazard Warning Switch Test 1.
Remove the center console.
2.

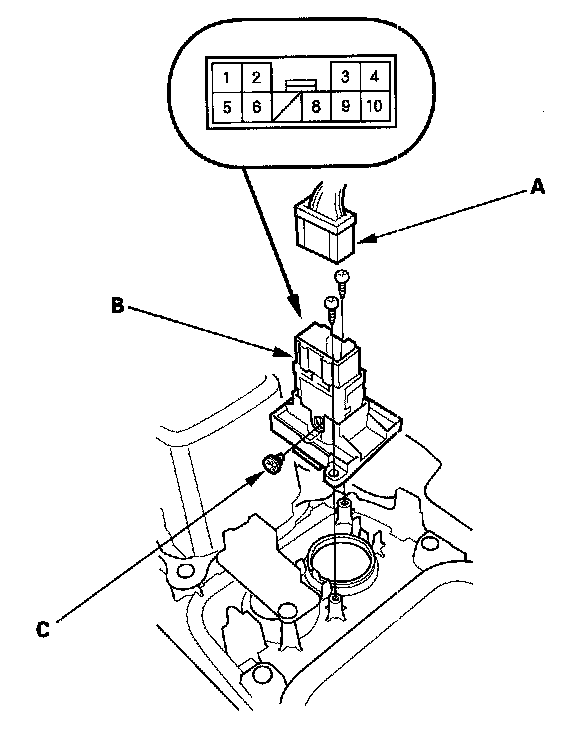

Disconnect the 10P connector (A) from the
hazard warning switch (B).
3.
Remove the two screws and the
hazard warning switch.
4.

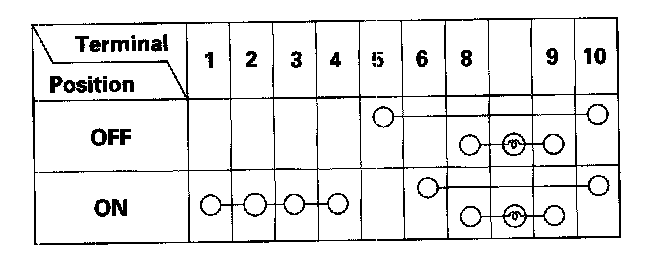

Check for continuity between the terminals in each switch position according to the table.
5.
If the continuity is not as specified, replace the illumination bulb (C) or the switch.
