Fuel Pressure Regulator: Service and Repair

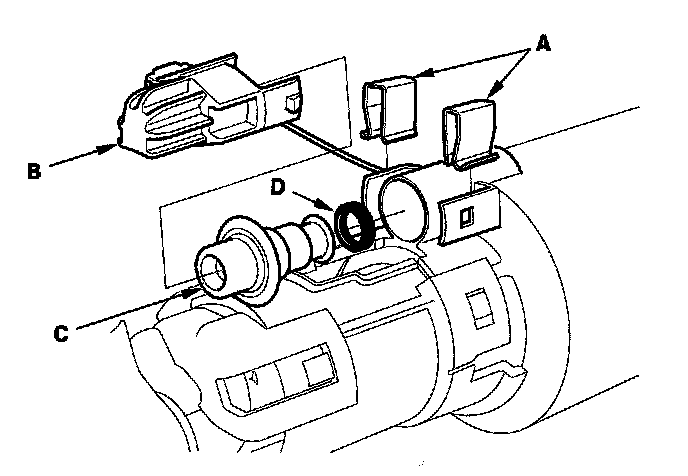

Fuel Pressure Regulator Replacement 1.
Remove the
fuel tank unit.
2.
Remove the clips (A).
3.
Remove the holder (B).
4.
Remove the fuel pressure regulator (C).
5.
Install the parts in the reverse order of removal with a new O-ring (D) and new clips.
NOTE: Coat the O-ring with clean engine oil.
