Differential Breather Box Replacement

Differential Breather Box Replacement

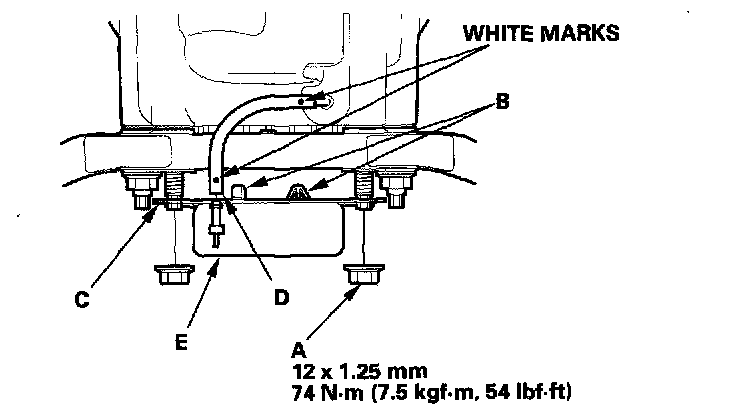

1. Remove the two differential mount bracket B mounting nuts (A).
2. Remove the clips (B), then remove the differential breather box from the differential breather box bracket (C). Then remove the breather box stay.
3. Disconnect the breather box tube (D) from the differential breather box (E) side.
4. Remove the differential breather box tube from the rear differential.
5. Install the differential breather box tube to the rear differential,
6. Install the differential breather box bracket.
7. Connect the differential breather box tube. Make sure the white marks on the tube come upside.
8. Install the differential breather box.
9. Install the four differential mount bracket B mounting nuts.
