M/T

DTC P0103: Mass Airflow (MAF) Sensor Circuit High Voltage






General Description

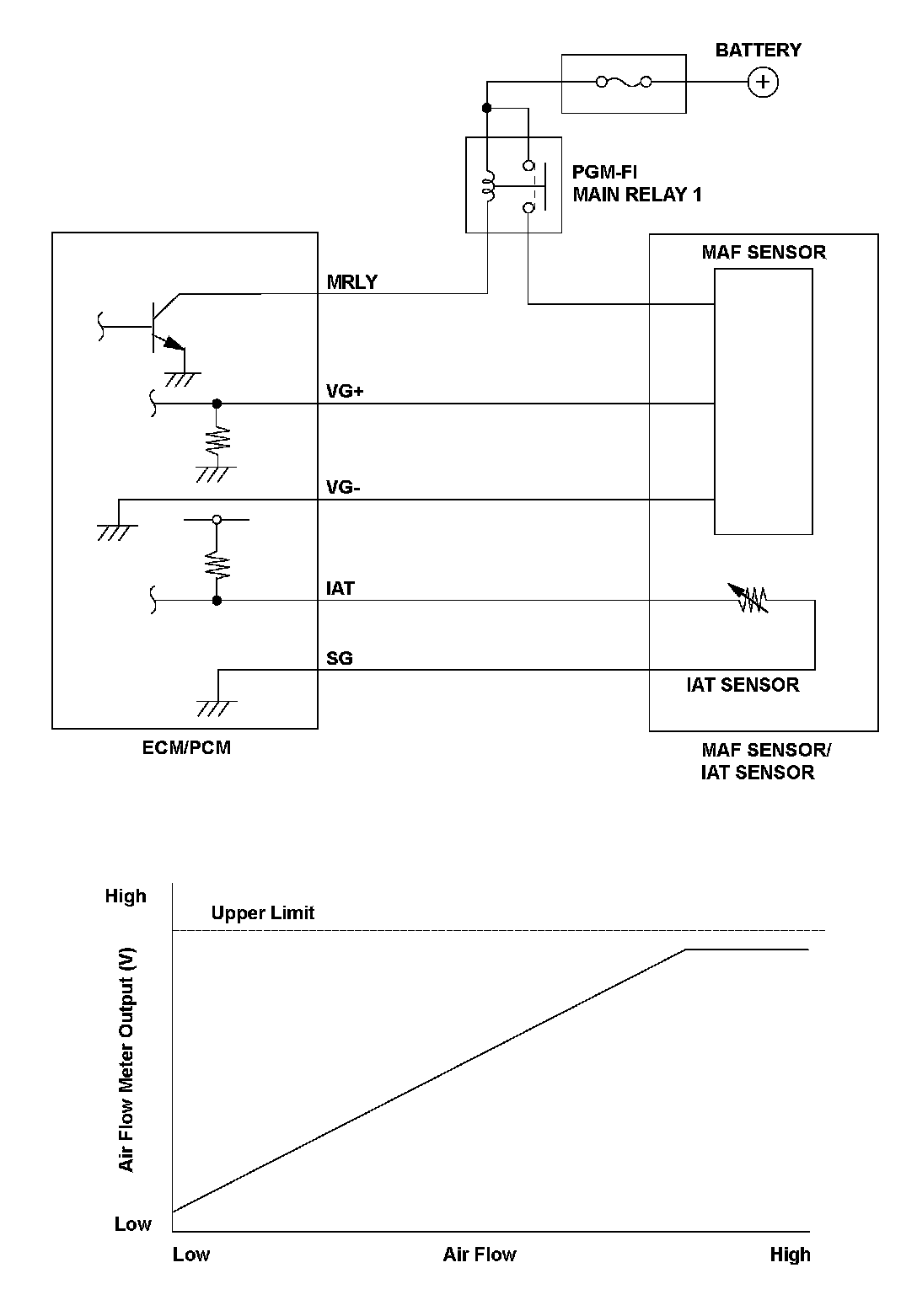

The mass air flow (MAF) sensor is attached to the intake air passage, and it measures the amount of intake airflow. The MAF sensor is a hot wire air flow meter. The airflow cools the electrically heated wire that is mounted in the air passage. The engine control module (ECM)/powertrain control module (PCM) determines the amount of intake air flow by detecting the current that is required to keep the hot wire at a constant temperature. The upper limit of the MAF sensor output is specified. If the output is above that limit, the ECM/PCM detects a malfunction and stores a DTC.

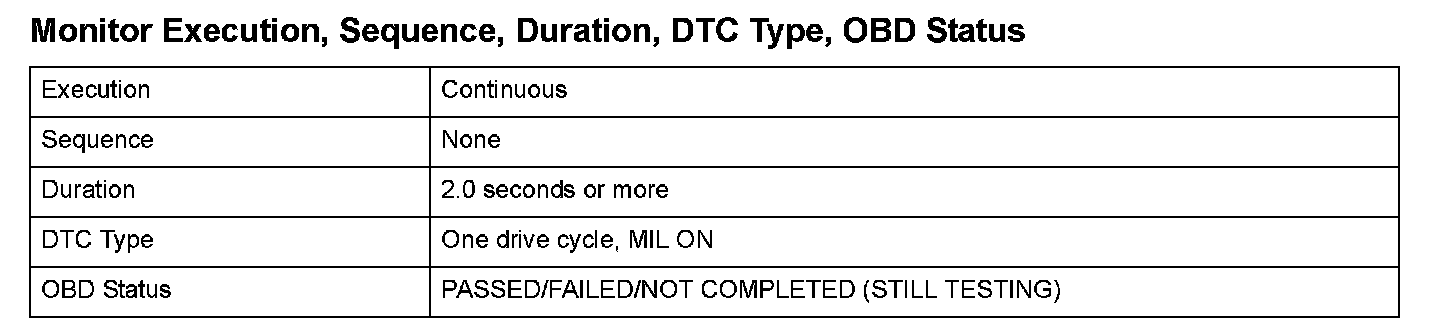

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

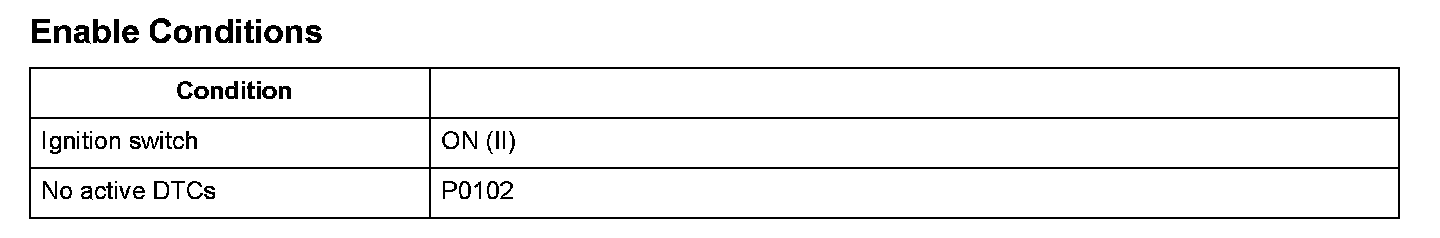

Enable Conditions






Malfunction Threshold

The MAF sensor output voltage is 4.89 V or more for at least 2.0 seconds.

Diagnosis Details

Conditions for illuminating the MIL
When a malfunction is detected, the MIL comes on and the DTC and the freeze frame data are stored in the ECM/PCM memory.

Conditions for clearing the MIL
The MIL will be cleared if the malfunction does not recur during three consecutive trips in which the diagnostic runs. The MIL, the DTC, and the freeze frame data can be cleared by using the scan tool Clear command or by disconnecting the battery.
