DTC P2185: Engine Coolant Temperature (ECT) Sensor 2 Circuit High Voltage






General Description

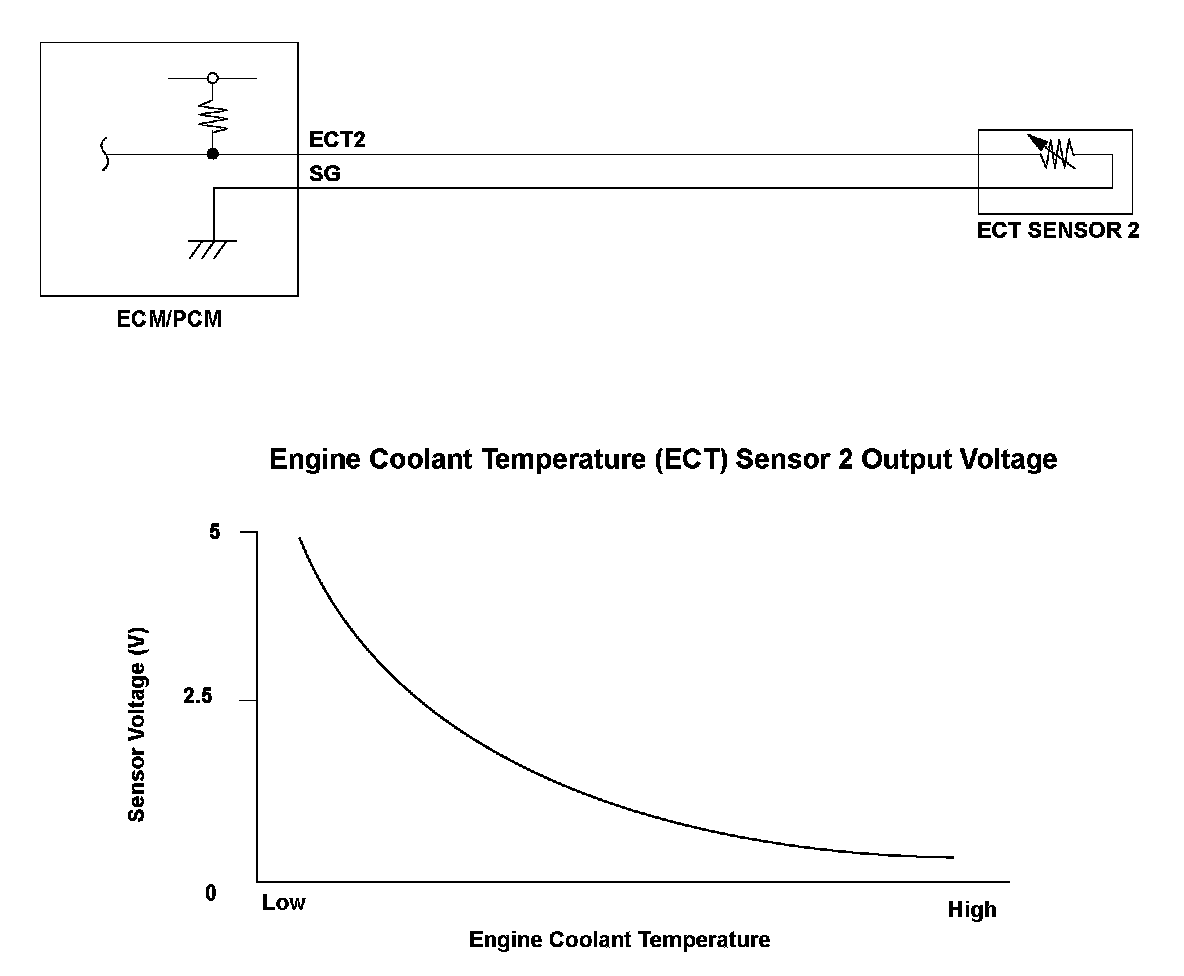

Engine coolant temperature (ECT) sensor 2 is a thermistor attached to the radiator. The engine control module (ECM)/powertrain control module (PCM) applies voltage (about 5 V) to the ECT2 signal circuit through a pull up resistor. As the engine coolant temperature cools, ECT sensor 2 resistance increases, and the ECM/PCM detects a high signal voltage. As the engine coolant warms, the sensor resistance decreases, and the ECM/PCM detects a low ECT2 signal voltage. If the ECT sensor 2 output voltage is more than a set value when the engine coolant temperature is low, the ECM/PCM detects a malfunction and a DTC is stored.

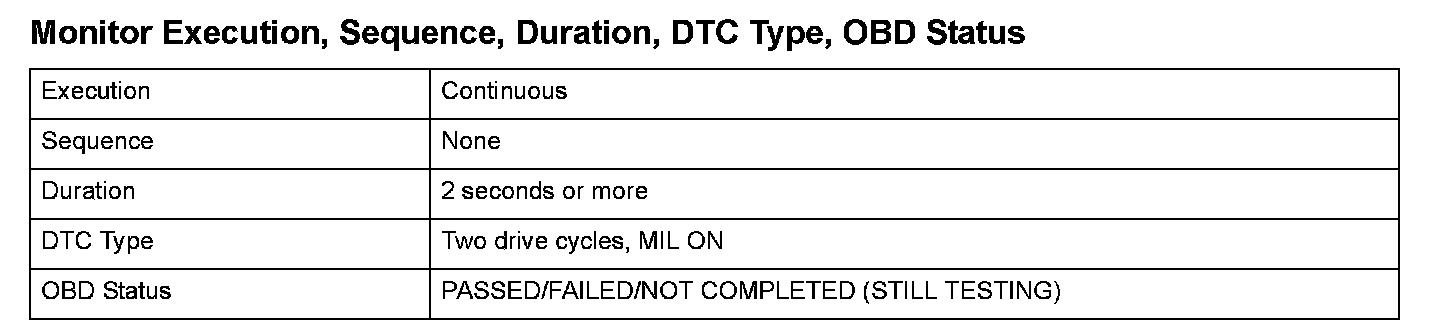

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

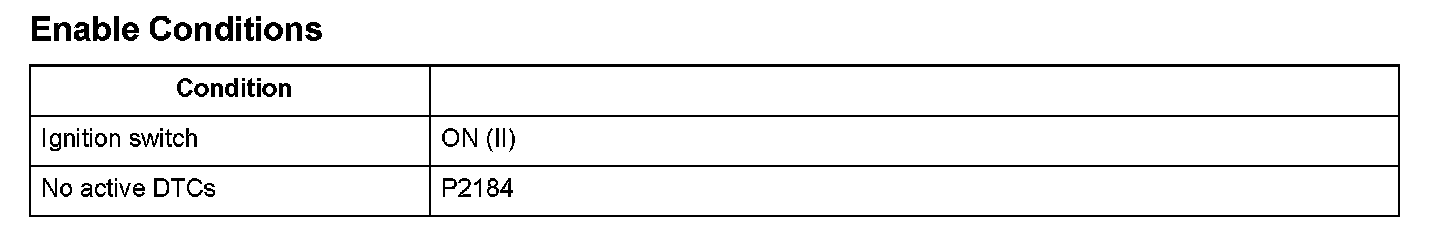

Enable Conditions






Malfunction Threshold

The ECT sensor 2 output voltage is 4.92 V or more for at least 2 seconds.

Diagnosis Details

Conditions for illuminating the MIL
When a malfunction is detected during the first drive cycle, a Temporary DTC is stored in the ECM/PCM memory. If the malfunction recurs during the next (second) drive cycle, the MIL comes on and the DTC and the freeze frame data are stored.

Conditions for clearing the MIL
The MIL will be cleared if the malfunction does not recur during three consecutive drive cycles in which the engine conditions are similar to the first time the malfunction was detected. The MIL, the DTC, the Temporary DTC, and the freeze frame data can be cleared by using the scan tool Clear command or by disconnecting the battery.
