System Diagram

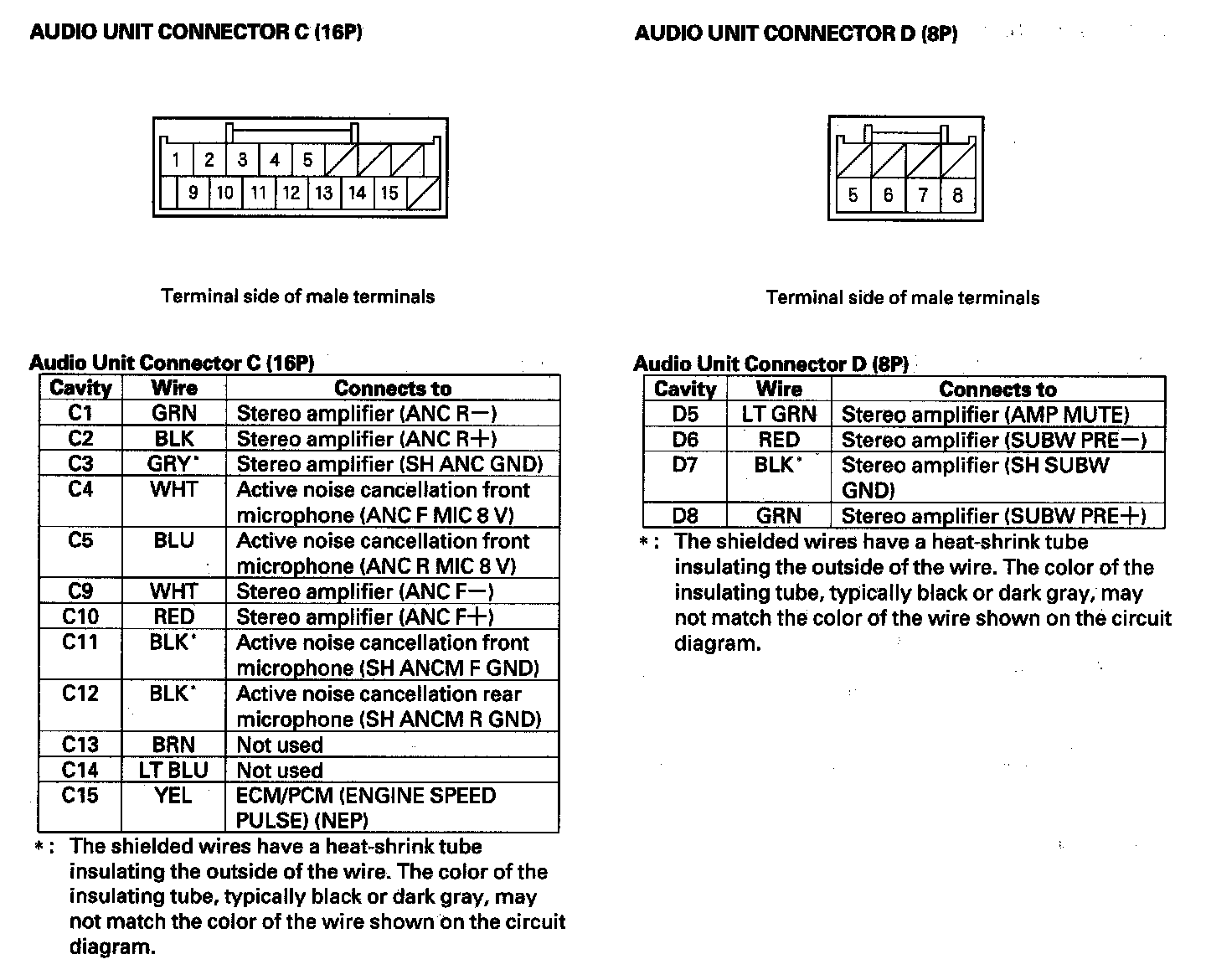

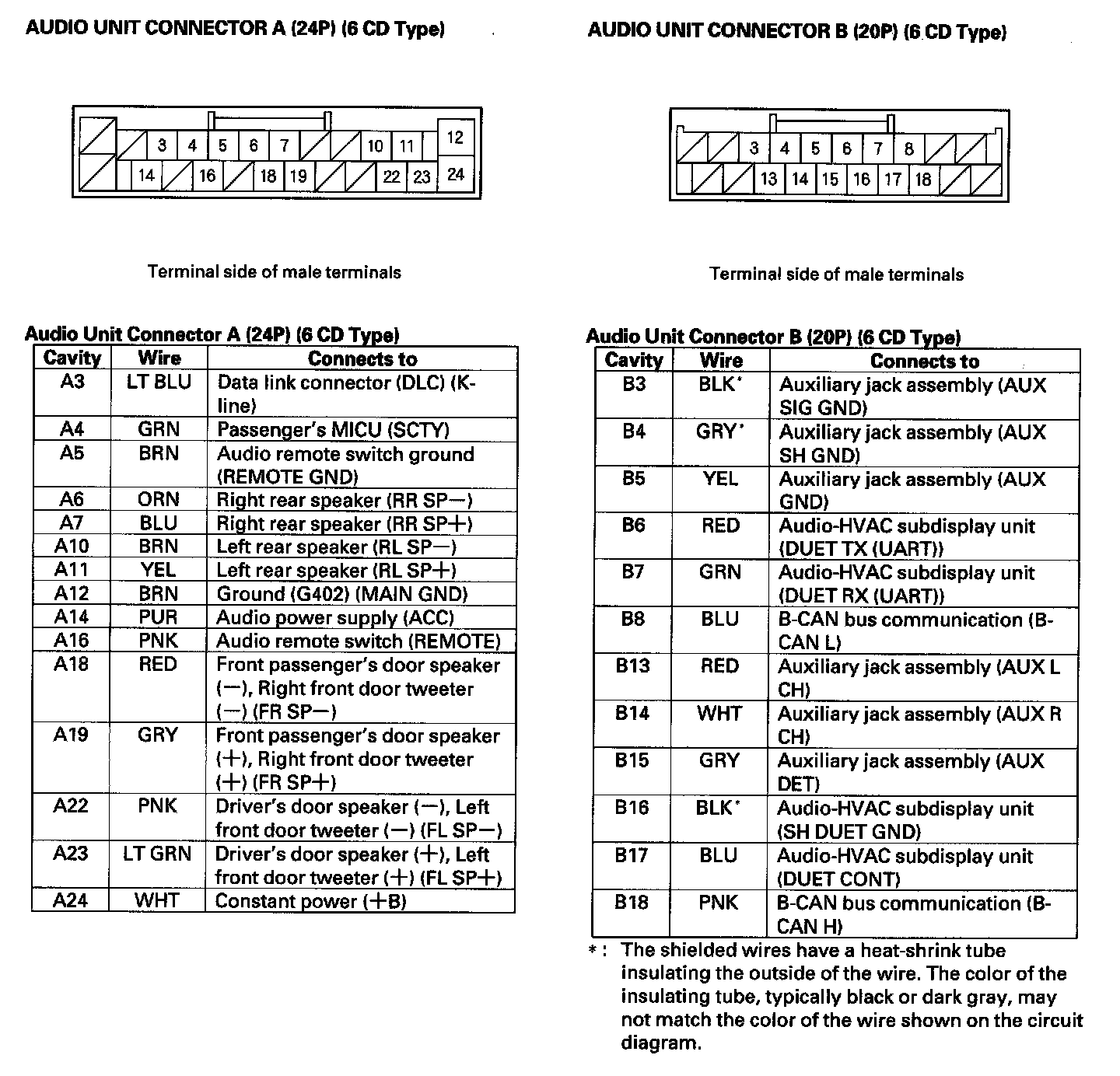

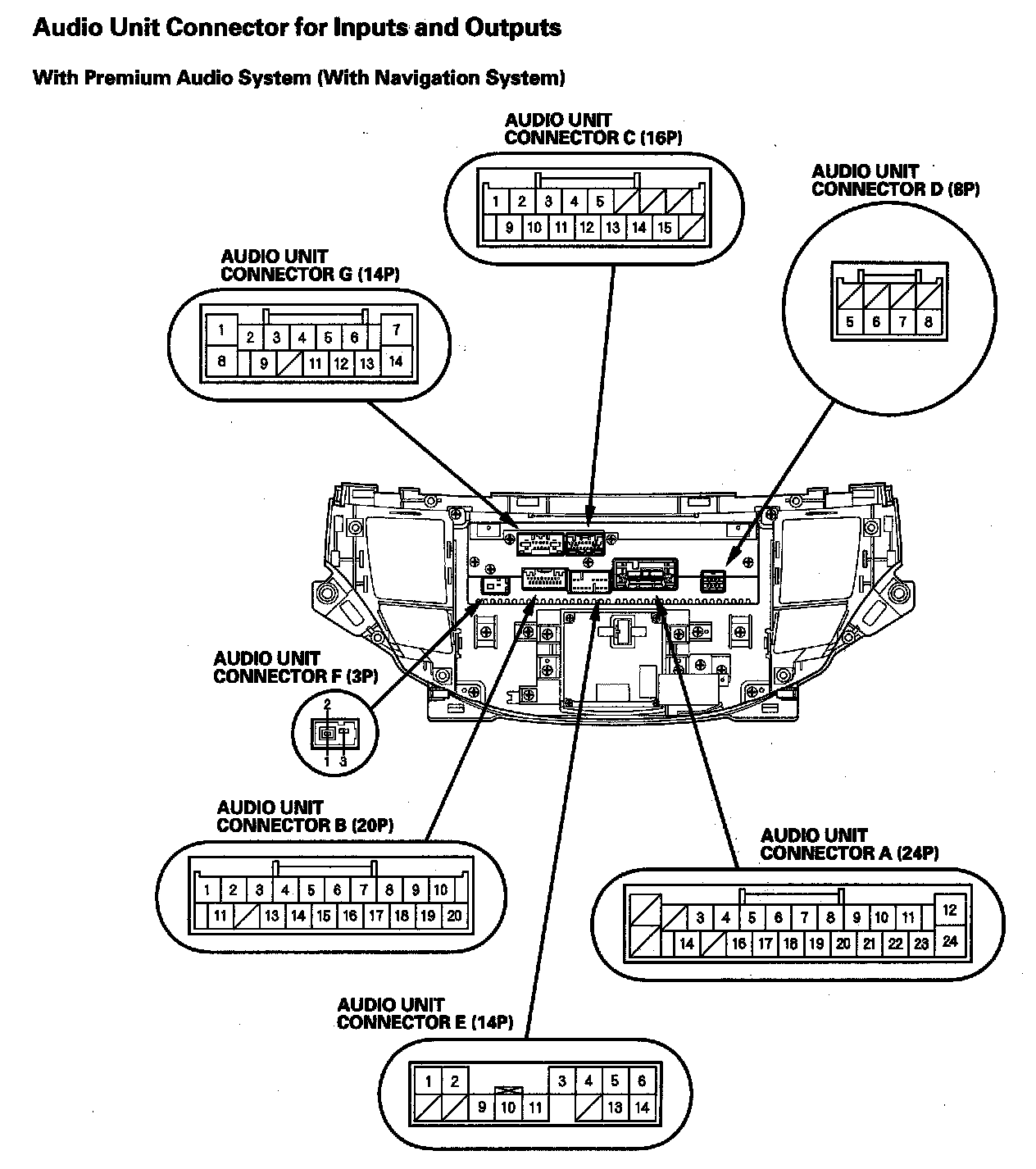

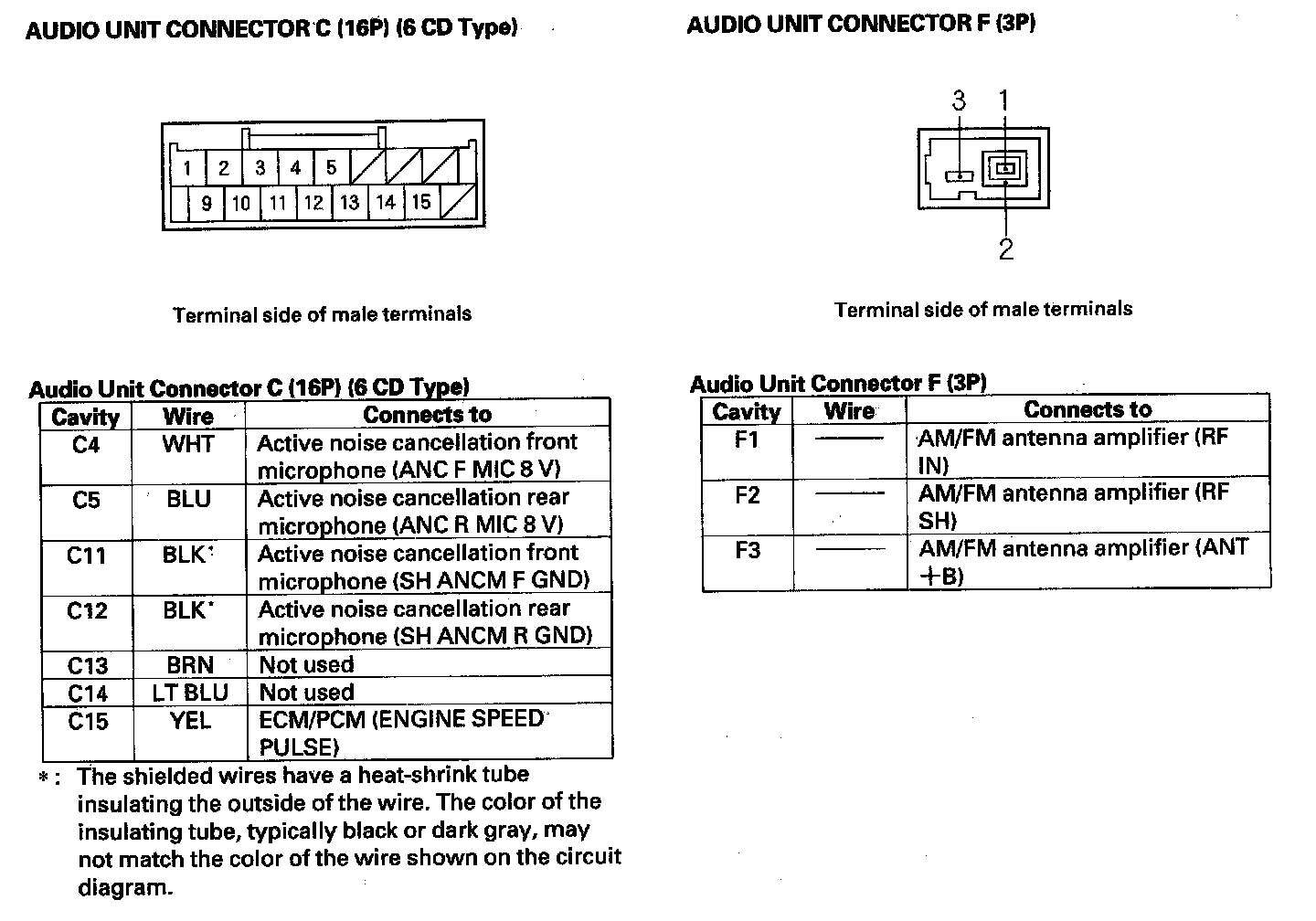

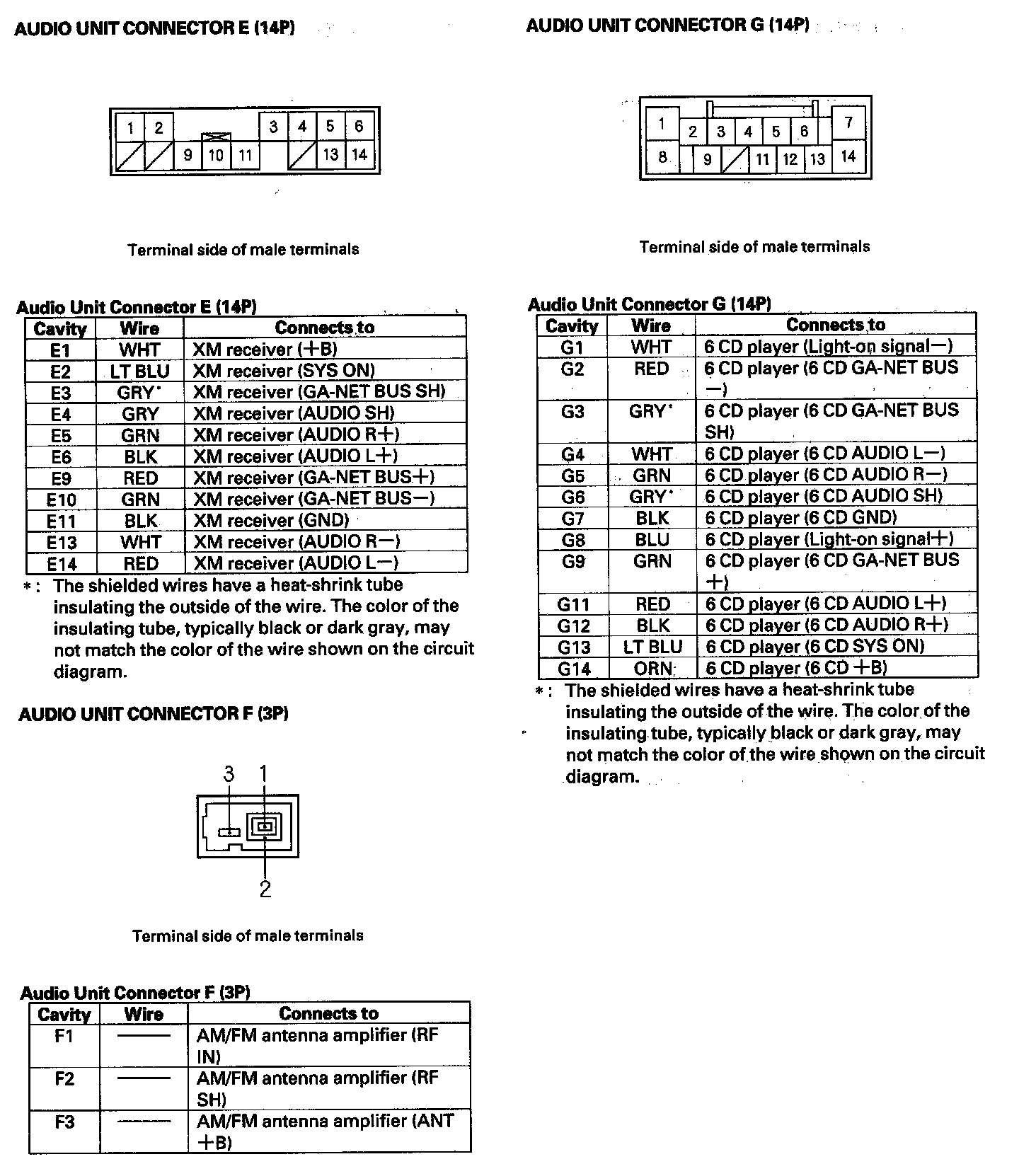

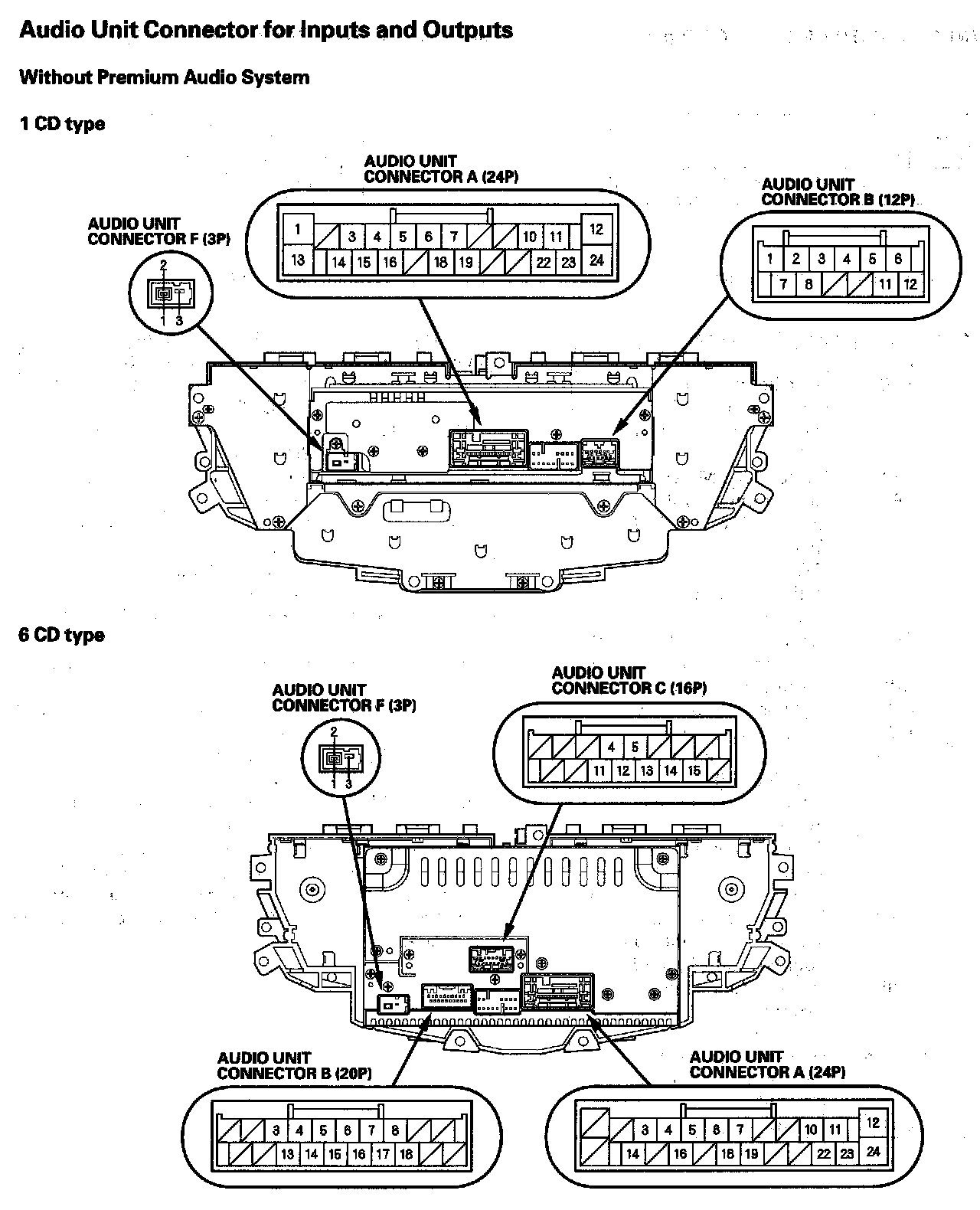

Audio Unit Connector For Inputs And Outputs (Part 1):

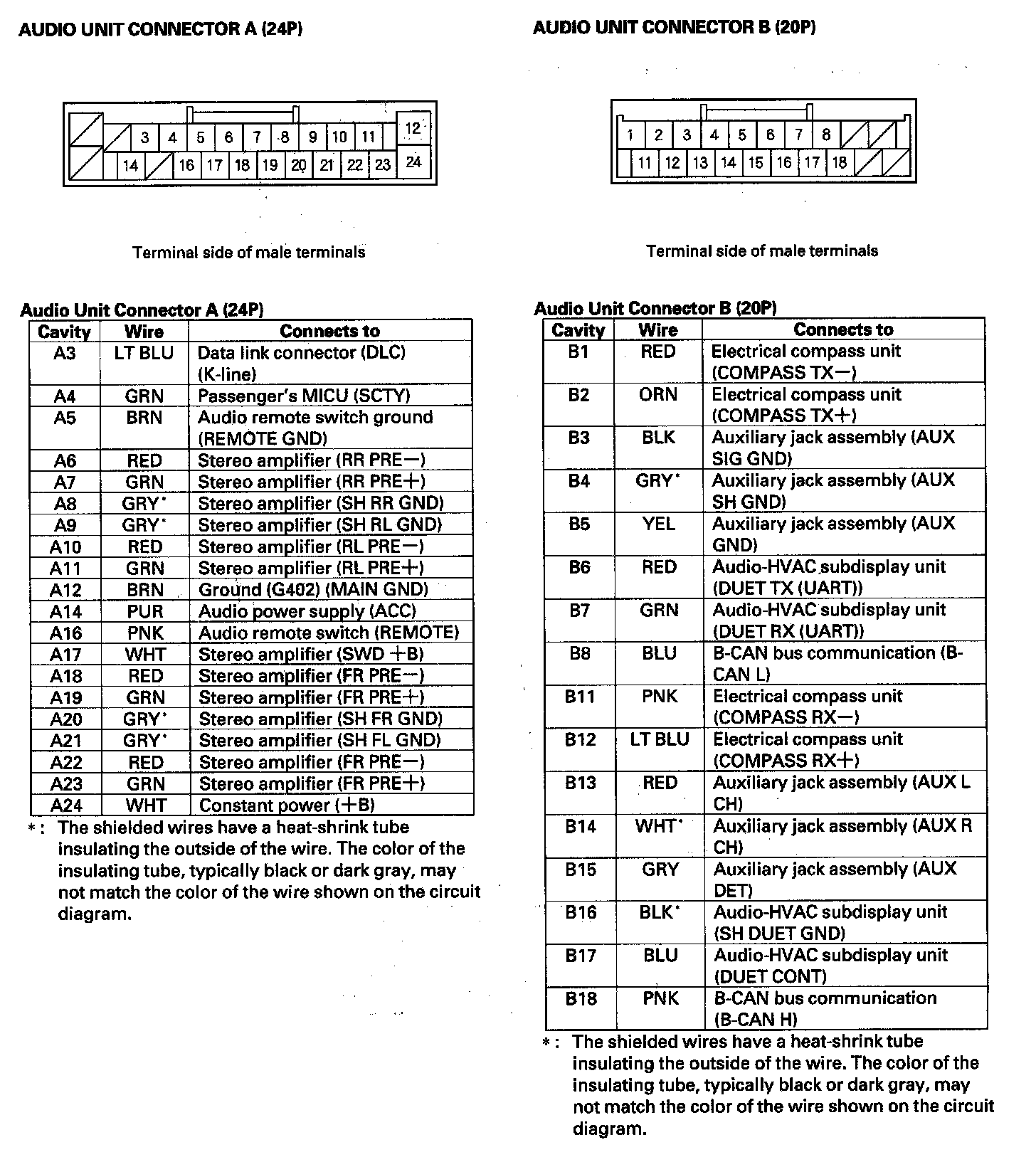

Audio Unit Connector For Inputs And Outputs (Part 2):

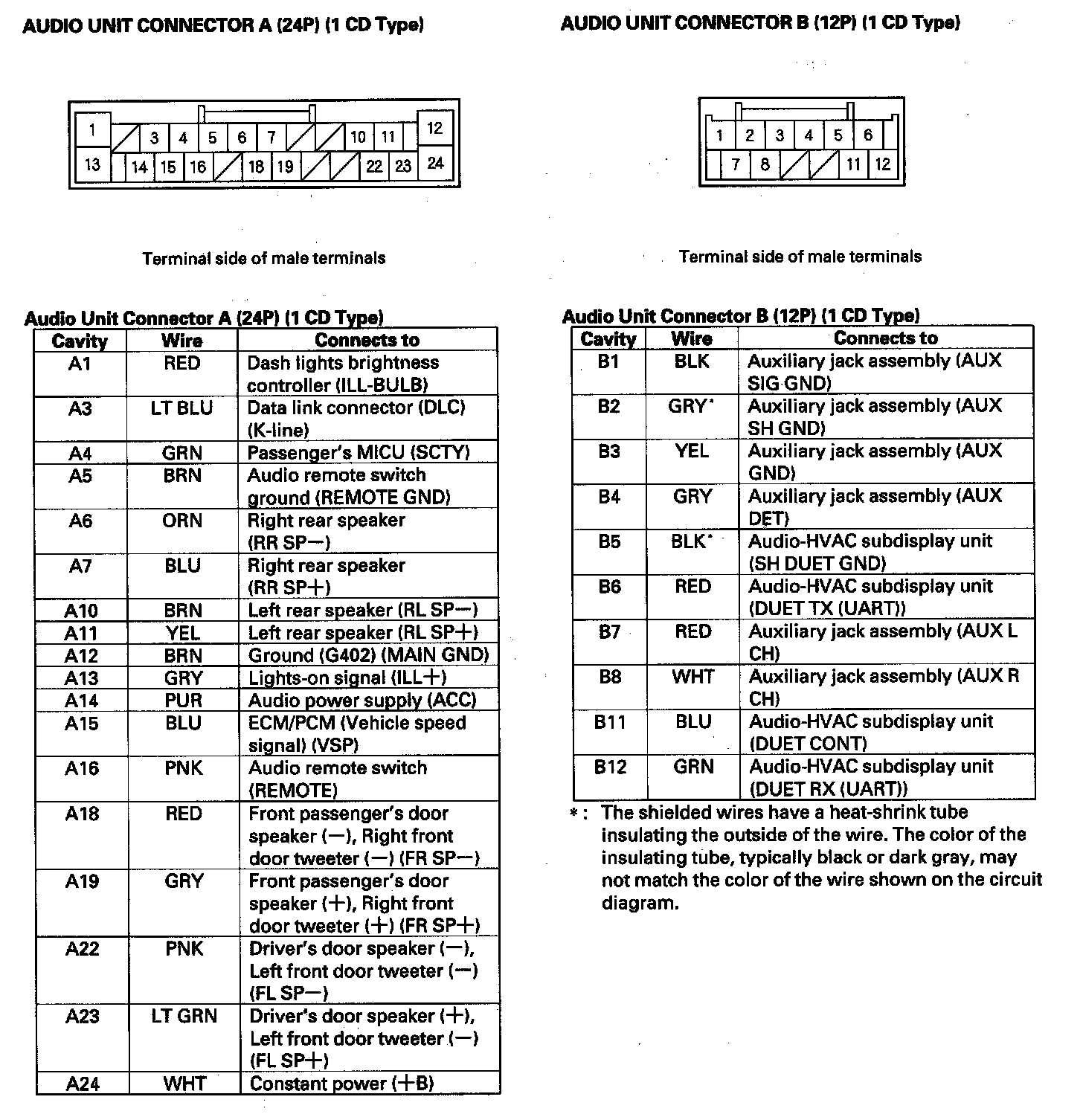

Audio Unit Connector For Inputs And Outputs (Part 3):

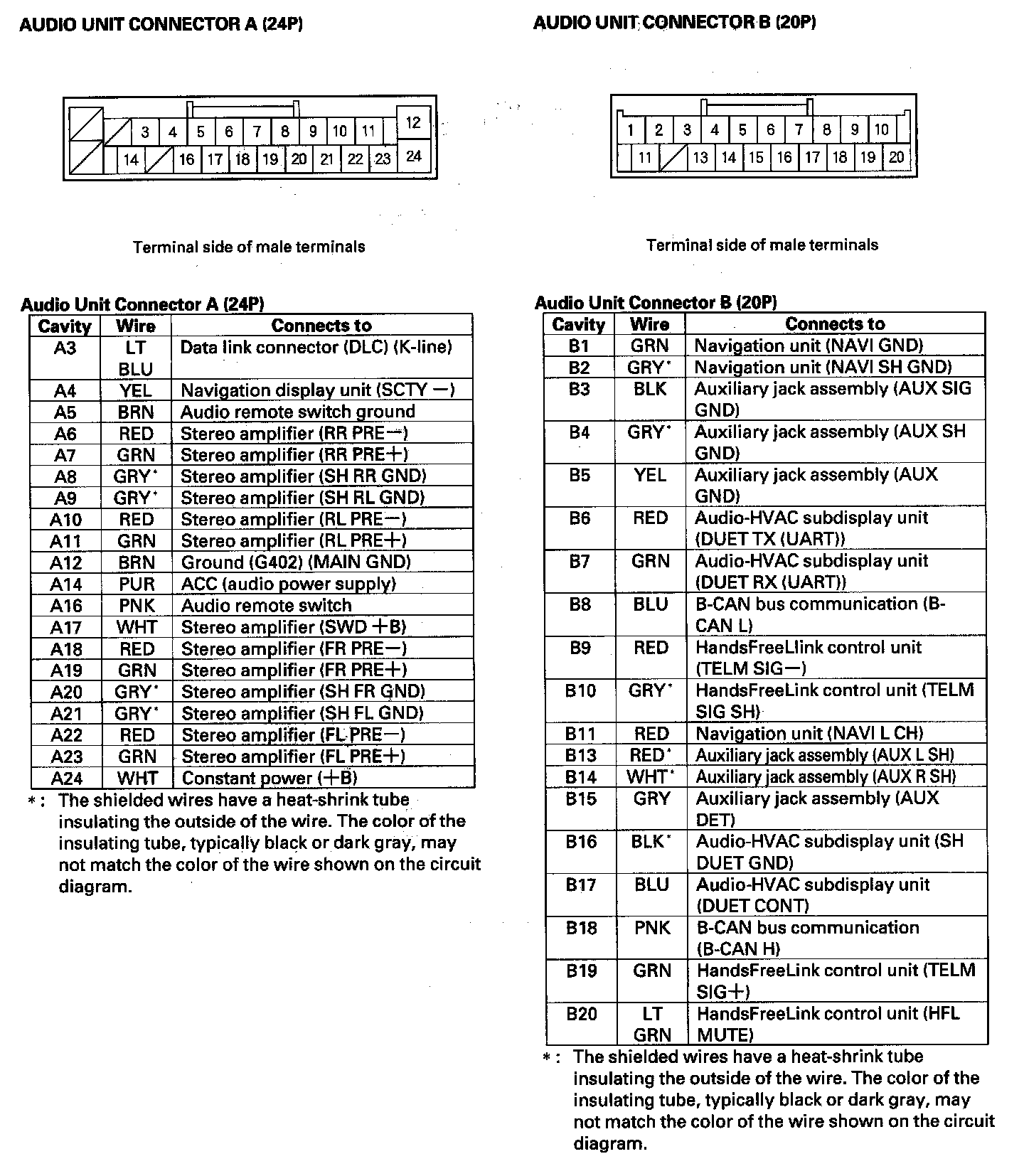

Audio Unit Connector For Inputs And Outputs (Part 4):

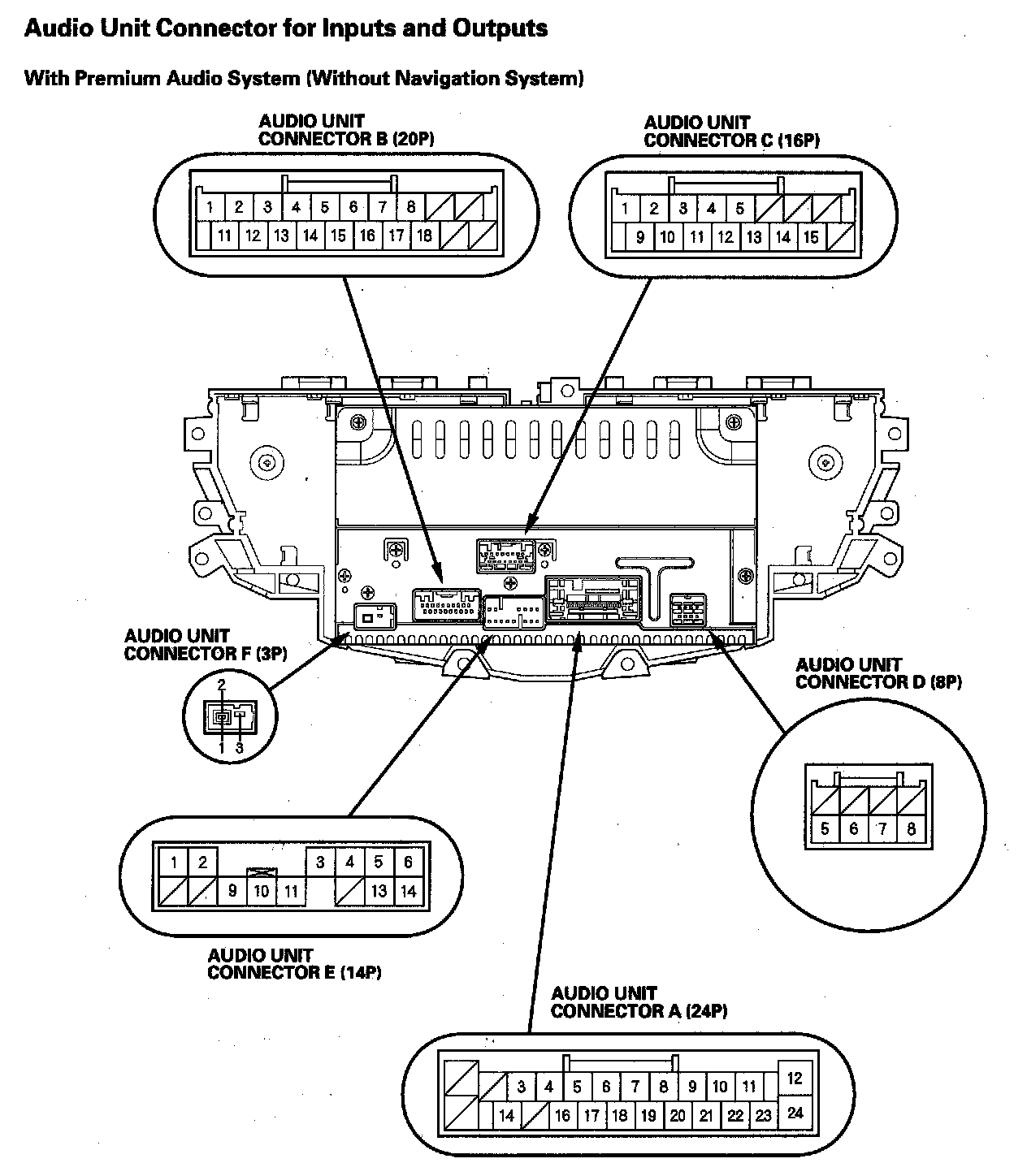

Audio Unit Connector For Inputs And Outputs (Part 5):

Audio Unit Connector For Inputs And Outputs (Part 6):

Audio Unit Connector For Inputs And Outputs (Part 7):

Audio Unit Connector For Inputs And Outputs (Part 8):

Audio Unit Connector For Inputs And Outputs (Part 9):

Audio Unit Connector For Inputs And Outputs (Part 10):

Audio Unit Connector For Inputs And Outputs (Part 11):

Audio Unit Connector For Inputs And Outputs (Part 12):

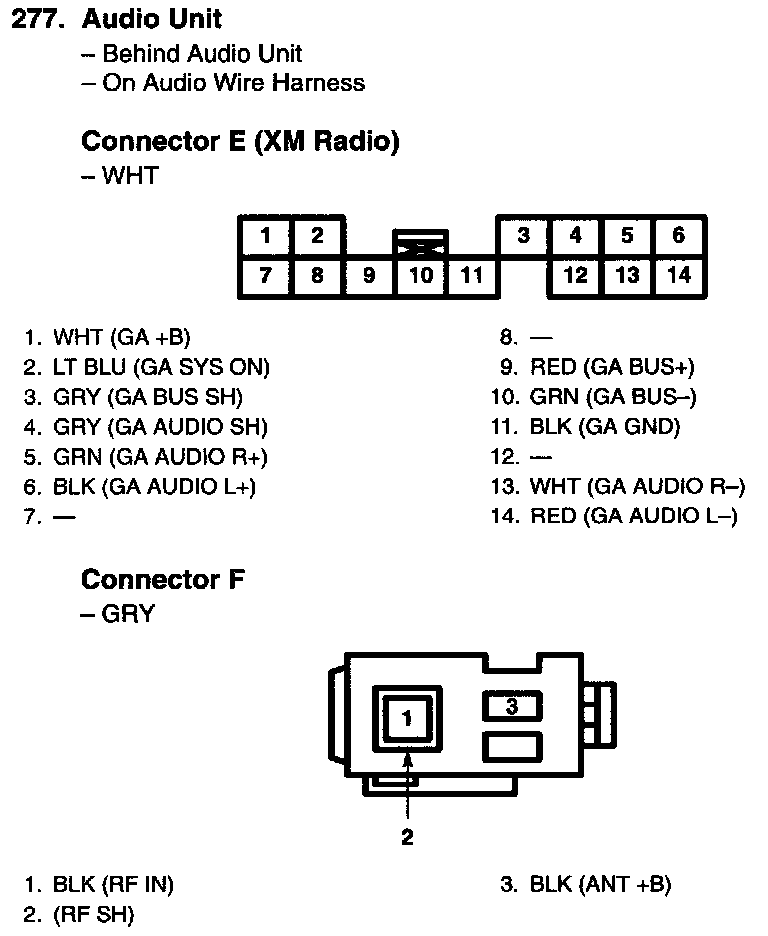

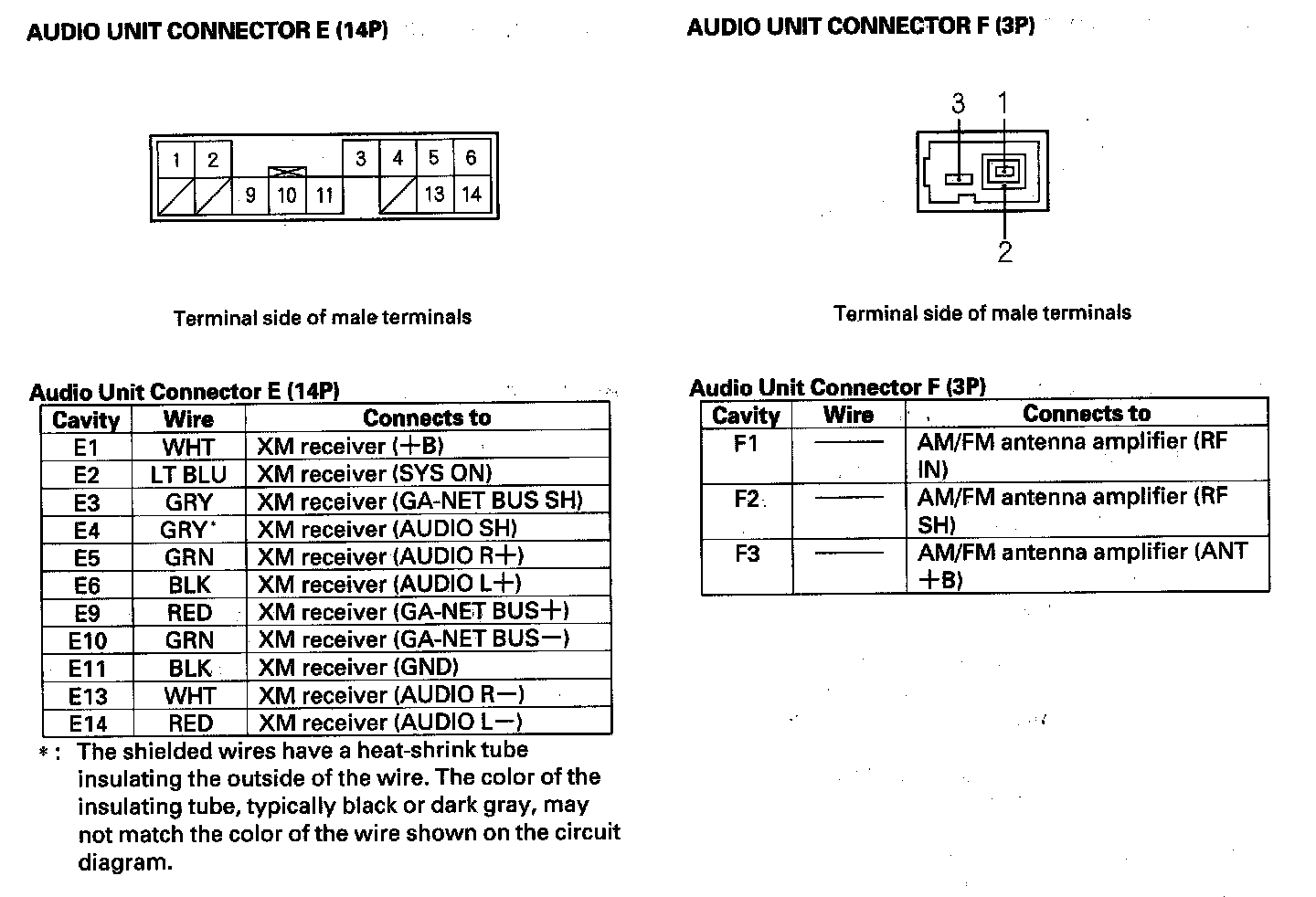

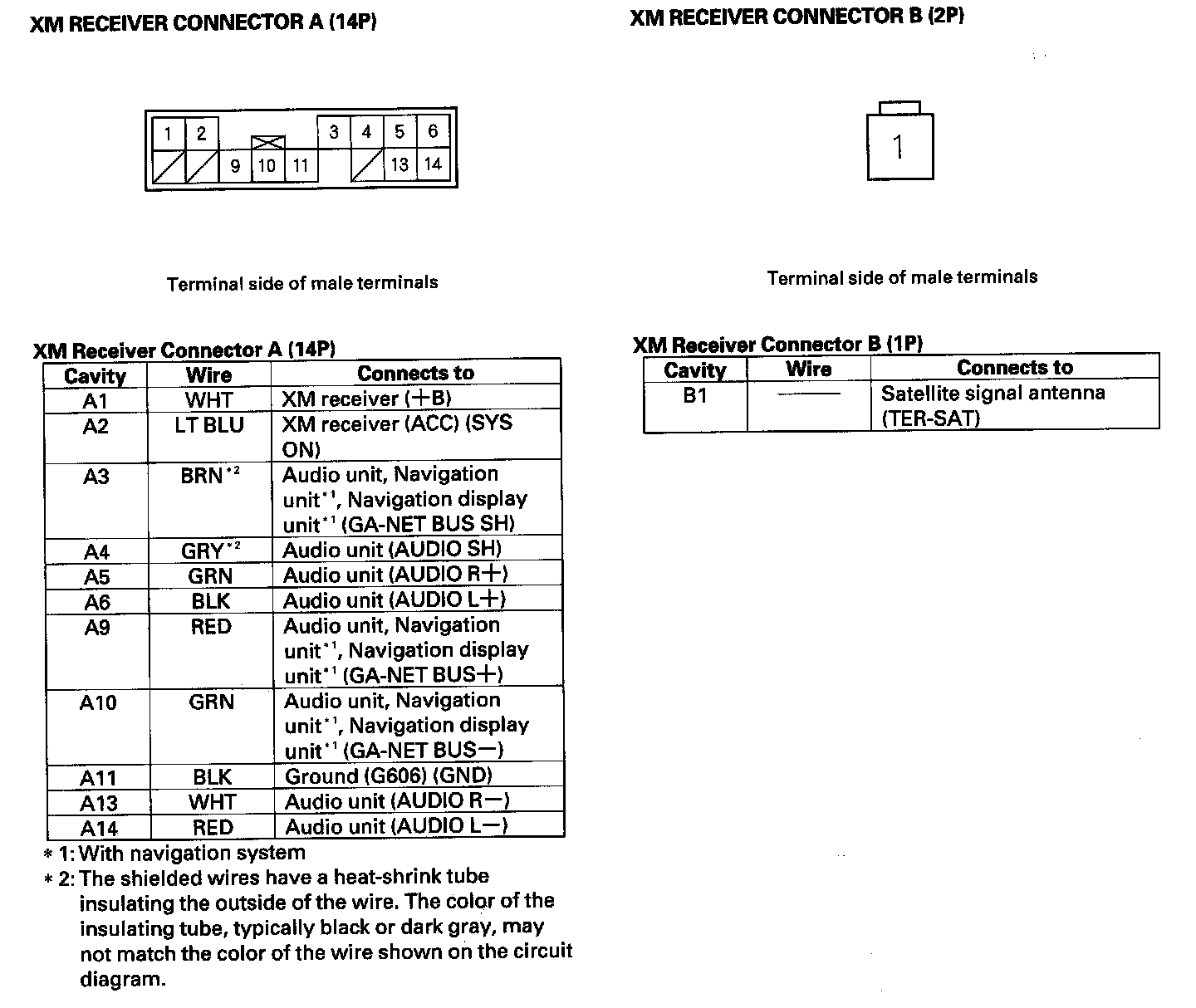

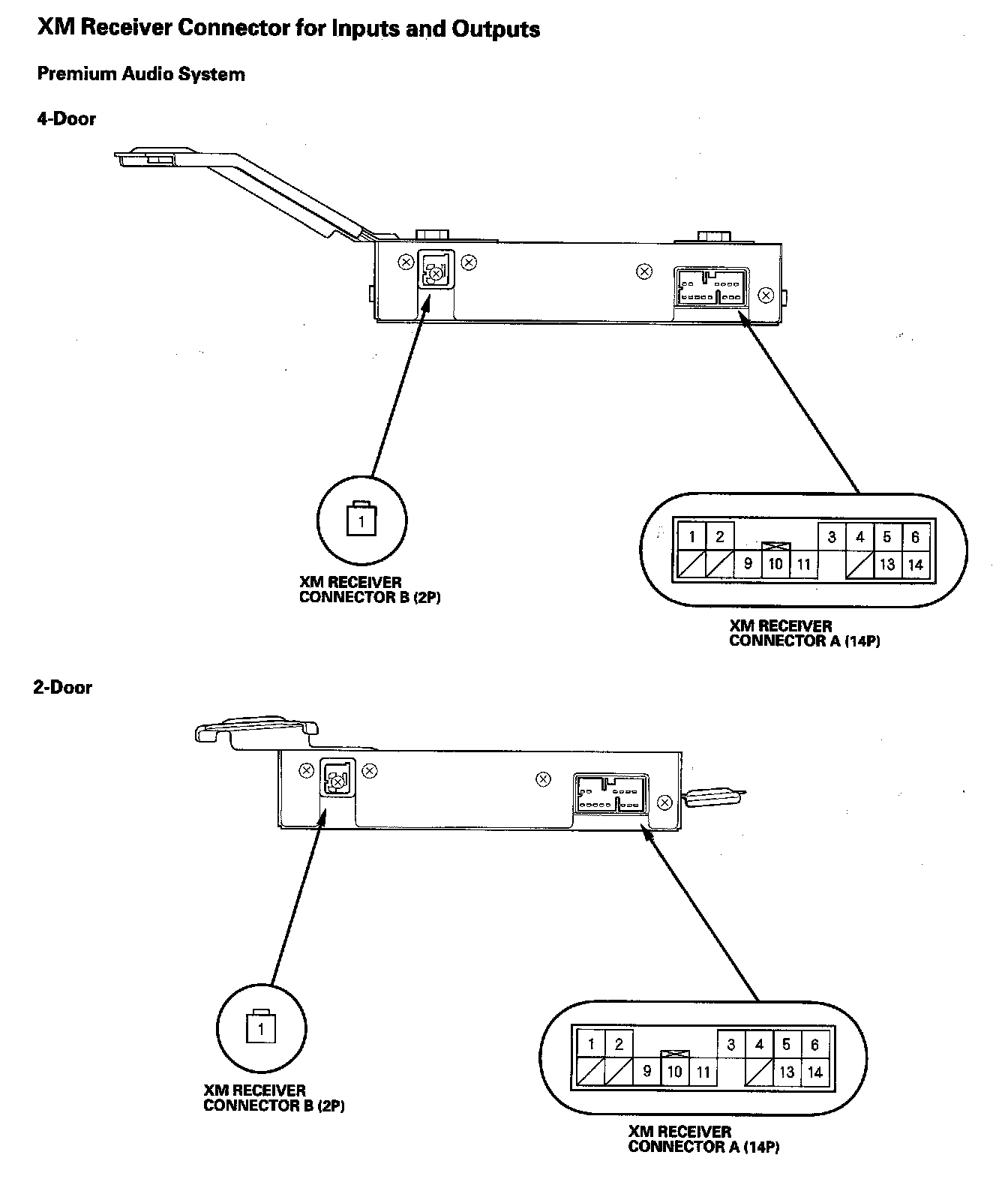

XM Receiver Connector For Inputs And Outputs (Part 1):

XM Receiver Connector For Inputs And Outputs (Part 2):

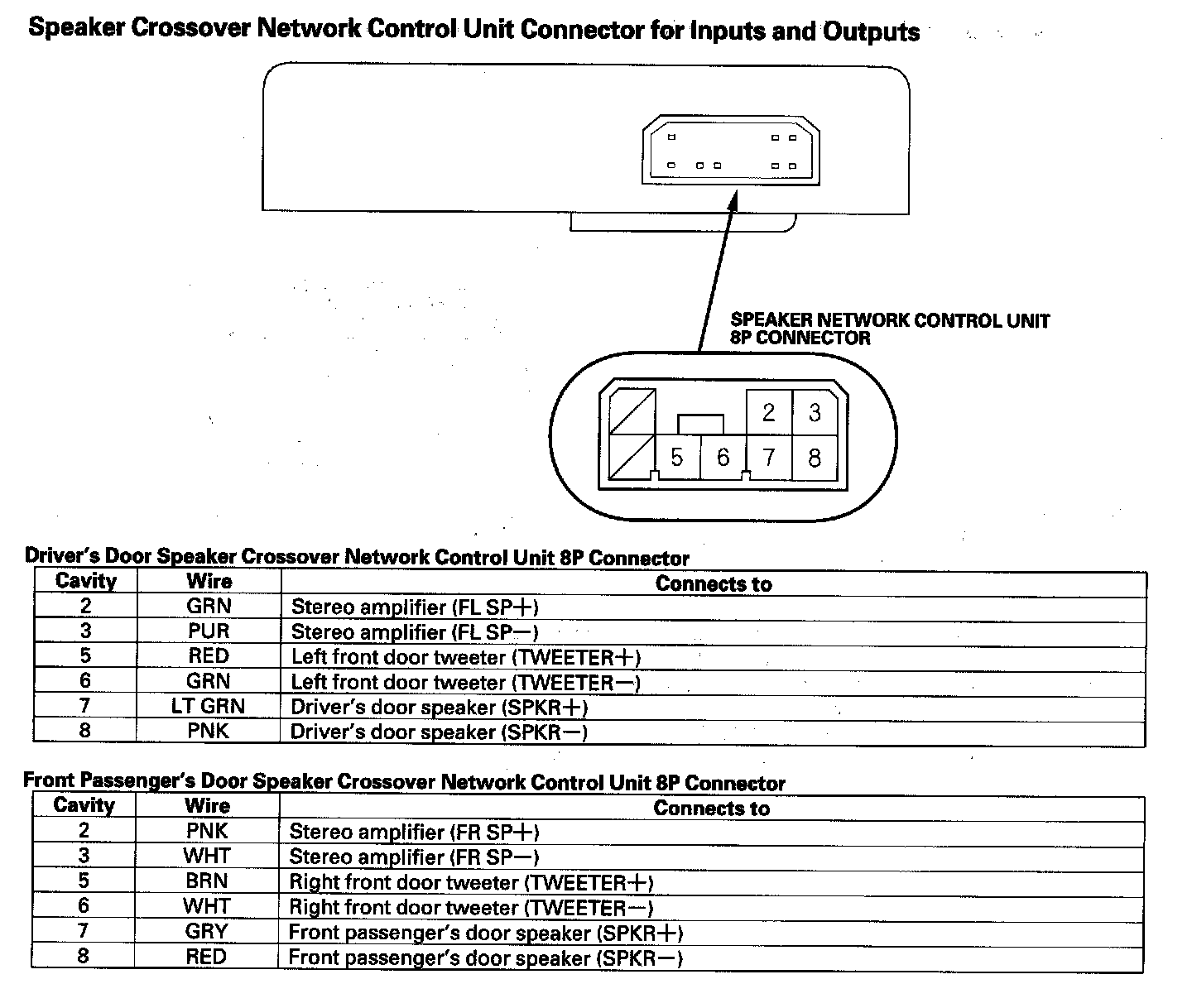

Speaker Crossover Network Control Unit Connector For Inputs And Outputs:

Audio-HVAC Subdisplay Unit Connector For Inputs And Outputs (With Navigation System):

Audio-HVAC Display Unit Connector For Inputs And Outputs (Without Navigation System):
