Audio Wire Harness (Without Premium Audio System)
Audio Wire Harness (Without Premium Audio System)
Harness Location View:

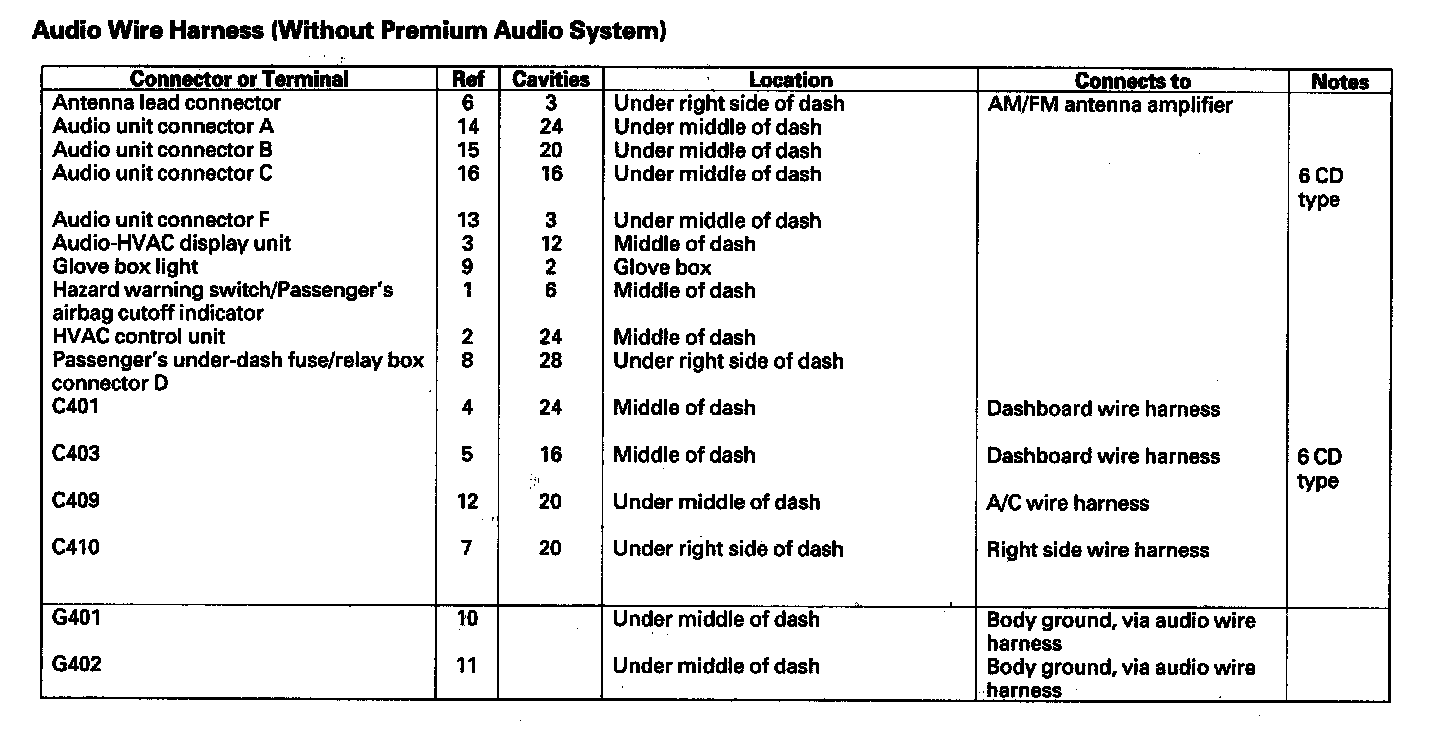

Audio Wire Harness (Without Premium Audio System):
