Control Assembly: Diagrams

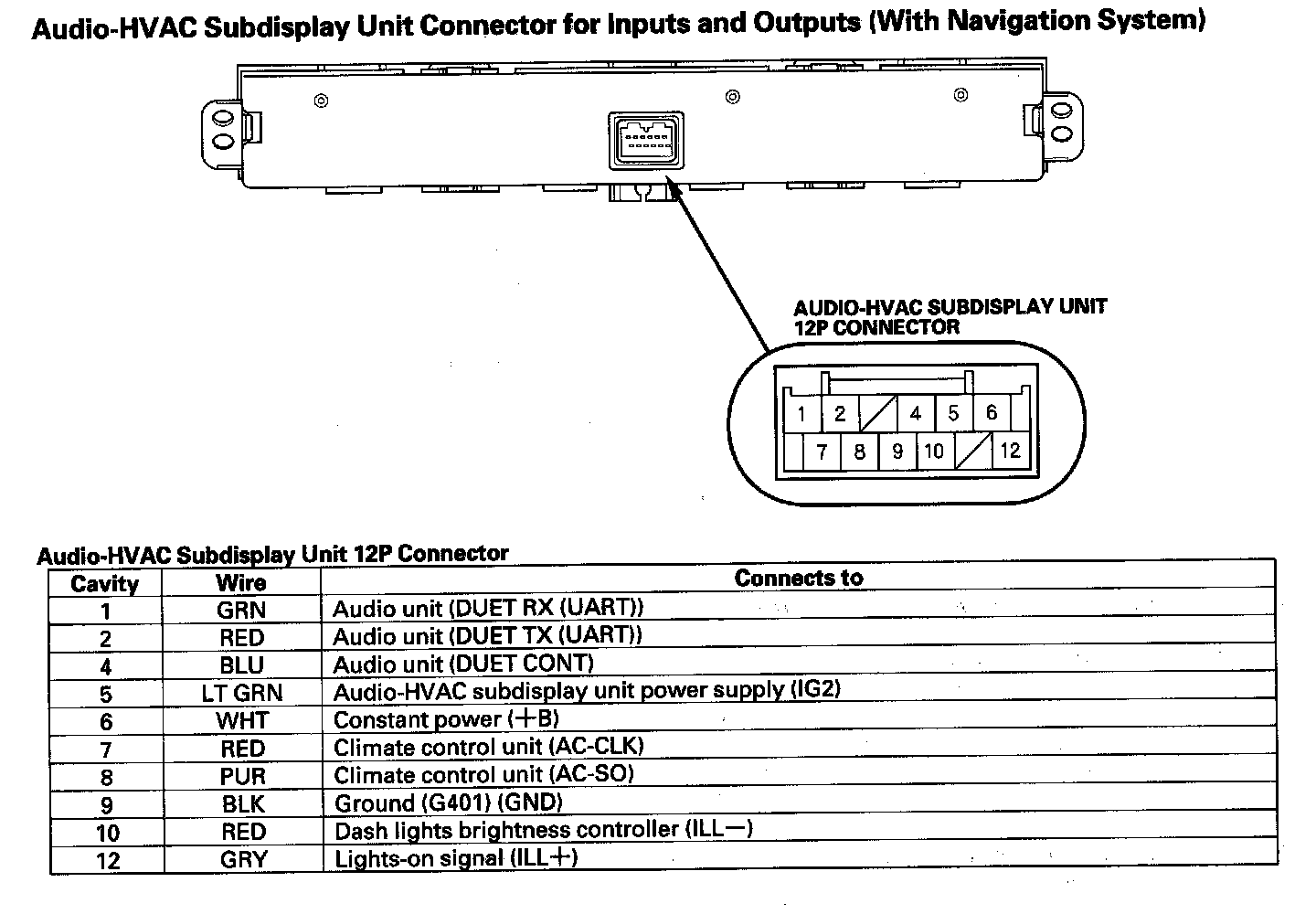

Audio-HVAC Subdisplay Unit Connector For Inputs And Outputs (With Navigation System):

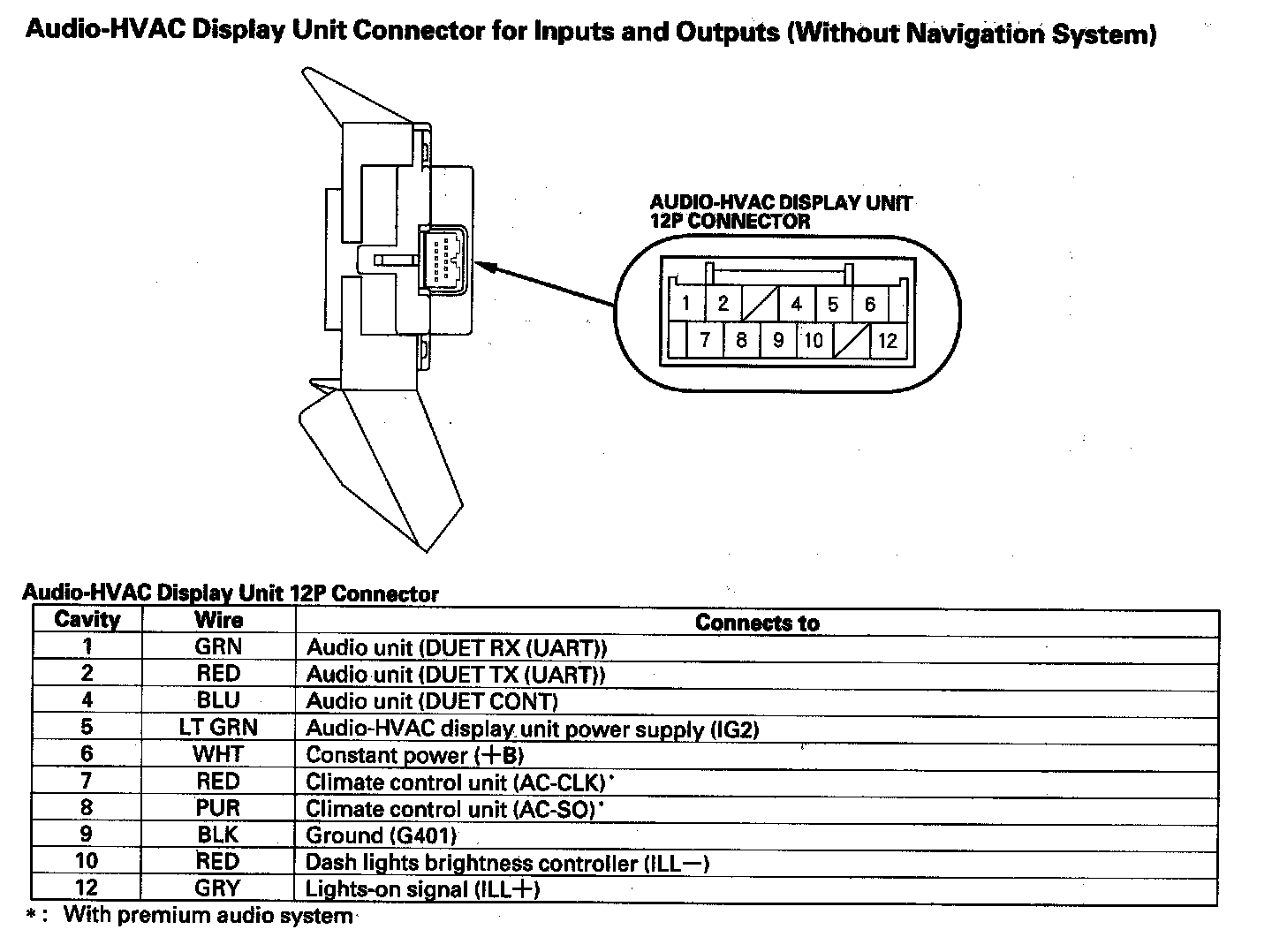

Audio-HVAC Display Unit Connector For Inputs And Outputs (Without Navigation System):
