Rear Window Defogger Ground Wire (2-Door)
Rear Window Defogger Ground Wire (2-Door)

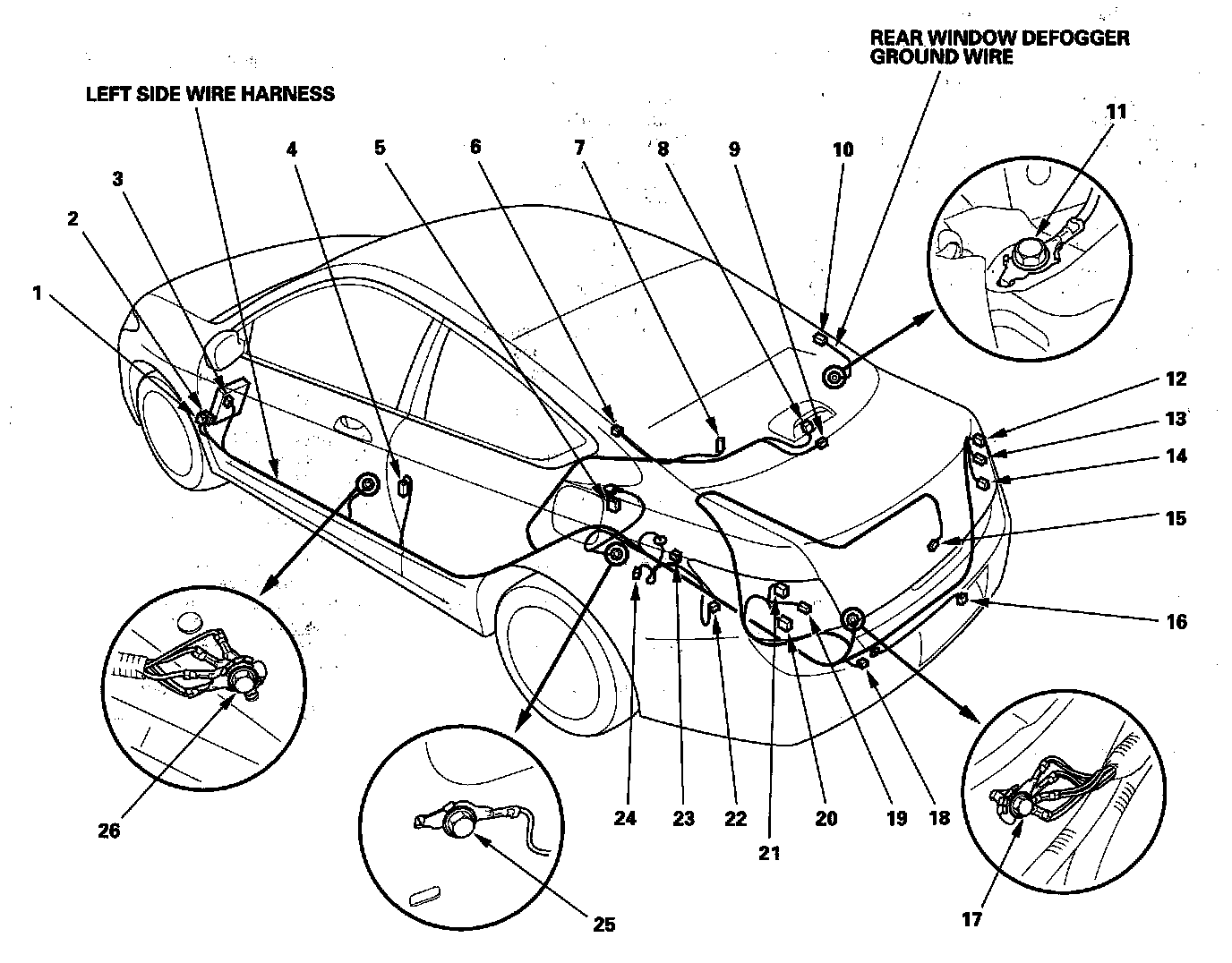

Harness Location View:

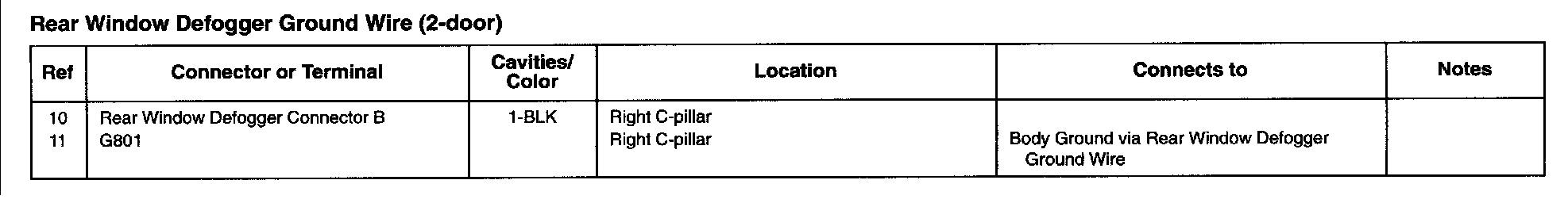

Rear Window Defogger Ground Wire (2-door):
Harness Location View:

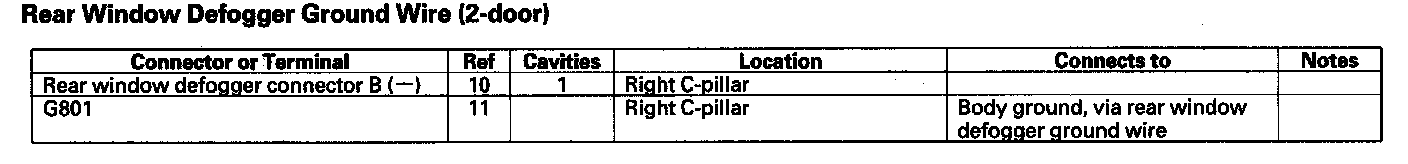

Rear Window Defogger Ground Wire (2-door):
