Circuit Diagrams
Circuit Diagrams

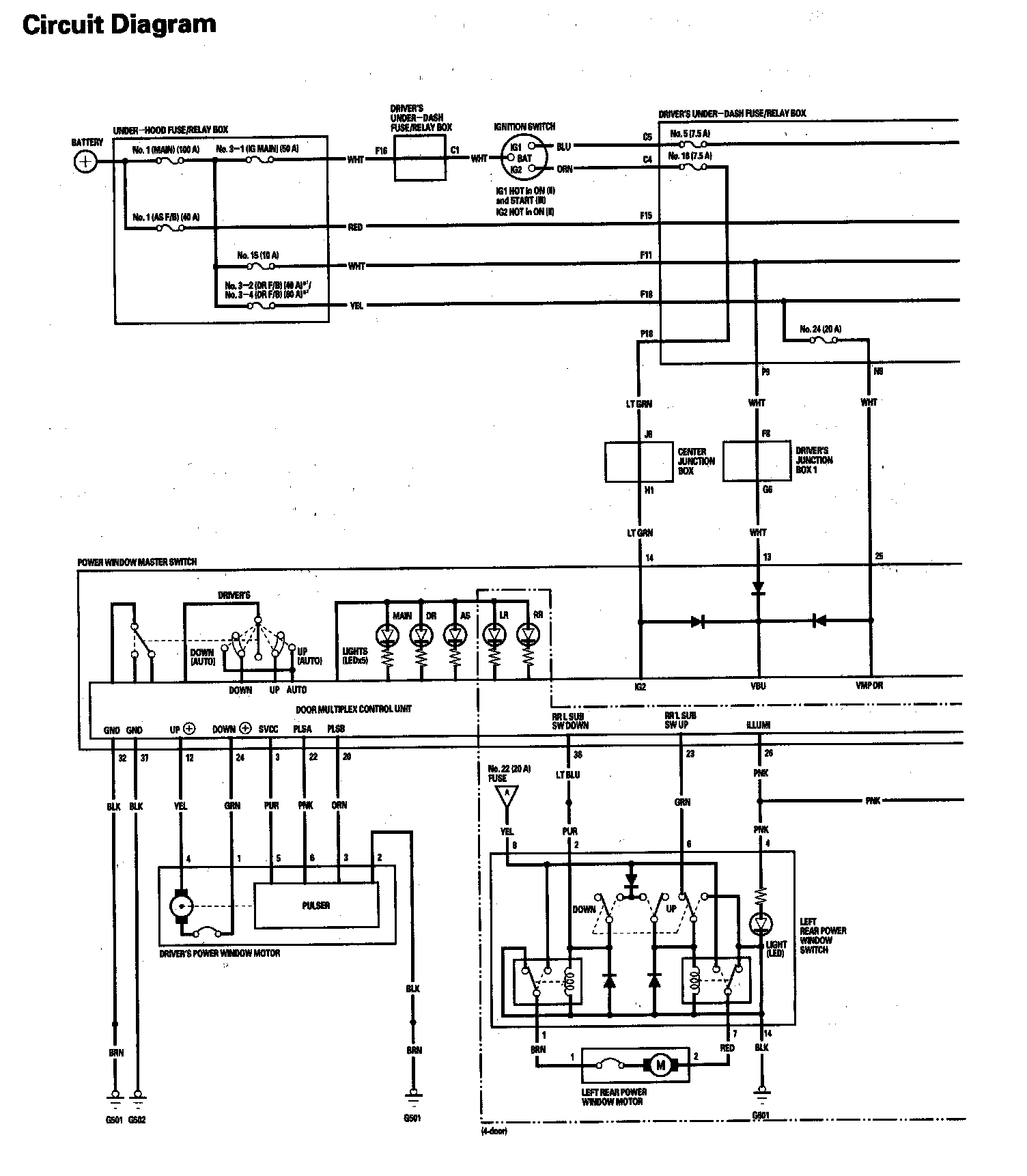

Power Windows Circuit Diagram (Part 1):
Power Windows Circuit Diagram (Part 2):
Power Windows Circuit Diagram (Part 3):
