Fluid Line/Hose: Service and Repair

ATF Cooler Hose Replacement

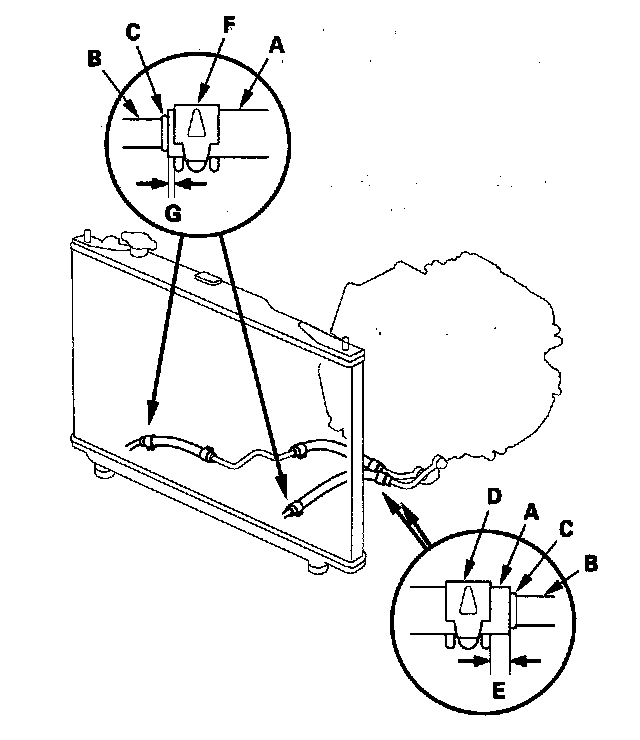

1. Slide the ATF cooler hoses (A) over the ATF cooler lines (B) until the hose ends contact the bulge (C) on the ATF cooler lines.





2. Secure the hoses with the clips (D) at 6-8 mm (0.2-0.3 in.) (E) from the hose end.
3. Secure the hoses at the ATF cooler with the clips (F) at 2-4 mm (0.1-0.2 in.) (G) from the hose ends.
