Front Inner Fairing Replacement

Front Fender Fairing Replacement

1. Remove the front inner fender, as needed.

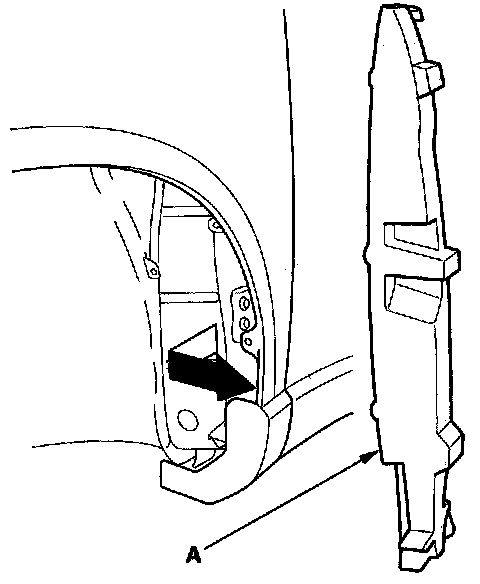

2. Pull out and remove the front fender fairing (A).






3. Install the fender fairing in the reverse order of removal.
