Structural Brace: Service and Repair

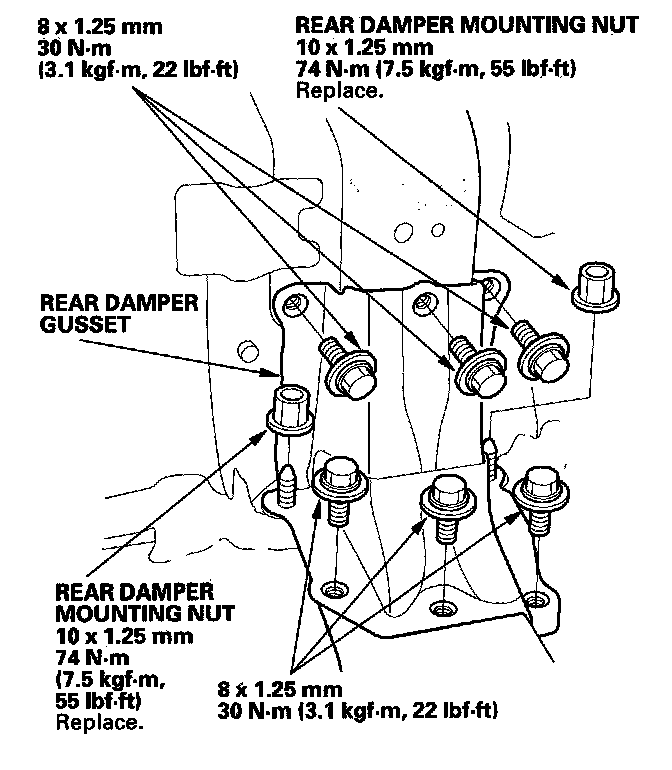

Rear Damper Gusset Replacement

Rear Damper Gusset Torque

NOTE: Take care not to scratch the body.
