Front Seat Armrest Replacement

Front Seat Armrest Replacement

Special Tools Required
KTC trim tool set SOJATP2014 *
* Available through the American Honda Tool and Equipment Program

NOTE:
- Take care not to scratch the body or tear the seat covers.
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.

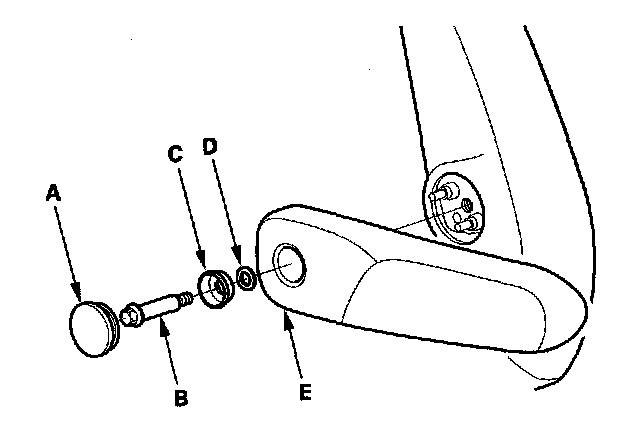

1. Using a trim tool, remove the cap (A).






2. Remove the center pin (B), bushing (C), and washer (D), then remove the armrest (E).

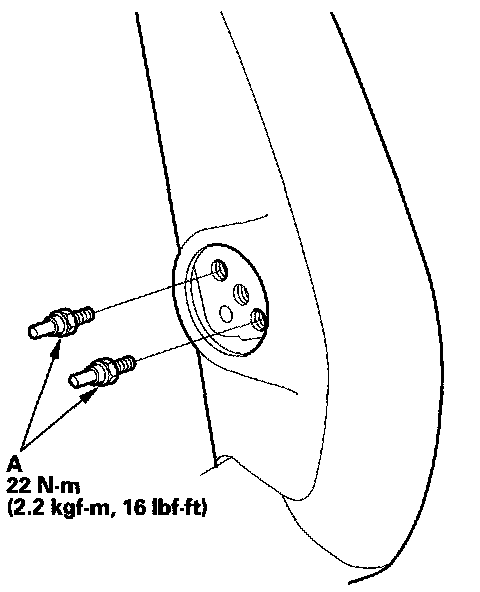

3. If necessary, remove the pins (A) from the seat-back.
