Motor Test
Motor Test1. Remove the front seat-back cover.

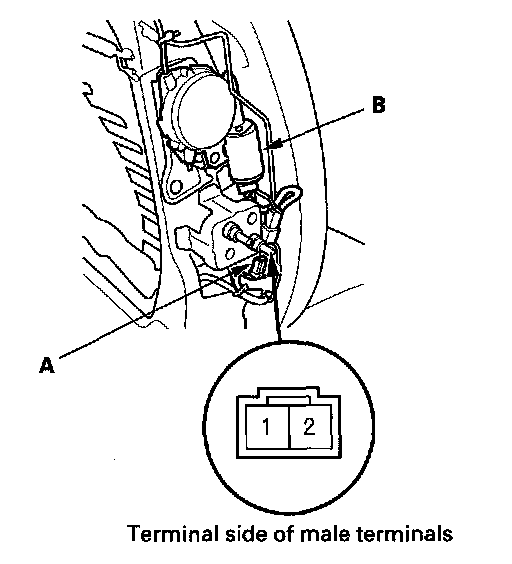

2. Disconnect the 2P connector (A) from the lumbar support motor (B).

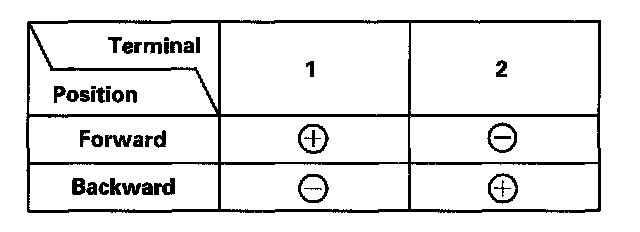

3. Test the motor in each direction by connecting battery power and ground according to the table. When the motor stops running, disconnect one lead immediately.
4. If the motor does not run or fails to run smoothly, replace it.
