Removal and Replacement
Alternator Removal and InstallationRemoval
1. Make sure you have the anti-theft code for the audio system or the navigation system (if equipped). Make sure the ignition switch is in LOCK (0) position.
2. Disconnect the negative cable from the battery.
3. Remove the drive belt.
4. Remove the drive belt auto-tensioner.

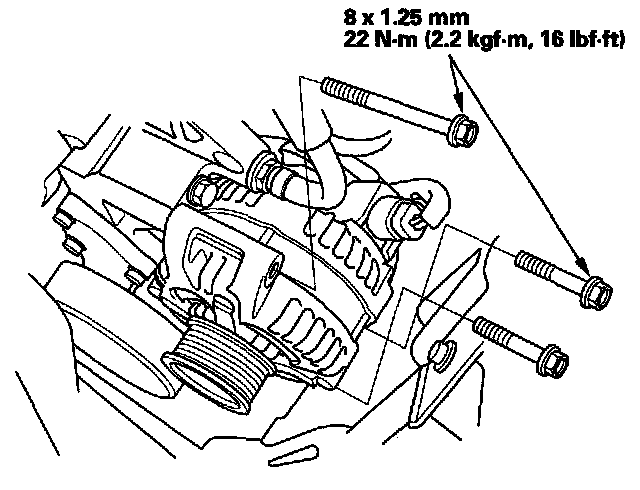

5. Remove the three bolts securing the alternator.

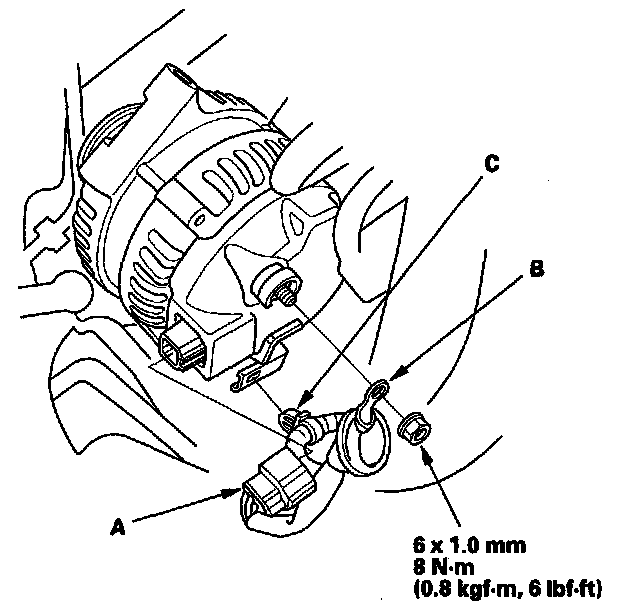

6. Disconnect the alternator connector (A), BLK wire (B), and harness clamp (C) from the alternator, then remove the alternator.
Installation
1. Connector the alternator connector (A), BLK wire (B), and harness clamp (C) to the alternator.
2. Tighten the three bolts securing the alternator.
3. Install the drive belt auto-tensioner.
4. Install the drive belt.
5. Connect the negative cable to the battery.
6. Enter the anti-theft code for the audio system or the navigation system (if equipped).
7. Set the clock (on vehicles without navigation).
