A/T Gear Position Indicator Panel Assembly Replacement
A/T Gear Position Indicator Panel Assembly ReplacementNOTE: Refer to the Shift Lever Disassembly and Reassembly as needed during the following procedures.
1. Remove the shift lever.

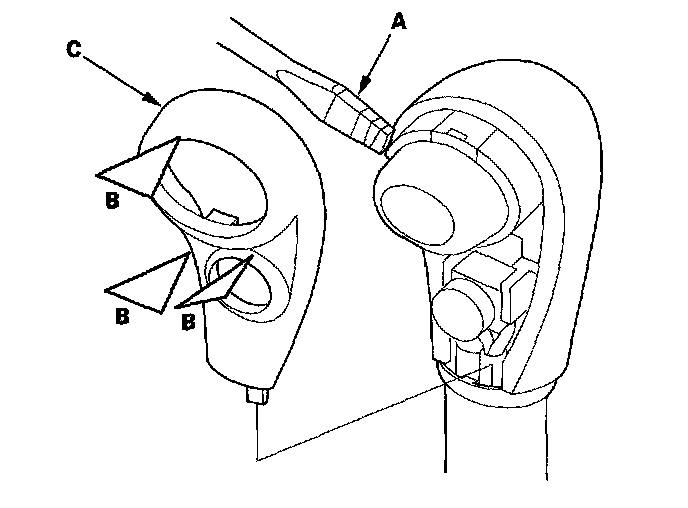

2. Wrap the end of a flat-tip screwdriver (A) with tape, pry the shift lever knob cover locks (B), and remove the shift lever knob cover (C).
3. Remove the screws (A), the shift lever button (B), and the spring (C).
4. Remove the D3 switch (D) by expanding its locks (E) from the shift lever knob, and remove the shift lever knob (F).
5. Remove the harness band, and disconnect the D3 switch 2P connector (A).
6. Remove the D3 switch harness and the shift lever ring.
7. Remove the A/T gear position indicator panel light socket from the indicator panel.
8. Remove the A/T gear position indicator panel, and disassemble the indicator panel (A), the panel base (B), and the lever cover (C).
9. Replace the indicator panel, panel base, or lever cover, and assemble the A/T gear position indicator panel; install the lever cover in the panel base with the marks (D) point toward the front.
10. Install the A/T gear position indicator panel, and install the shift lever ring and the D3 switch harness.
11. Route the D3 switch harness (A), connect the D3 switch 2P connector (B), and install the connector in the holder.
12. Tie the harnesses of the D3 switch and the park pin switch at the guide (C) with the band (D).
13. Install the A/T gear position indicator panel light socket in the indicator panel.
14. Apply silicone grease to the top of the shift lever rod (A), to the shift lever button spring (B), and to the area of the shift lever button (C) connected with the shift lever rod.
15. Install the shift lever button spring and the button in the shift lever knob (D), and install the shift lever knob over the shift lever.
16. Apply non-hardening thread lock sealant to the screw threads, and secure the shift lever knob with the screws (E).
17. Install the D3 switch (F) and the shift lever knob cover (G) on the shift lever knob.
18. Install the shift lever.
