DTC 33-3x

DTC 33-3x ("x" can be 0 thru 9 or A thru F): Short to Another Wire or Decreased Resistance in Left Side Curtain Airbag Inflator

Special Tools Required
- SRS inflator simulator 07SAZ-TB4011A
- SRS simulator lead L 070AZ-SNAA300
- SRS short canceller 070AZ-SAA0100

NOTE: Before doing this troubleshooting procedure, review SRS Precautions and Procedures and General Troubleshooting Information.

1. Clear the DTC memory.
2. Turn the ignition switch to ON (II), and check that the SRS indicator comes on for about 6 seconds and then goes off

Does the SRS indicator stay on, and is DTC 33-3x indicated?

YES - Go to step 3.

NO - Intermittent failure, the system is OK at this time. Go to Troubleshooting Intermittent Failures Troubleshooting Intermittent Failures. If another DTC is indicated, troubleshoot the DTC.

3. Turn the ignition switch to LOCK (0). Disconnect the negative cable from the battery, then wait for 3 minutes.
4. Remove the left side quarter pillar glass trim, then disconnect the side wire harness 2P connector (A) from the left side curtain airbag connector (B).






5. Connect the SRS inflator simulator (2 ohms connectors) and simulator lead L to the side wire harness.
6. Reconnect the negative cable to the battery.
7. Clear the DTC memory.
8. Read the DTC.

Is DTC 33-3x indicated?

YES - Go to step 9.

NO - Short to another wire in the left side curtain airbag inflator; replace the left side curtain airbag.

9. Turn the ignition switch to LOCK (0). Disconnect the negative cable from the battery, then wait for 3 minutes.
10. Disconnect both seat belt tensioner 4P connectors and both seat belt buckle tensioner 4P connectors.
11. Disconnect SRS unit connector B (28P) from the SRS unit.
12. Disconnect the SRS inflator simulator from the SRS simulator lead. Do not disconnect the simulator lead from the side wire harness 2P connector.
13. Connect the SRS short canceller (070AZ-SAA0100) to the No. 21 and the No. 22 terminals of SRS unit connector B (28P).
14. Measure the resistance between the terminals of the black SRS simulator lead (A). There should be an open circuit or at least 1 Mohms.






Is the resistance as specified?

YES - Faulty SRS unit or poor connection at SRS unit connector B (28P) and the SRS unit. Check the connection; if the connection is OK, replace the SRS unit.

NO - Go to step 15.

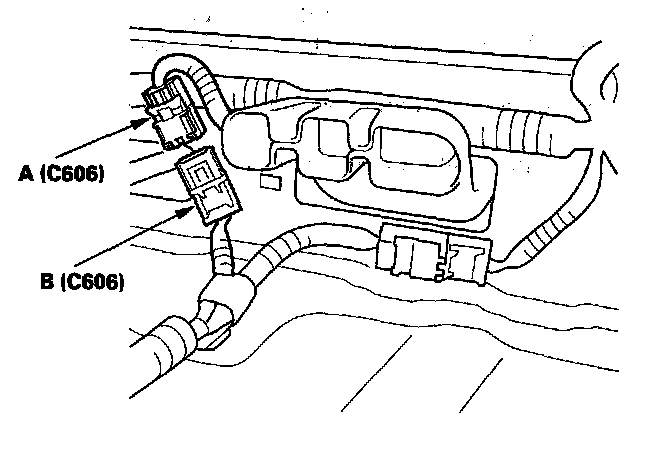

15. Disconnect floor wire harness 4P connector C606 (A) from side wire harness 4P connector C606 (B).






16. Measure the resistance between the No, 3 and the No. 4 terminals of floor wire harness 4P connector C606 (A). There should be an open circuit or at least 1 Mohms.






Is the resistance as specified?

YES - Short to another wire in the side wire harness; replace the side wire harness.

NO - Short to another wire in the floor wire harness; replace the floor wire harness.
