Dashboard Wire Harness (View of Driver's Side)
Dashboard Wire Harness (View of Driver's Side)

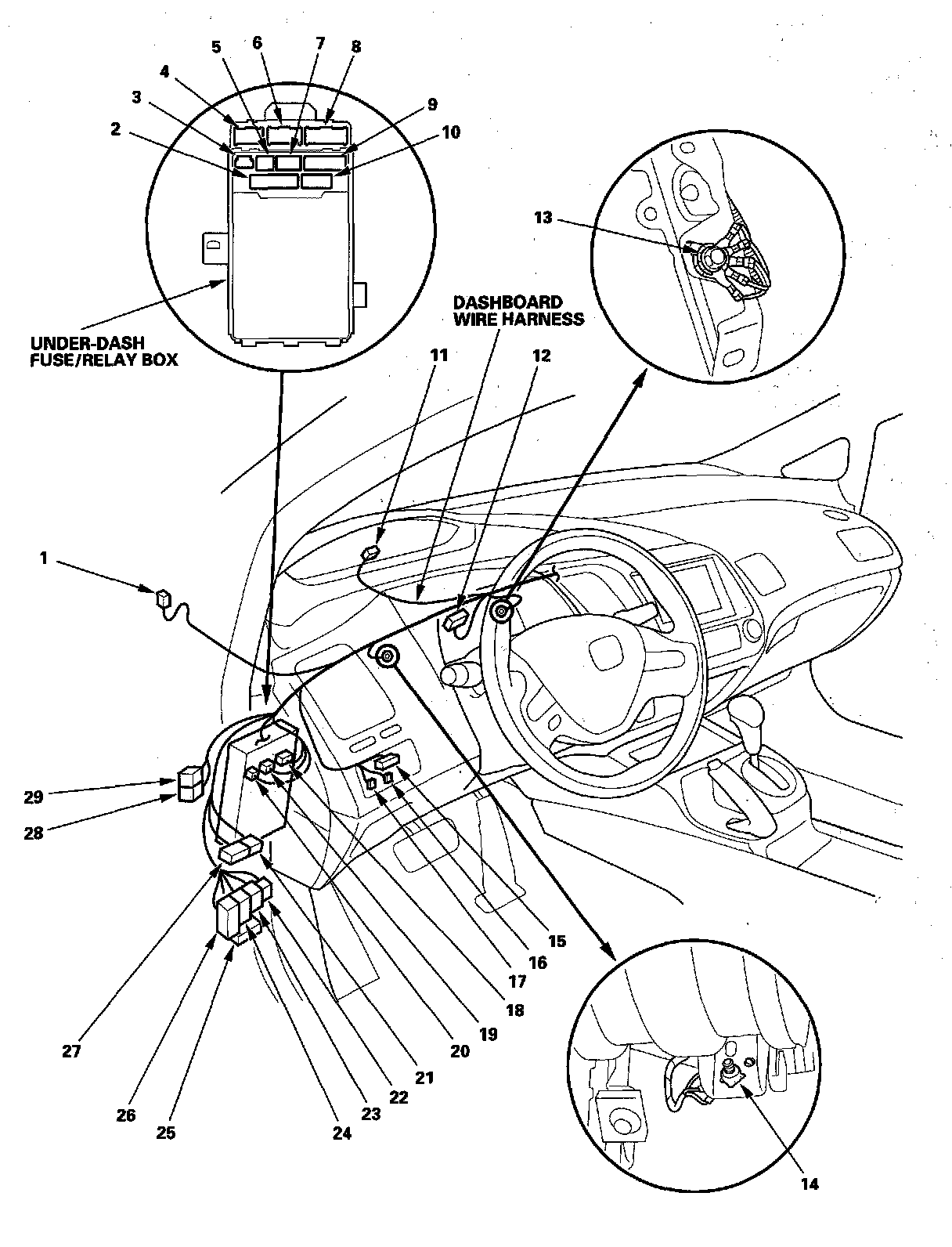

Harness Location View:

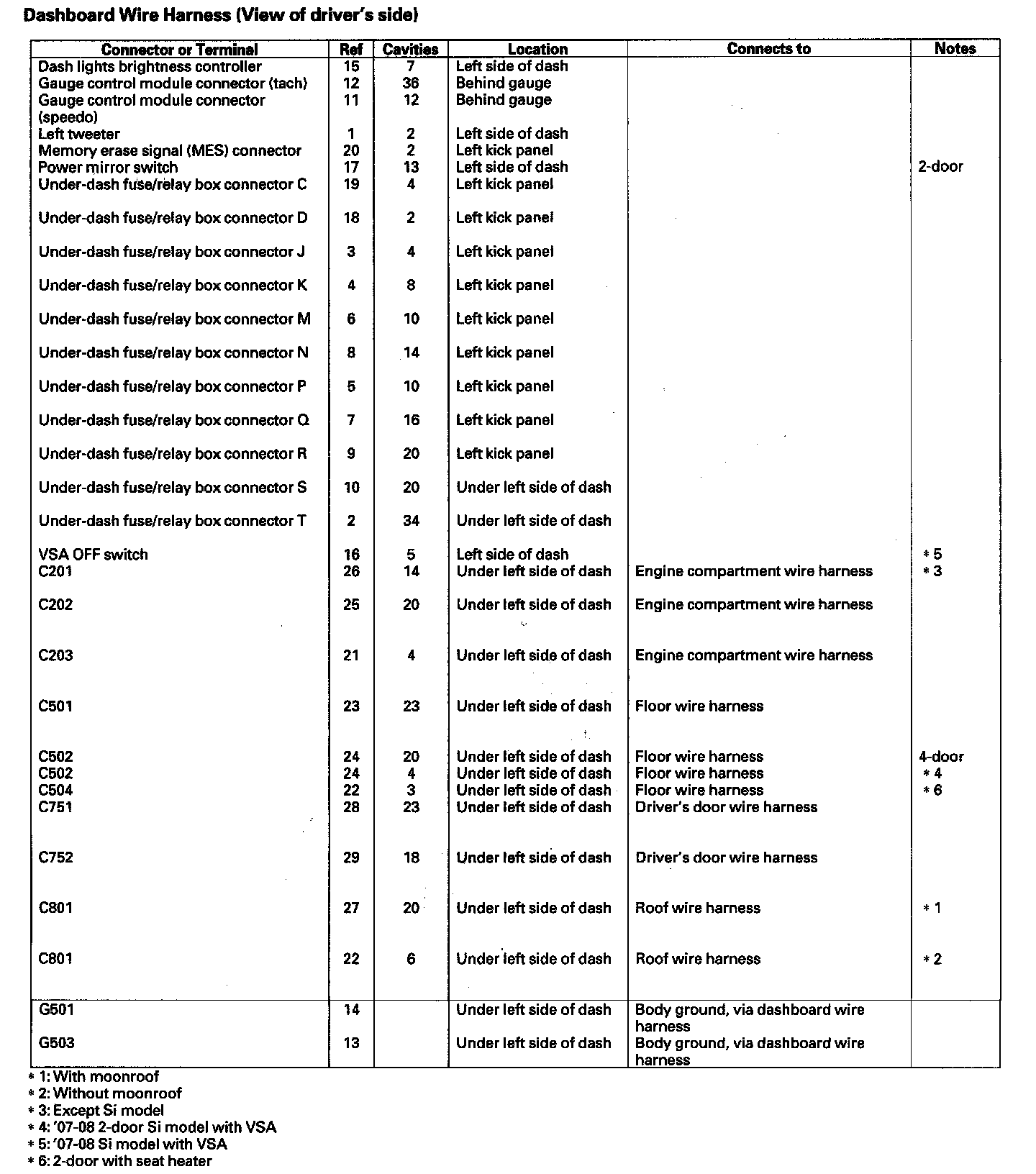

Dashboard Wire Harness (View Of Driver's Side):
