PCM/ECM Circuit Diagrams

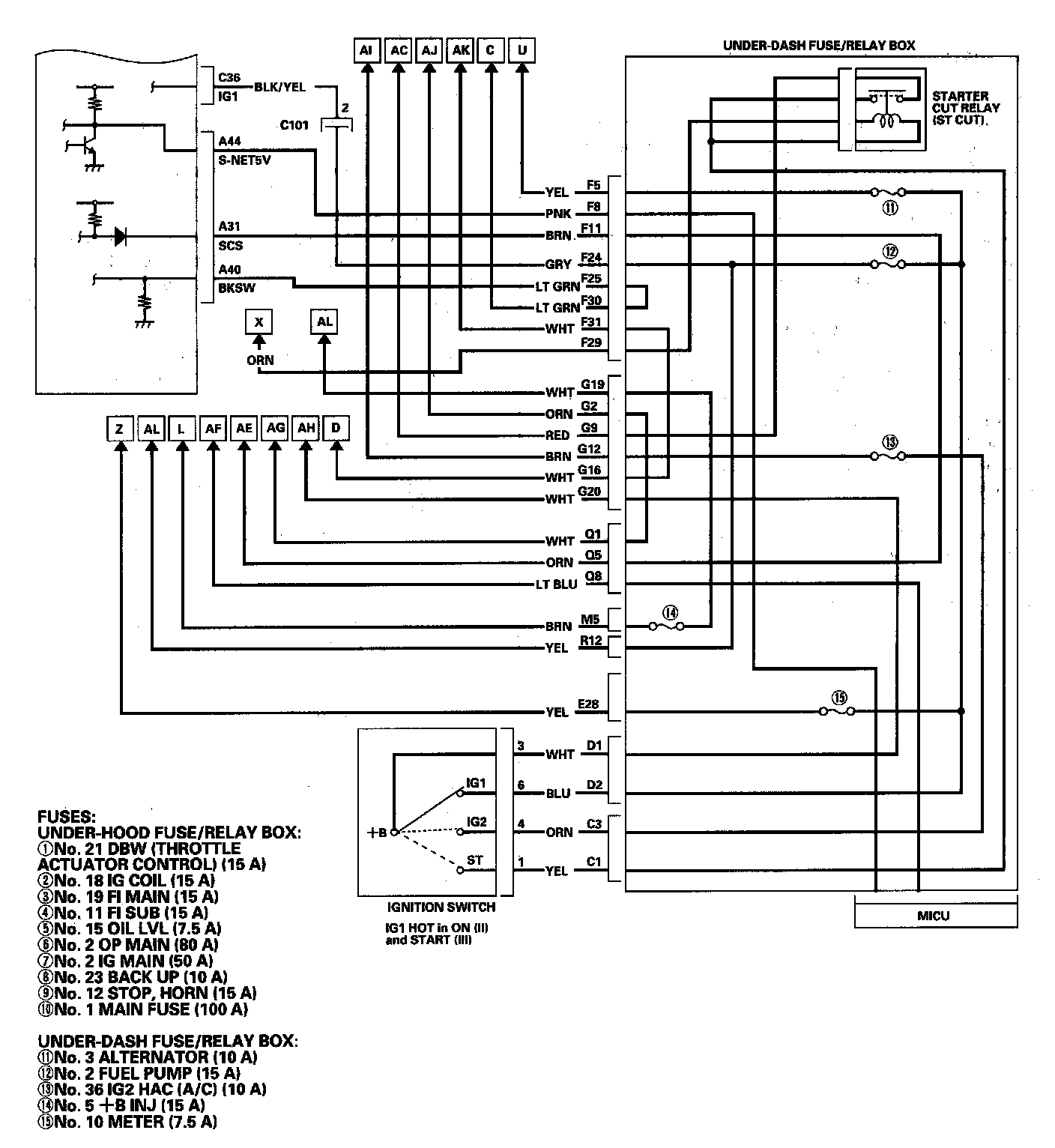

PCM Circuit Diagram (Part 1):

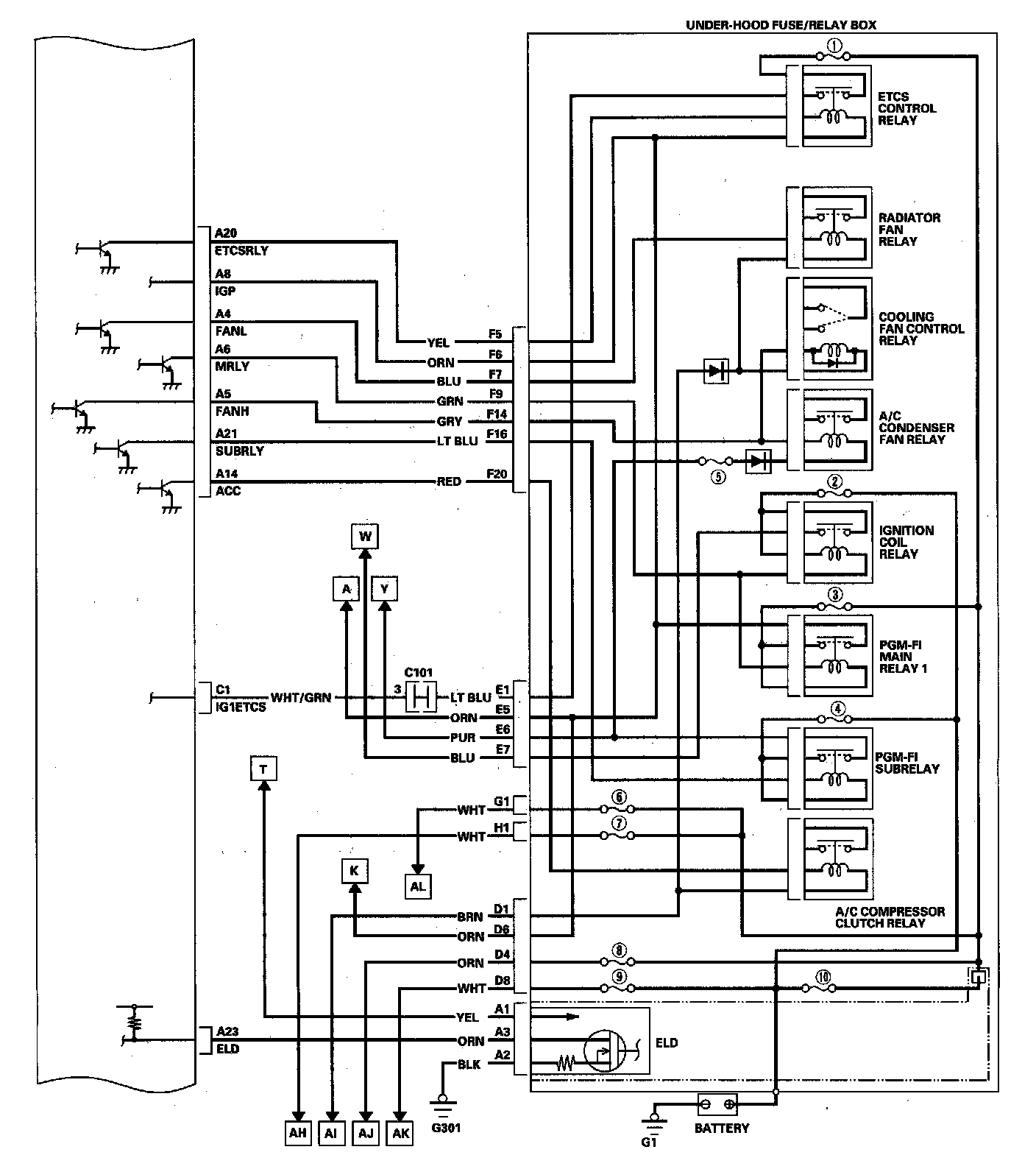

PCM Circuit Diagram (Part 2):

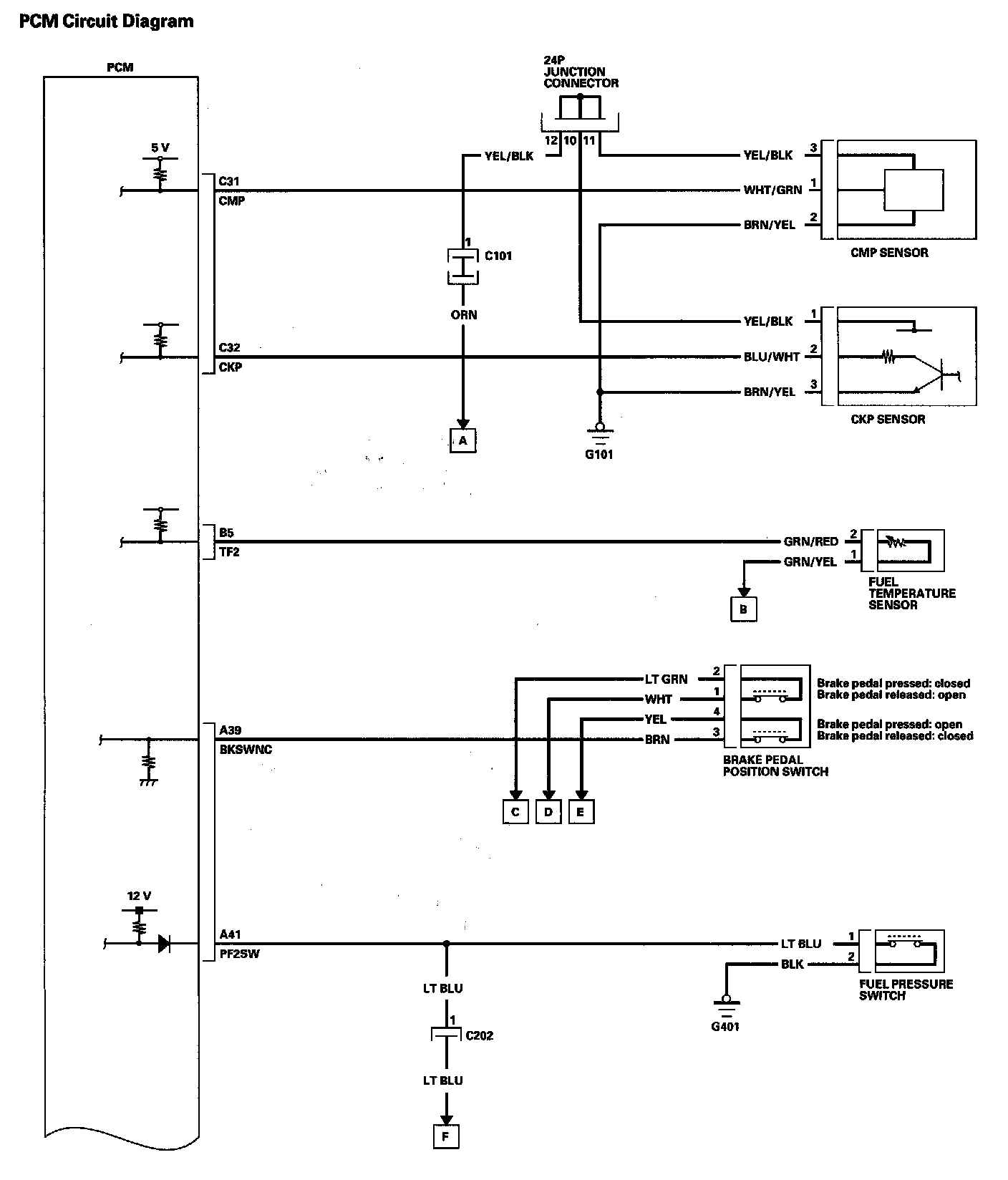

PCM Circuit Diagram (Part 3):

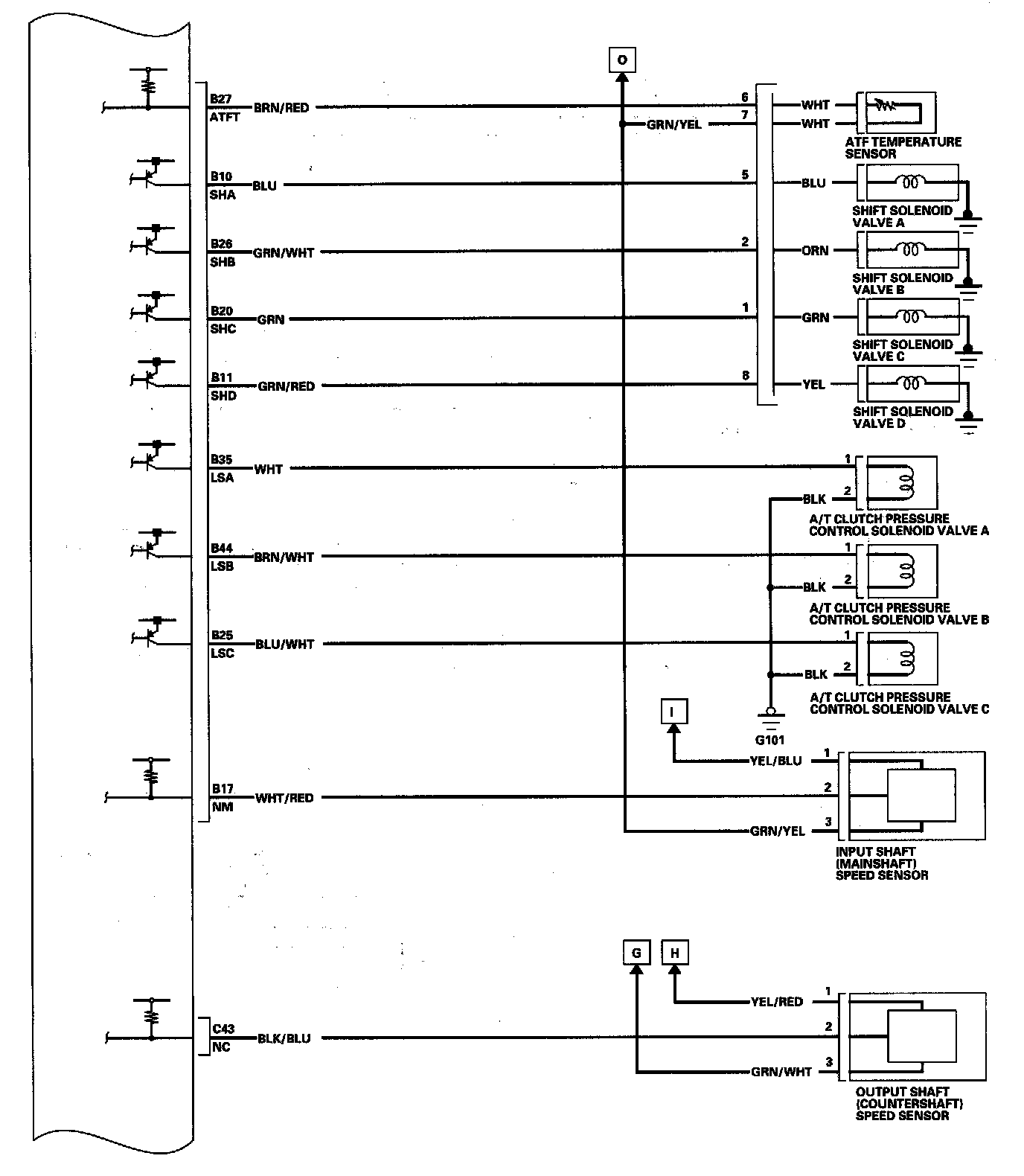

PCM Circuit Diagram (Part 4):

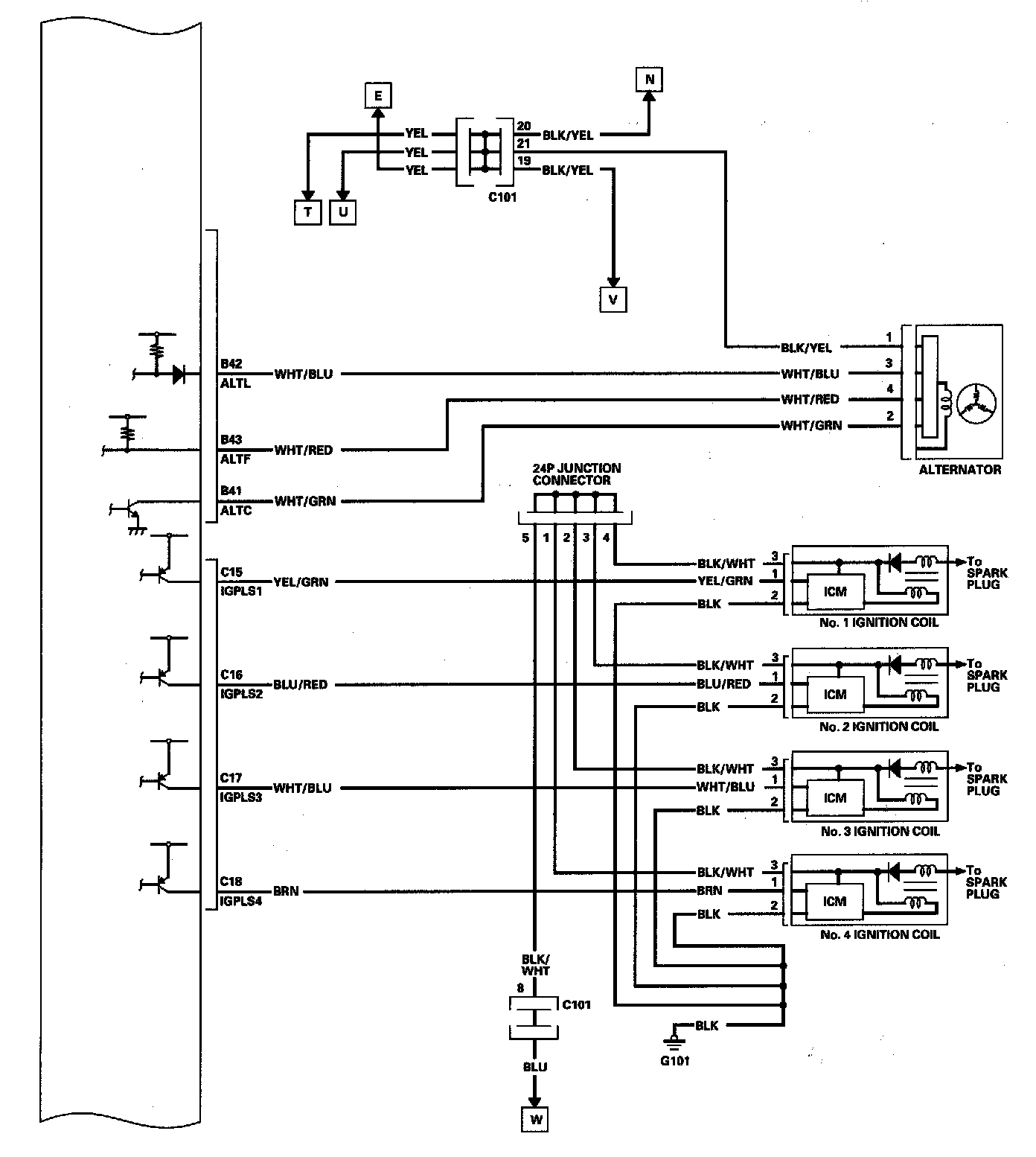

PCM Circuit Diagram (Part 5):

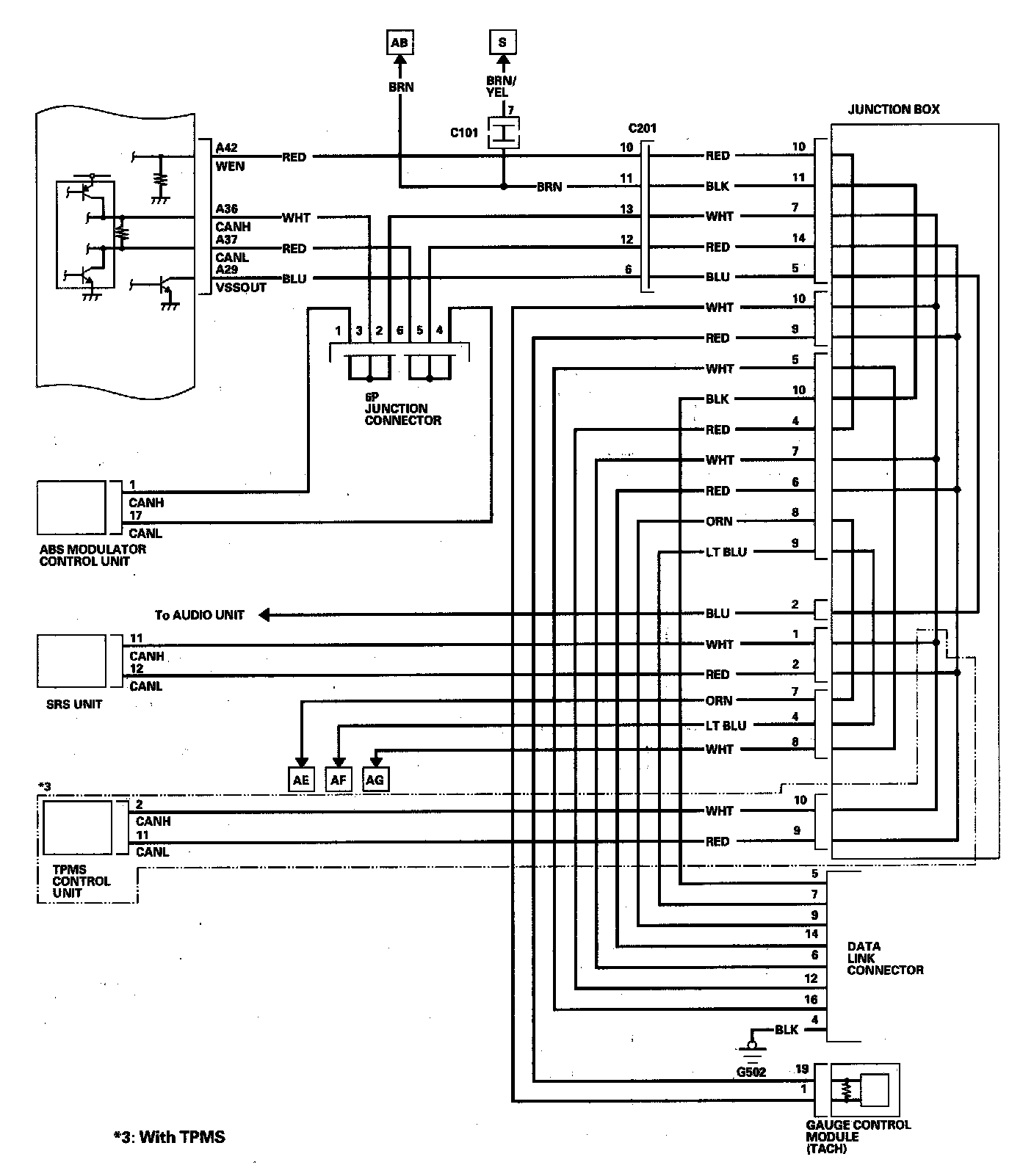

PCM Circuit Diagram (Part 6):

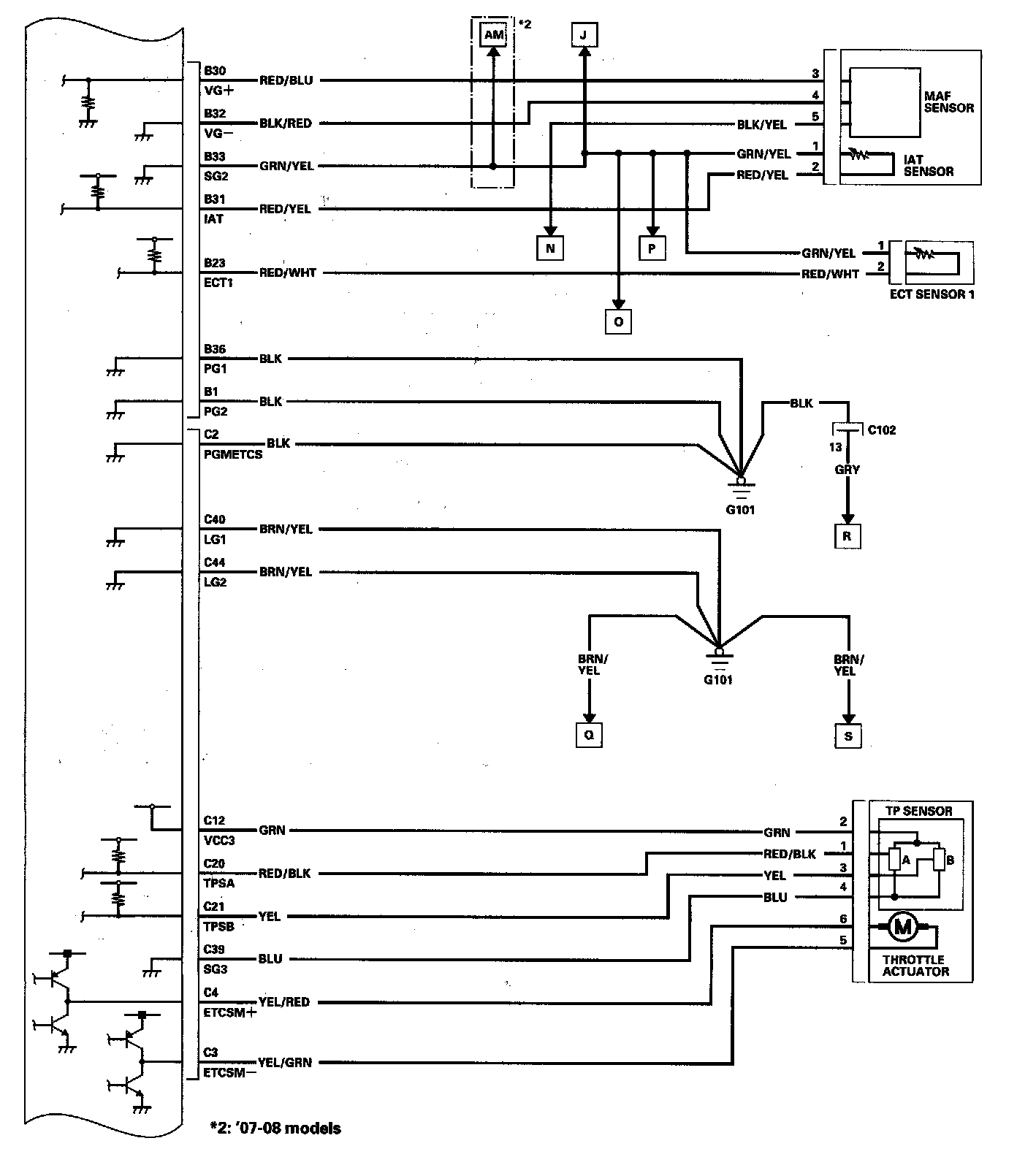

PCM Circuit Diagram (Part 7):

PCM Circuit Diagram (Part 8):

PCM Circuit Diagram (Part 9):

PCM Circuit Diagram (Part 10):

PCM Circuit Diagram (Part 11):

PCM Circuit Diagram (Part 12):
