DTC P0843: Open in 2nd Clutch Transmission Fluid Pressure Switch Circuit, or 2nd Clutch Transmission Fluid Pressure Switch Stuck OFFNOTE:
^ Before you troubleshoot, record all freeze data and any on-board snapshot with the HDS, and review General Troubleshooting Information.
^ This code is caused by an electrical circuit problem and cannot be caused by a mechanical problem in the transmission.
1. Turn the ignition switch to ON (II).
2. Clear the DTC with the HDS.
3. Start the engine, and warm it up to normal operating temperature (the radiator fan comes on).
4. Shift the shift [ever into 2.
5. Check the 2nd PRESSURE SWITCH in the DATA LIST with the HDS
Is the 2nd PRESSURE SWITCH ON?
YES - Go to step 6.
NO - Go to step 8.
6. Test-drive the vehicle with the shift lever in 2 for at least 2 seconds.
7. Monitor the OBD STATUS for P0843 in the DTCs MENU with the HDS.
Does the HDS indicate FAILED?
YES - Go to step 8.
NO - If the HDS indicates PASSED, intermittent failure, the system is OK at this time. Check for poor connections or loose terminals between the 2nd clutch transmission fluid pressure switch and the PCM. If the HDS indicates NOT COMPLETED, go to step 6.
8. Turn the ignition switch to LOCK (0).
9. Disconnect the 2nd clutch transmission fluid pressure switch connector.
10. Turn the ignition switch to ON (II).

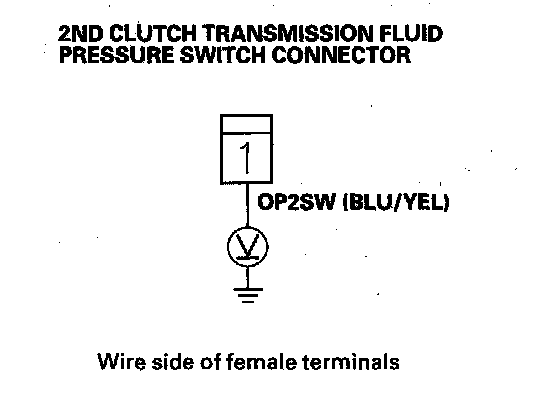

11. Measure the voltage between the 2nd clutch transmission fluid pressure switch connector terminal and body ground.
Is thereabout 5 V?
YES - Replace the 2nd clutch transmission fluid pressure switch, then go to step 16.
NO - Go to step 12.
12. Turn the ignition switch to LOCK (0).
13. Jump the SCS line with the HDS.
14. Disconnect PCM connector B (44P).

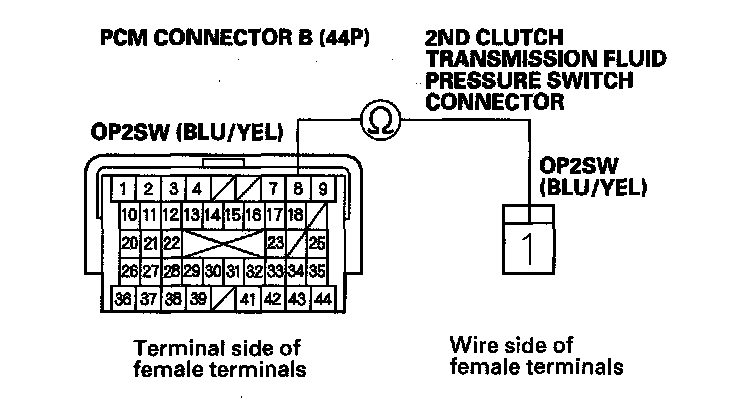

15. Check for continuity between PCM connector terminal B8 and the 2nd clutch transmission fluid pressure switch connector terminal.
Is there continuity?
YES - Go to step 23.
NO - Repair open in the wire between PCM connector terminal B8 and the 2nd clutch transmission fluid pressure switch, then go to step 16.
16. Reconnect all connectors.
17. Turn the ignition switch to ON (II).
18. Clear the DTC with the HDS.
19. Start the engine, and warm it up to normal operating temperature (the radiator fan comes on).
20. Drive the vehicle with the shift lever in 2 for at least 2 seconds, then shift to D, and drive in 4th gear for at least 2 seconds.
21. Check for DTCs with the HDS.
Is DTC P0843 indicated?
YES - Check for poor connections or loose terminals between the 2nd clutch transmission fluid pressure switch and the PCM, then go to step 1
NO - Go to step 22.
22. Monitor the or 4 in the DTC MENU with the HDS.
Does the HDS indicate PASSED?
YES - Troubleshooting is complete. If any other DTCs were indicated in step 21, go to the indicated DTC's troubleshooting.
NO - If the HDS indicates FAILED, check for poor connections or loose terminals between the 2nd clutch transmission fluid pressure switch and the PCM, then go to step 1. If the HDS indicates NOT COMPLETED, go to step 19.
23. Update the PCM if it does not have the latest software, or substitute a known good PCM.
24. Start the engine, and warm it up to normal operating temperature (the radiator fan comes on).
25. Drive the vehicle with the shift lever in 2 for at least 2 seconds, then shift to D, and drive in 4th gear for at least 2 seconds.
26. Check for DTCs with the HDS.
Is DTC P0843 indicated?
YES - Check for poor connections or loose terminals between the 2nd clutch transmission fluid pressure switch and the PCM. If the PCM was updated, substitute a known-good PCM, then go to step 24. If the PCM was substituted, go to step 1.
NO - Go to step 27.
27. Monitor the OBD STATUS for P0843 in the DTCs MENU with the HDS.
Does the HDS indicate PASSED?
YES - If the PCM was updated, troubleshooting is complete. If the PCM was substituted, replace the original PCM. If any other DTCs were indicated in step 26, go to the indicated DTC's troubleshooting.
NO - If the HDS indicates FAILED, check for poor connections or loose terminals between the 2nd clutch transmission fluid pressure switch and the PCM. If the PCM was updated, substitute a known good PCM, then go to step 24. If the PCM was substituted, go to step 1. If the HDS indicates NOT COMPLETED, go to step 24.
