Front Grille Cover Replacement

Front Grille Cover Replacement

'07 Model

NOTE: Take care not to scratch the front grille and body.

1. Remove the front grille cover (A).
1. Remove the clips (B, C).
2. Release the hooks (D) of the cover from the headlight mounting portions (E) on both sides.
3. Detach the hooks (F) of the cover from the front grille (G).






2. Install the cover in the reverse order of removal, and note these items:
- Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.
- Push the clips and hooks into place securely.

'08 Model

NOTE: Take care not to scratch the front grille and body.

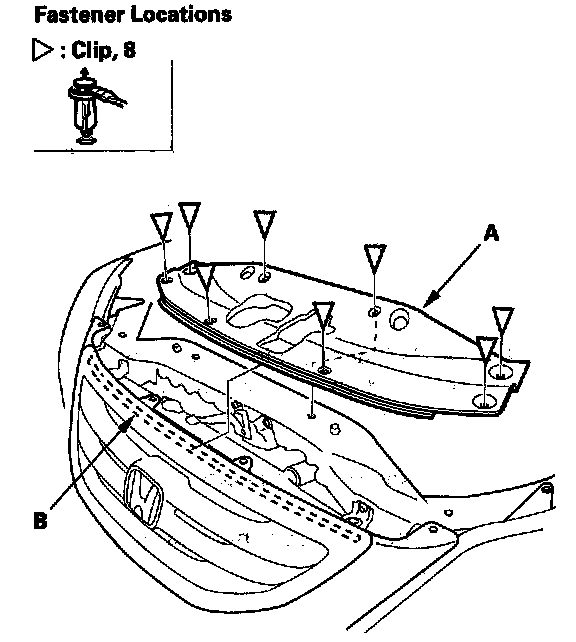

1. Release the clips by carefully pulling the front grille cover (A) up, then remove the cover by releasing the front edge of the cover from the grille (B).






2. Install the cover in the reverse order of removal, and note these items:
- Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.
- Push the clips and hooks into place securely.
