Rearview Mirror Replacement
Rearview Mirror ReplacementEXL (with Navigation), EXL-TP and EXL-T Models
1. Slide the mirror harness upper cover (A) forward, then remove the mirror harness cover (6).

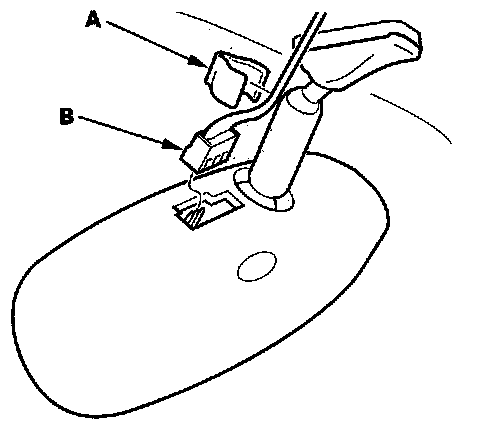

2. Remove the harness holder (A), then disconnect the connector (B).

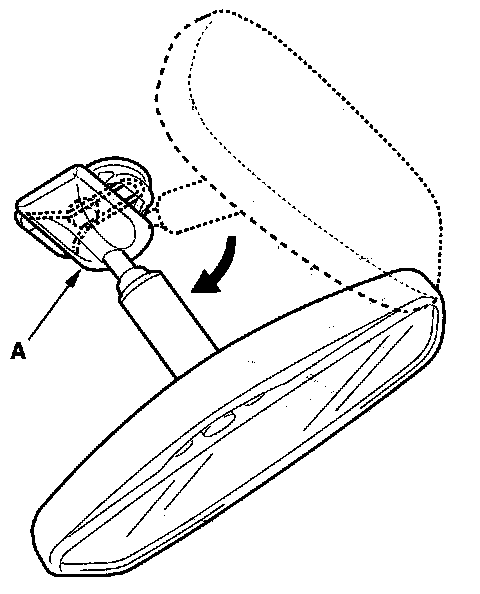

3. Turn the rearview mirror base (A) 90°.

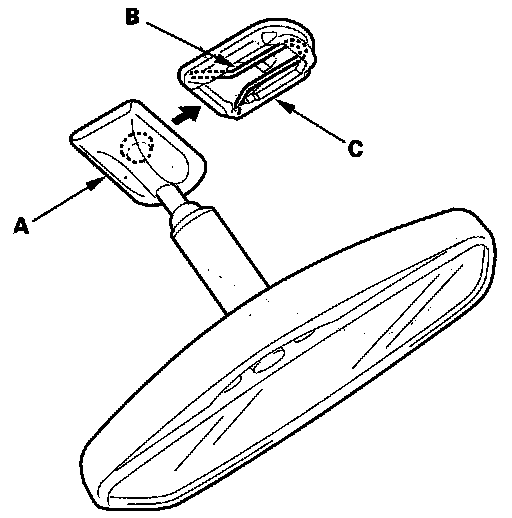

4. Slide the rearview mirror (A) down toward the bottom of the windshield to detach it from the spring (B) in the mount (C).
5. If necessary, remove the spring from the mount.
6. Install the rearview mirror in the reverse order of removal.
Special Tools Required
KTC trim tool set SOJATP2014 *
* Available through the American Honda Tool and Equipment Program.
EXL (without Navigation)
NOTE: Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
1. Remove the roof console.

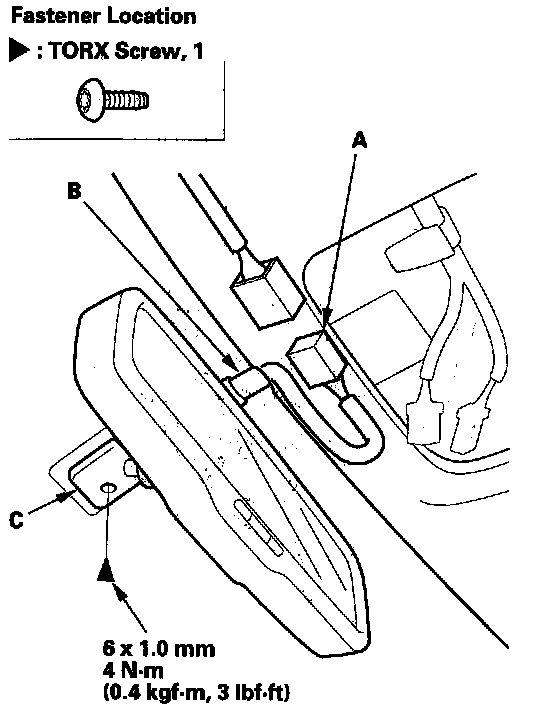

2. Disconnect the connector (A), and slide the mirror harness upper cover (B) forward, then remove the screw from the mirror base (C),

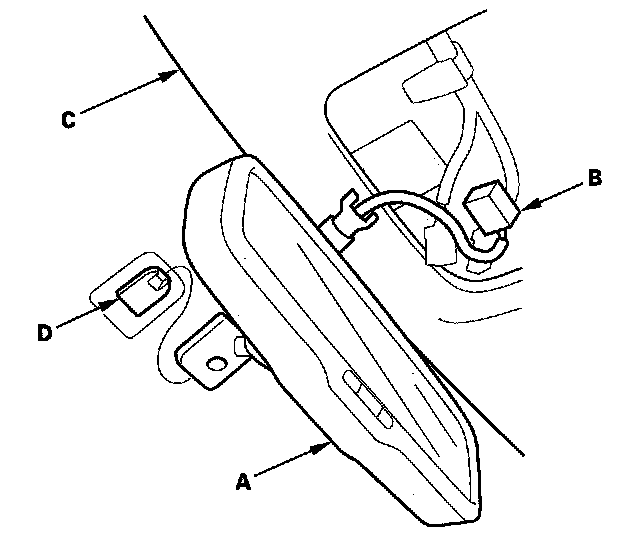

3. While holding the rearview mirror (A), the mirror harness connector (B) out through the headliner (C), then remove the rearview mirror from the mount (D).
4. Install the mirror in the reverse order of removal, and note these items:
- Before installing the mirror, remove the TORX screw, and apply medium strength type liquid thread lock to it.
- Make sure the connector it plugged in properly.
VAN, LX and EX Models ('07 Model)

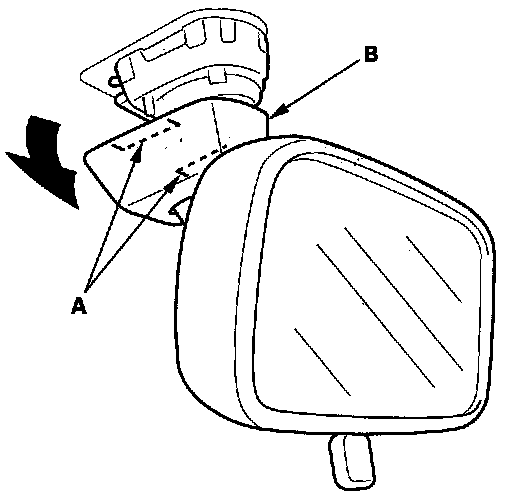

1. Release the hooks (A), then pull the mirror base cover (B) down.

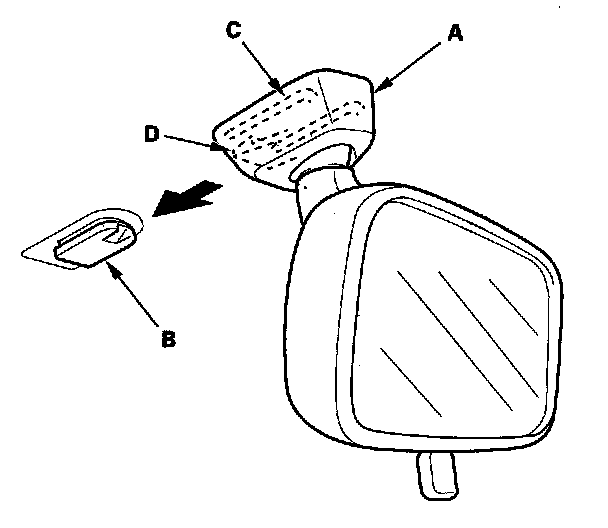

2. Pull the hook (A) down to release it from the mount (B), and the slide the mirror base (C) rearward, then remove the rearview mirror (D).
3. Fit the mirror base (A) over the mount (B), and secure the rearview mirror by the spring (C) and hook (D).
VAN, DX, LX, and EX Models ('08 Model)

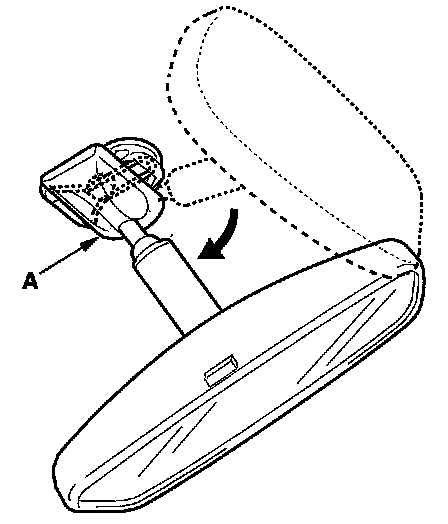

1. Turn the rearview mirror base (A) 90°.

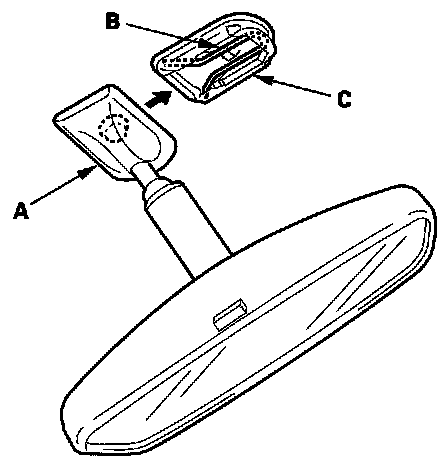

2. Slide the rearview mirror (A) down toward the bottom of the windshield to detach it from the spring (B) in the mount (C).
3. If necessary, remove the spring from the mount.
4. Install the rearview mirror in the reverse order of removal.
