Antenna
>>
System Diagram
System Diagram

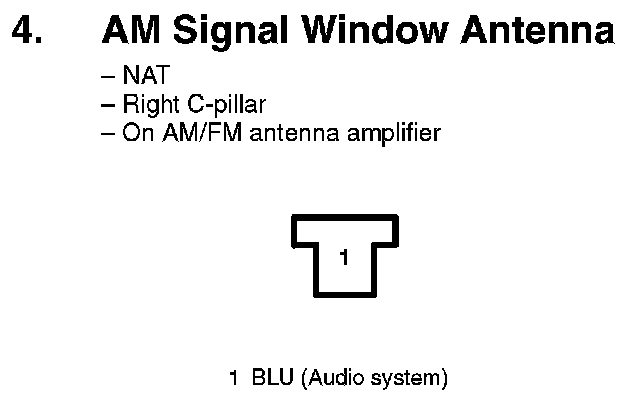

4. AM Signal Window Antenna:

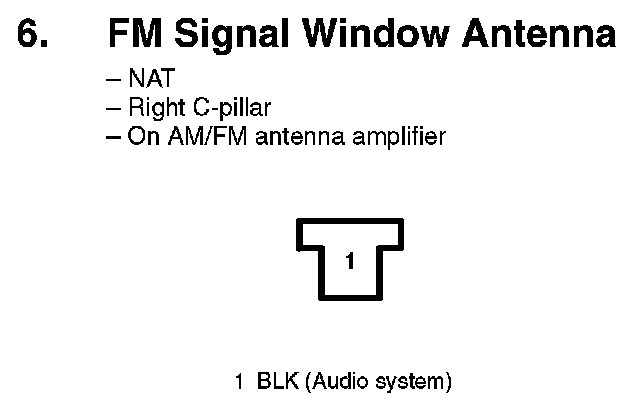

6. FM Signal Window Antenna:

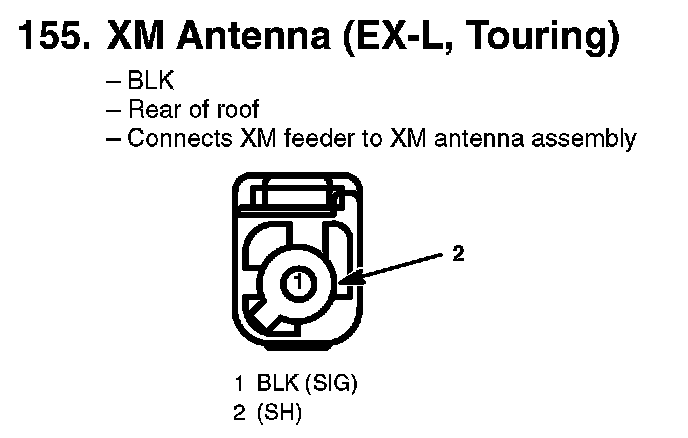

155. XM Antenna (EX-L, Touring):

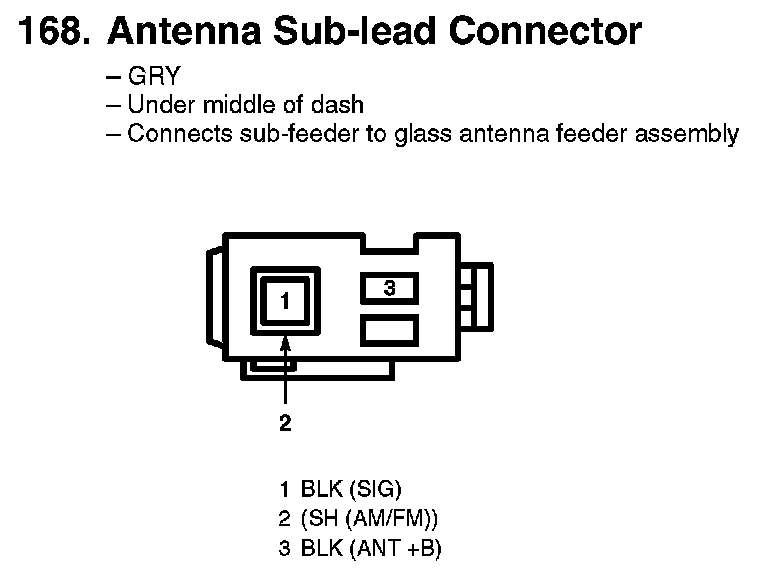

168. Antenna Sub-lead Connector:
