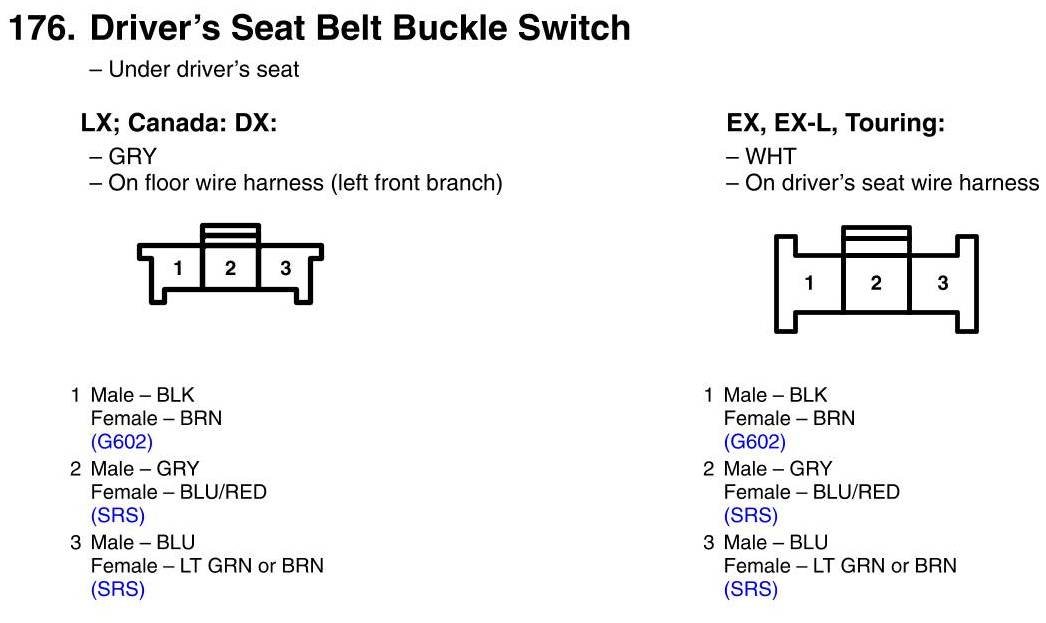

View 176 - Driver's Seat Belt Buckle Switch Connector View
View 176 - Driver's Seat Belt Buckle Switch Connector View
