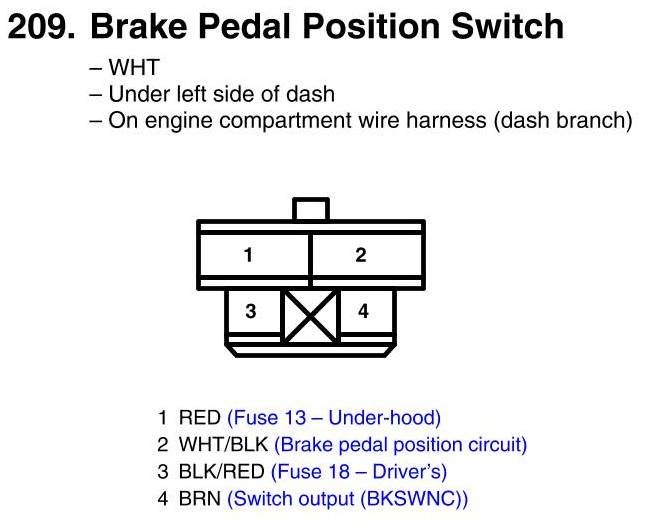

View 209 - Brake Pedal Position Switch Connector View
View 209 - Brake Pedal Position Switch Connector View
