Home >> Honda >> 2008 >> Odyssey V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 288 - Mode Control Motor Connector View (LX; Canada: DX)

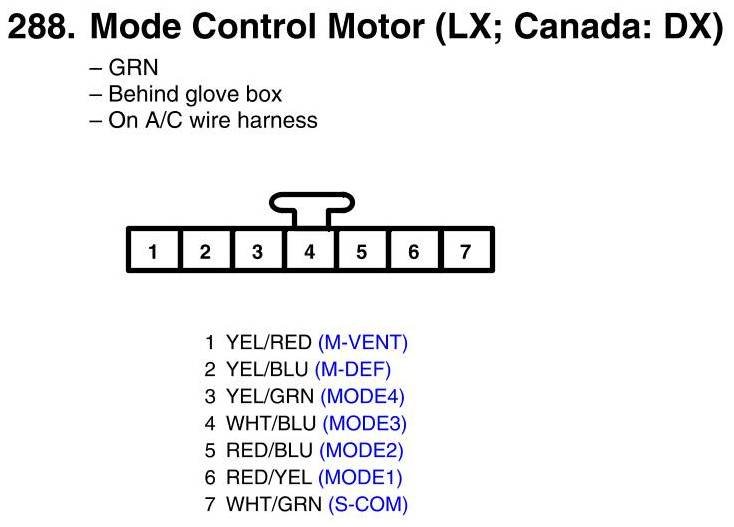

View 288 - Mode Control Motor Connector View (LX; Canada: DX)
