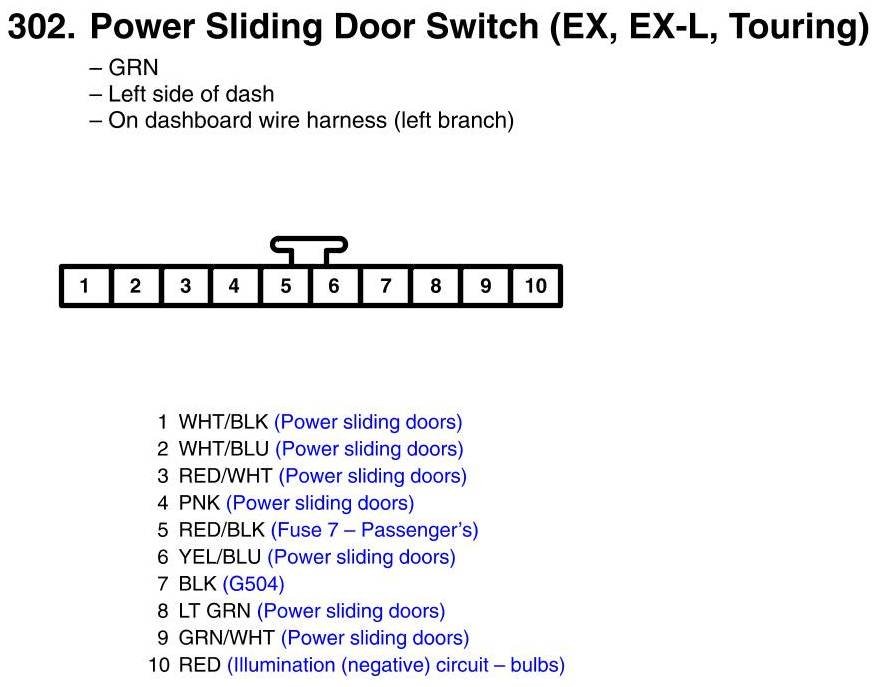

View 302 - Power Sliding Door Switch Connector View (EX, EX-L, Touring)
View 302 - Power Sliding Door Switch Connector View (EX, EX-L, Touring)
