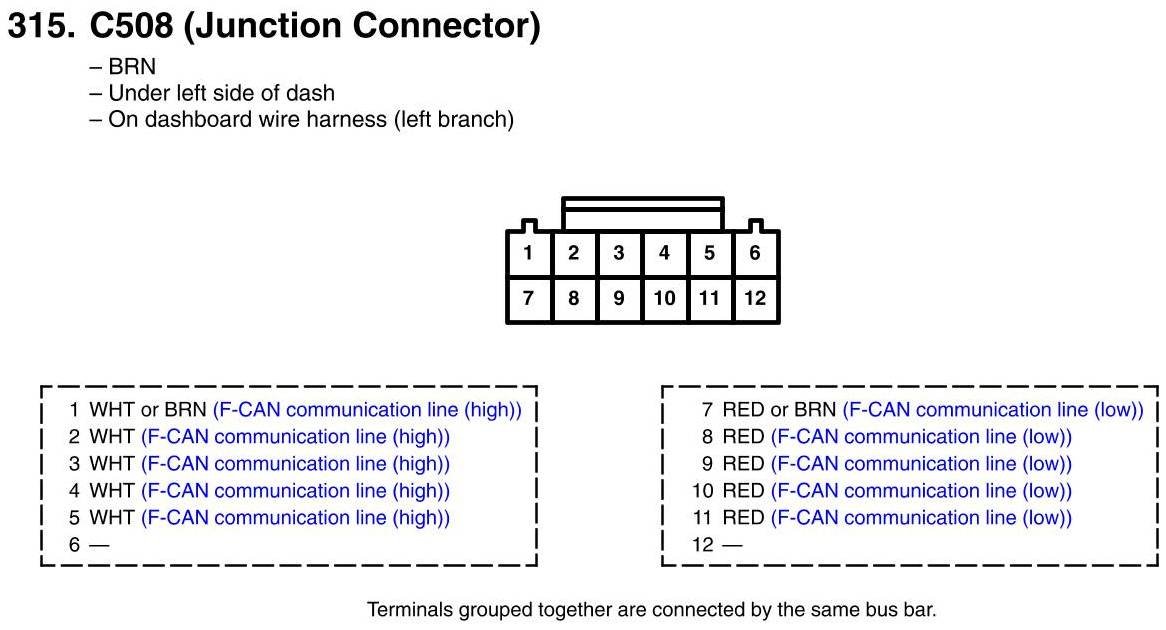

View 315 - C508 (Junction Connector) Connector View
View 315 - C508 (Junction Connector) Connector View
