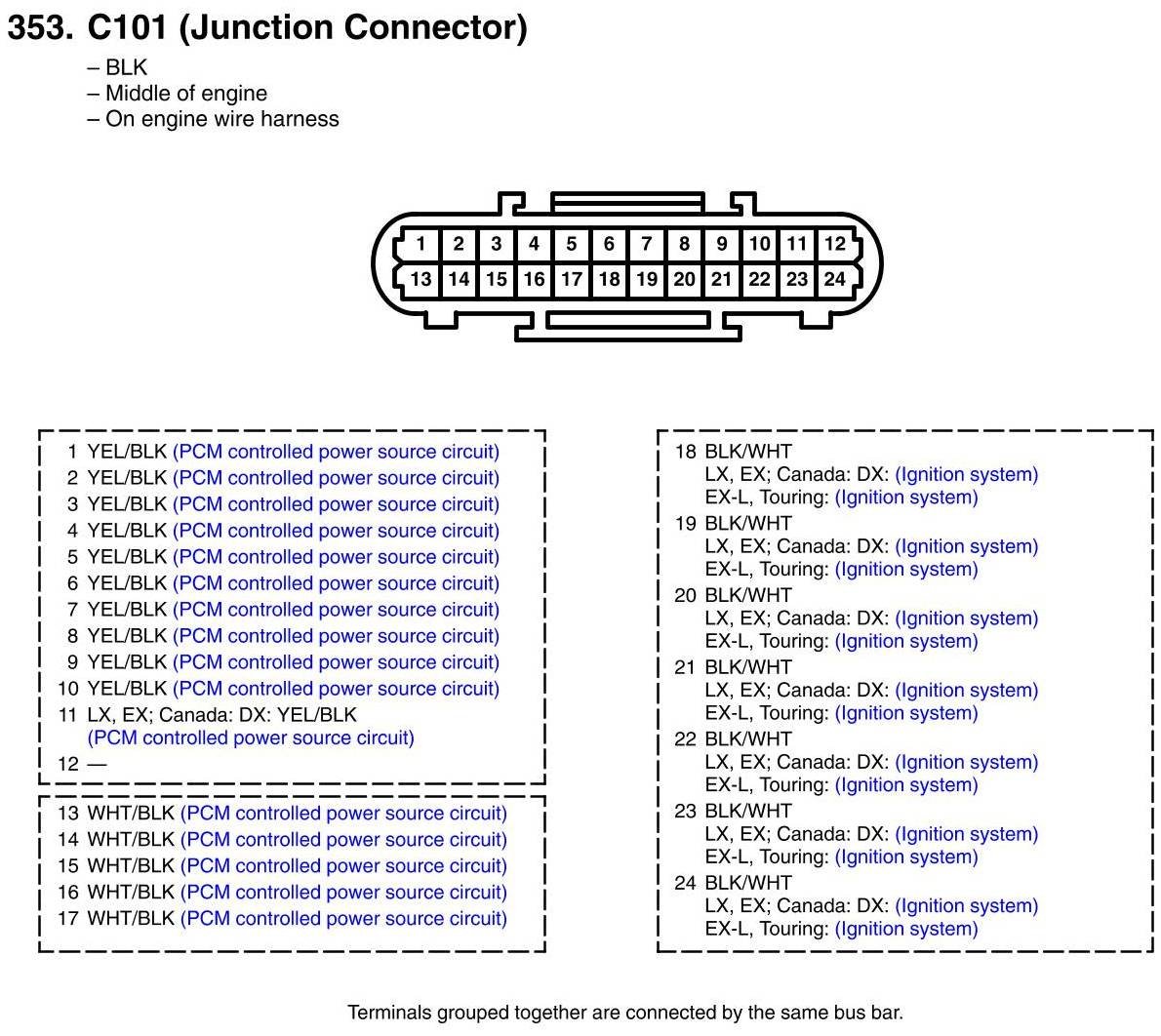

View 353 - C101 (Junction Connector) Connector View
View 353 - C101 (Junction Connector) Connector View
