Courtesy Lamp
>>
System Diagram
System Diagram

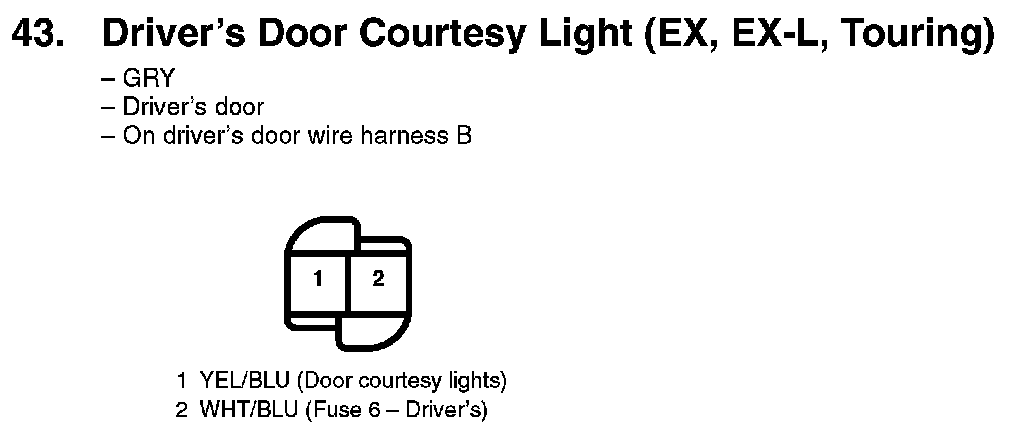

43. Driver's Door Courtesy Light (EX, EX-L, Touring):

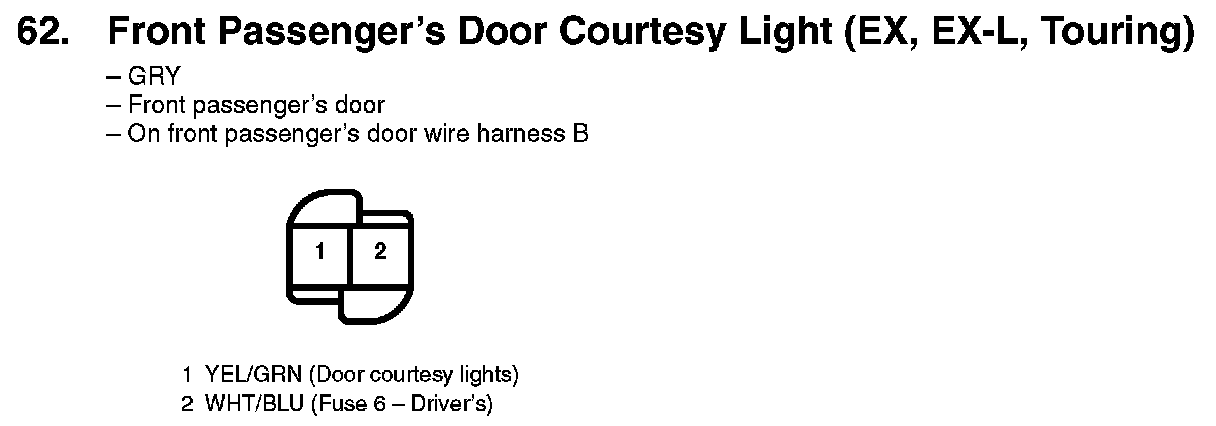

62. Front Passenger's Door Courtesy Light (EX, EX-L, Touring):
