Home
>>
Honda
>>
2008
>>
Odyssey V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Map Light
>>

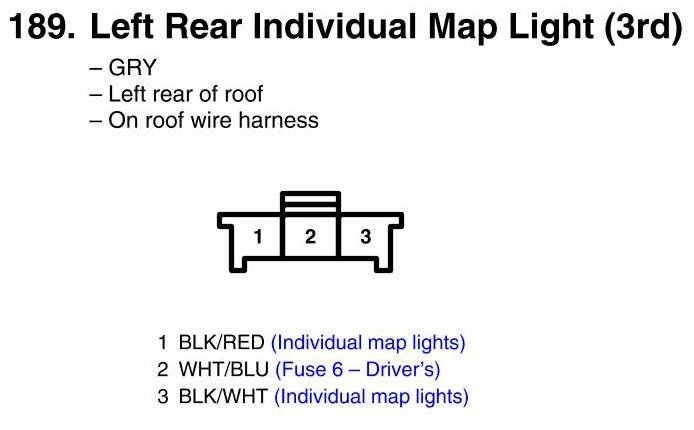

Left Rear Individual Map Light (3rd) Connector View
Left Rear Individual Map Light (3rd) Connector View
