Tire Pressure Module
>>
TPMS Control Unit
>>
Except Touring and Touring With PAX Tires Models
Except Touring and Touring With PAX Tires Models
TPMS
Control Unit

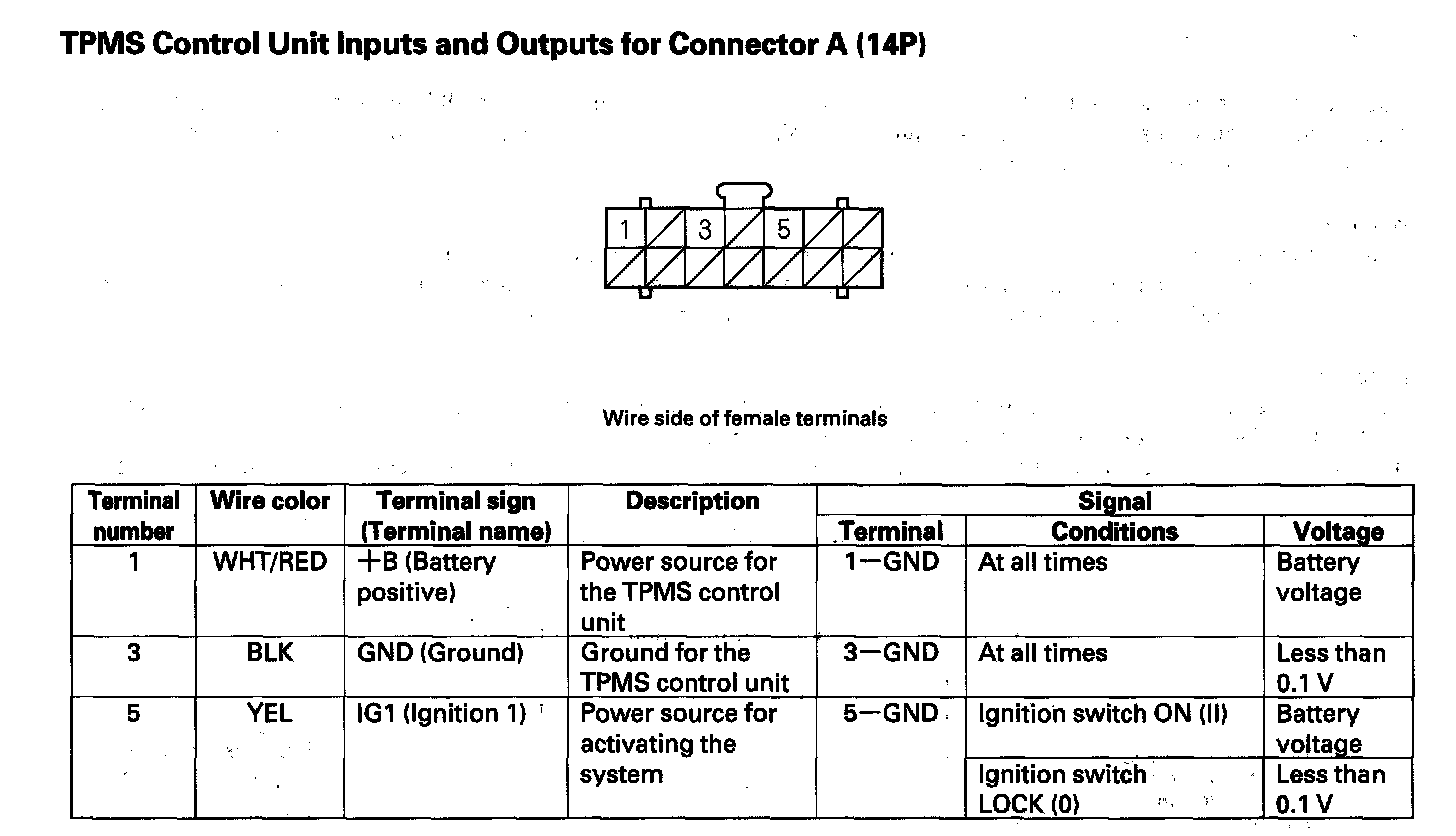

TPMS Control Unit Inputs and Outputs For Connector A (14P):
TPMS Control Unit Inputs and Outputs For Connector B (20P):
