Voice Activation Module
>>

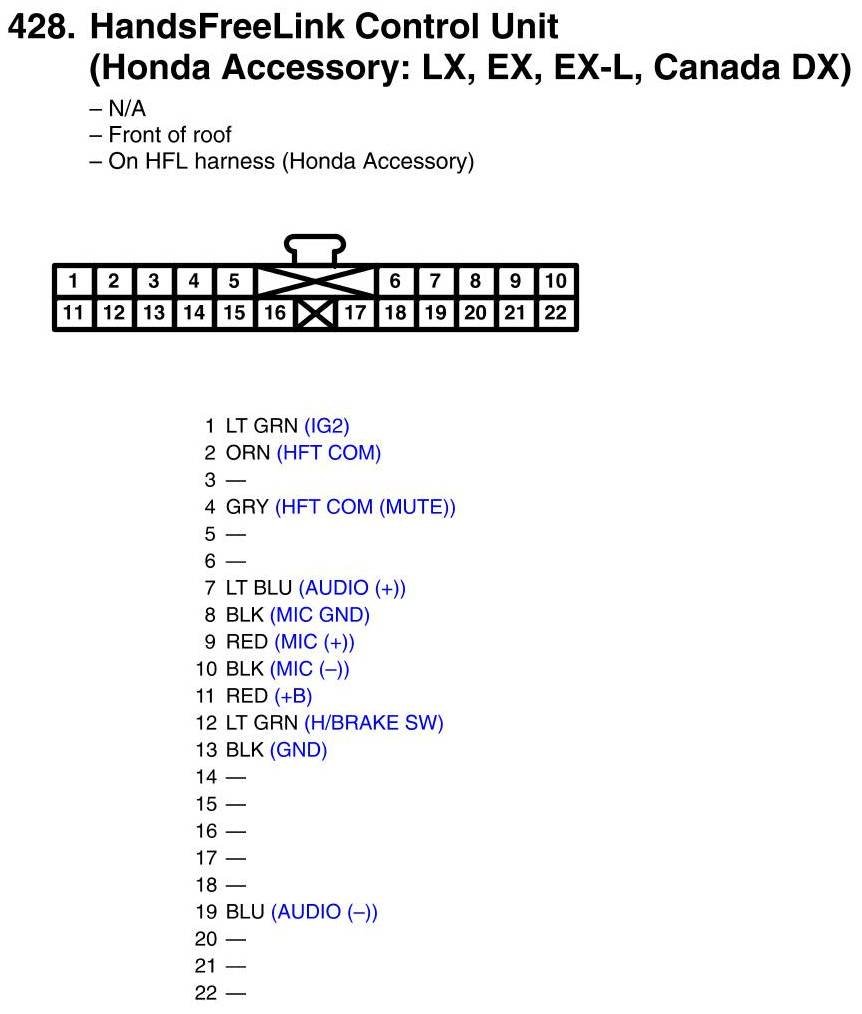

HandsFreeLink Control Unit Connector View (Honda Accessory: LX, EX, EX-L, Canada DX)
HandsFreeLink Control Unit Connector View (Honda Accessory: LX, EX, EX-L, Canada DX)
