Cylinder Block Assembly: Locations

Component Location Index

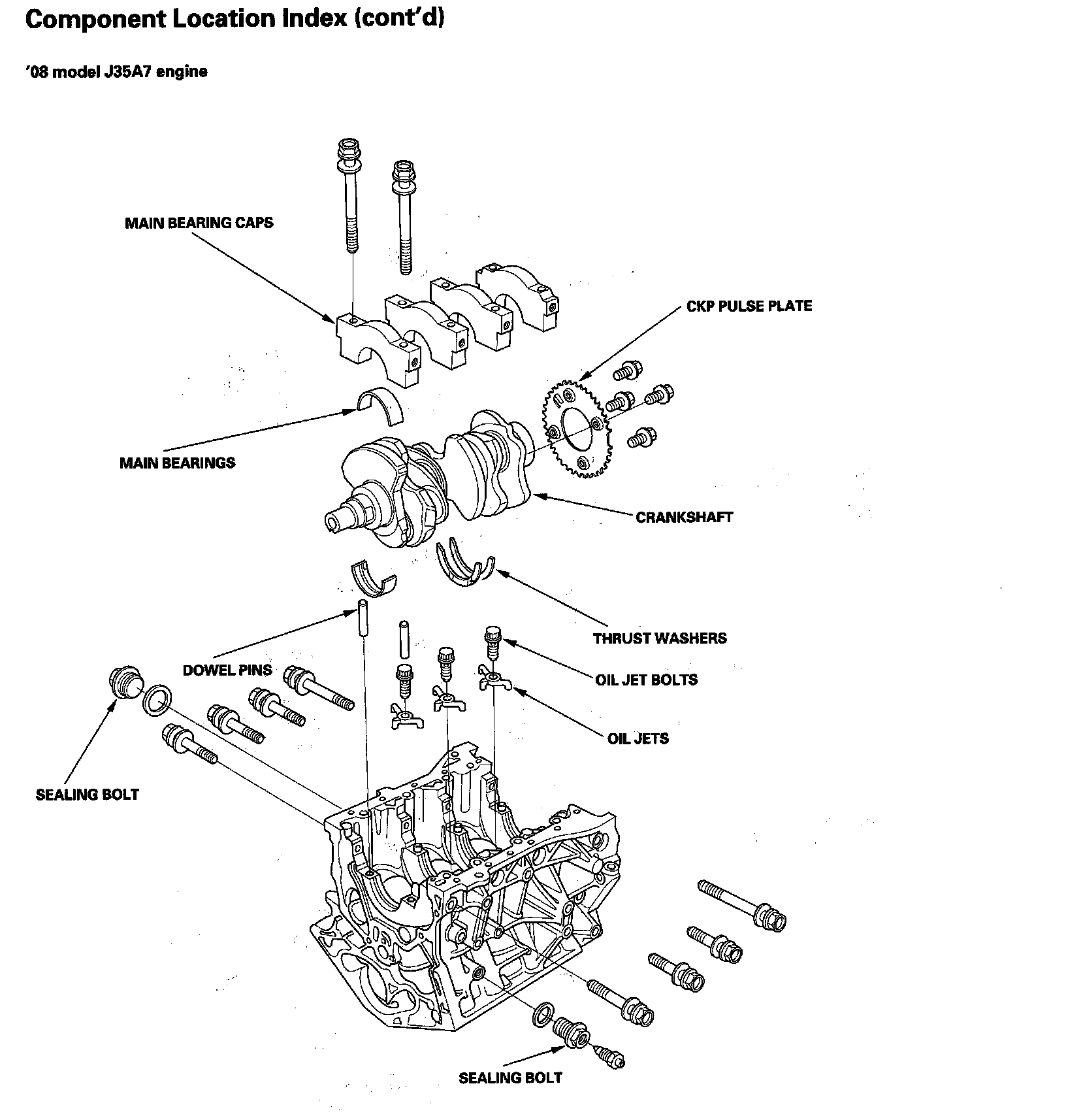

Engine Block Component Location Index (Part 1):

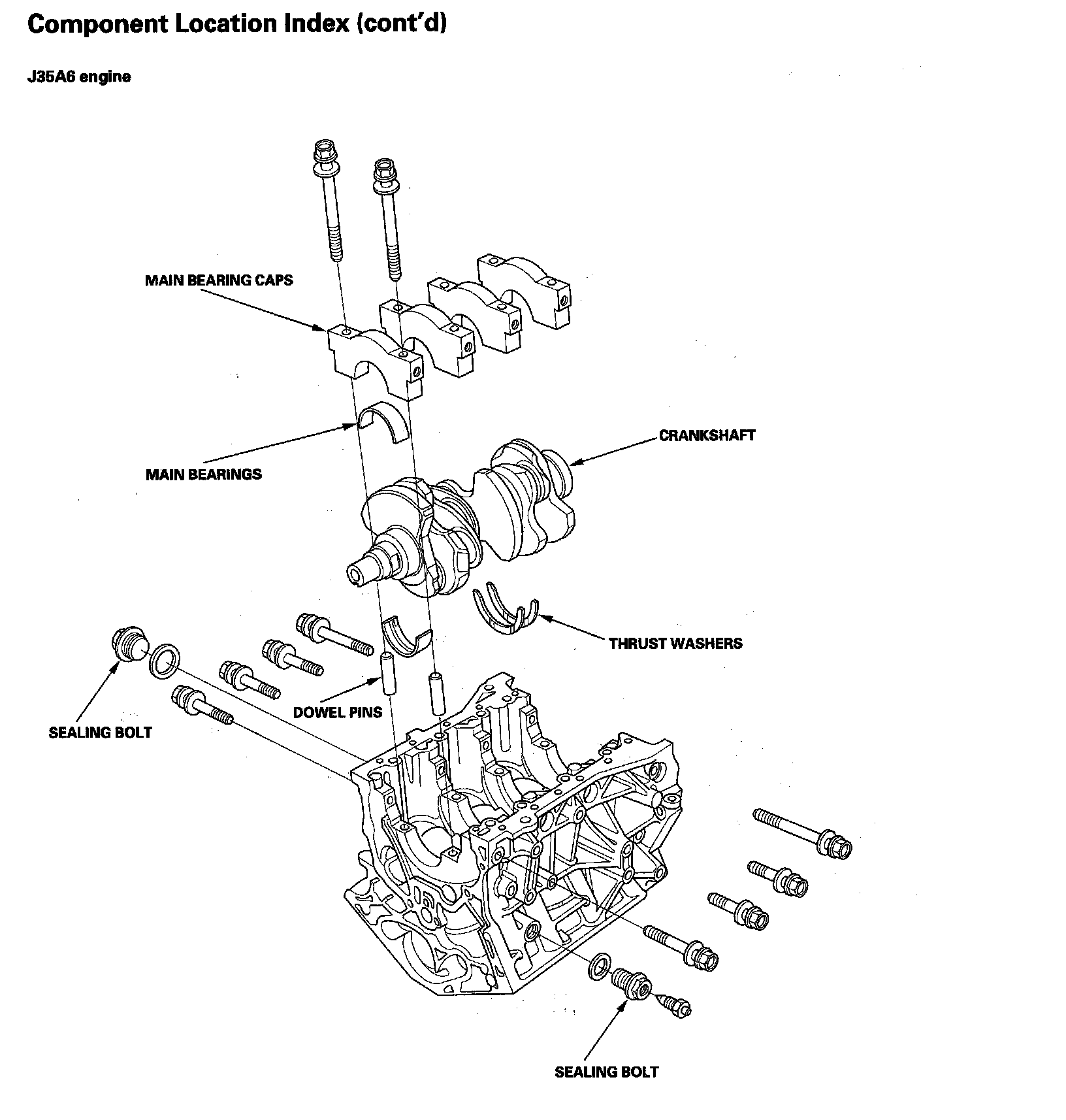

Engine Block Component Location Index (Part 2):

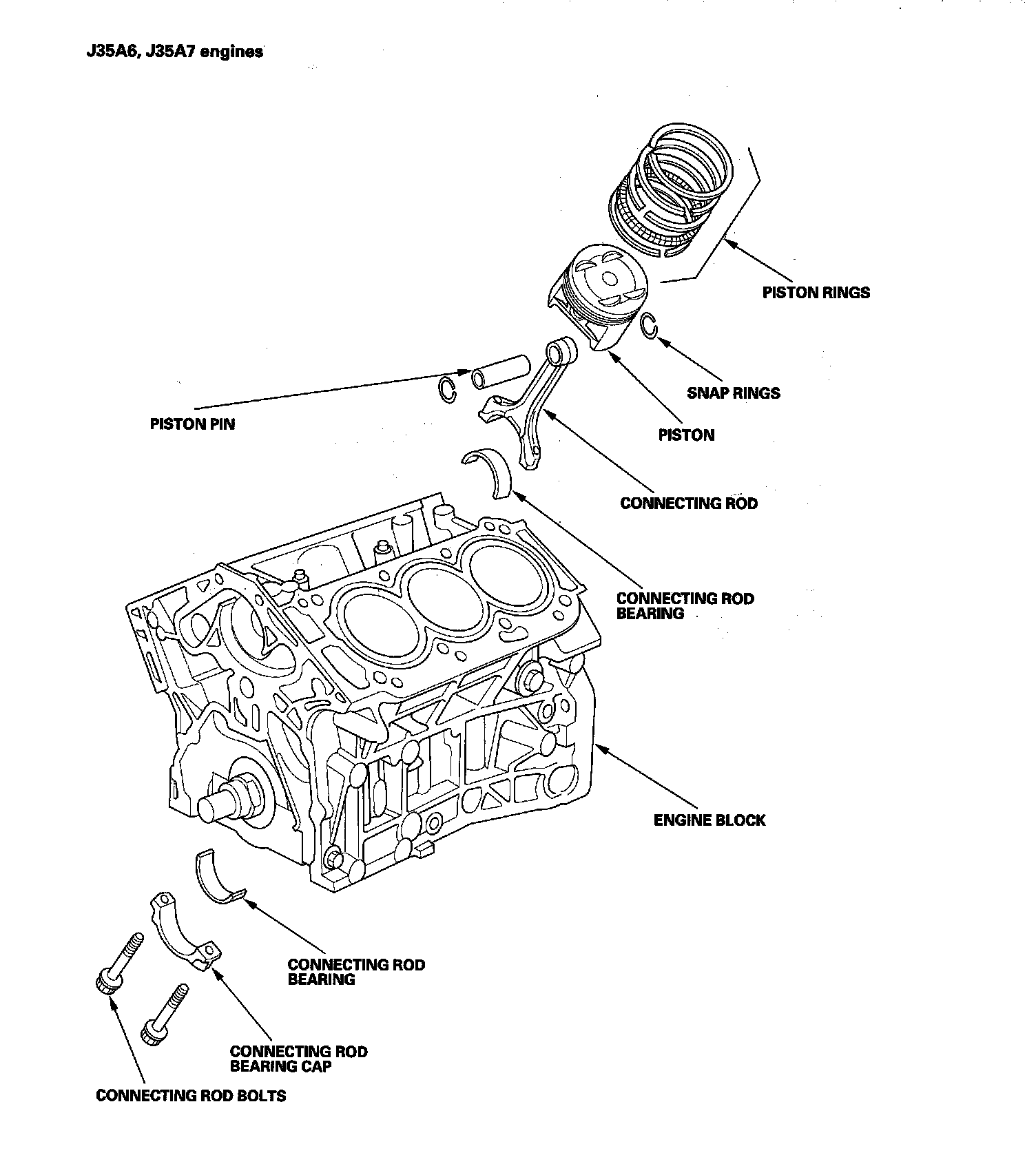

Engine Block Component Location Index (Part 3):

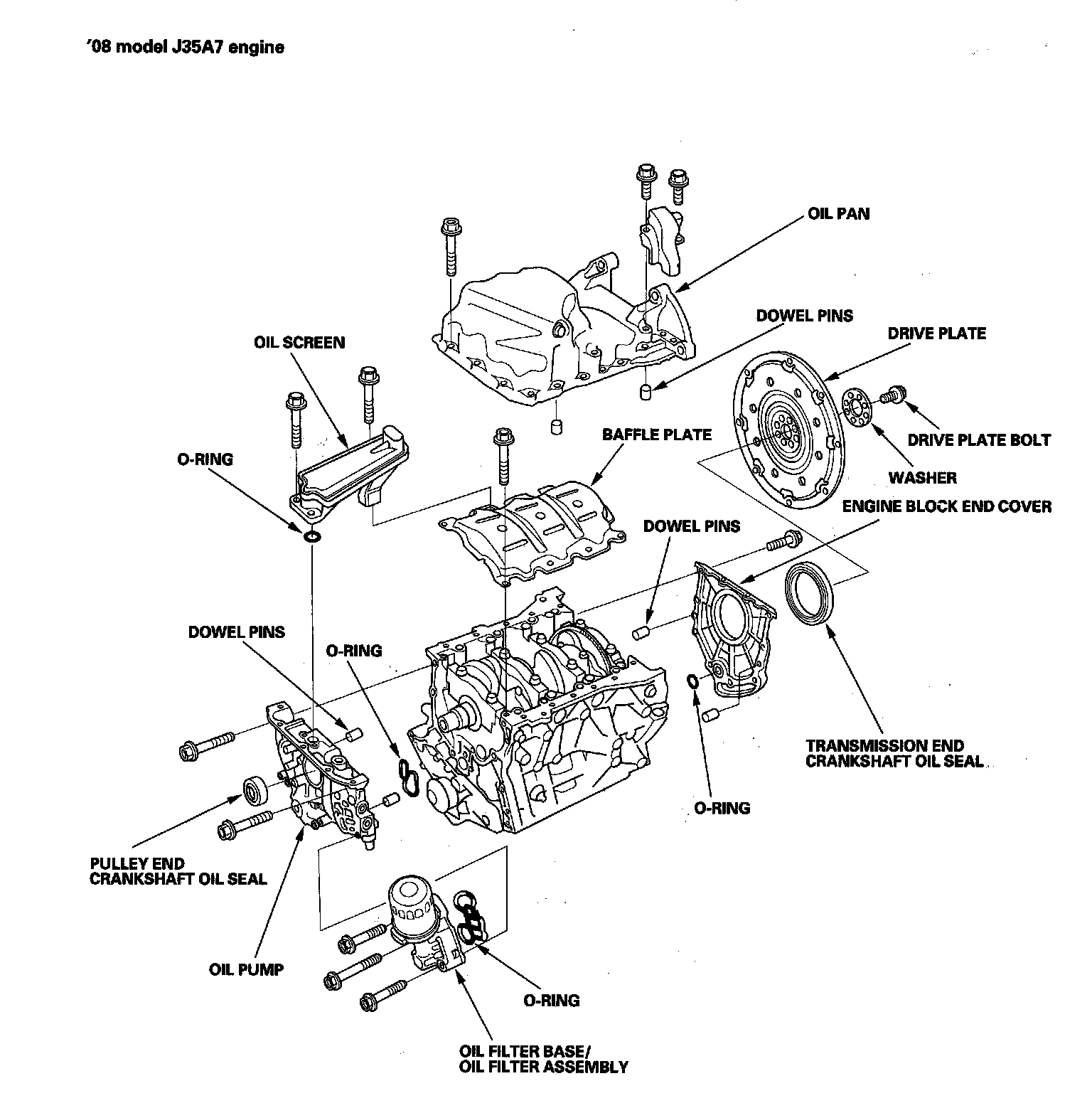

Engine Block Component Location Index (Part 4):

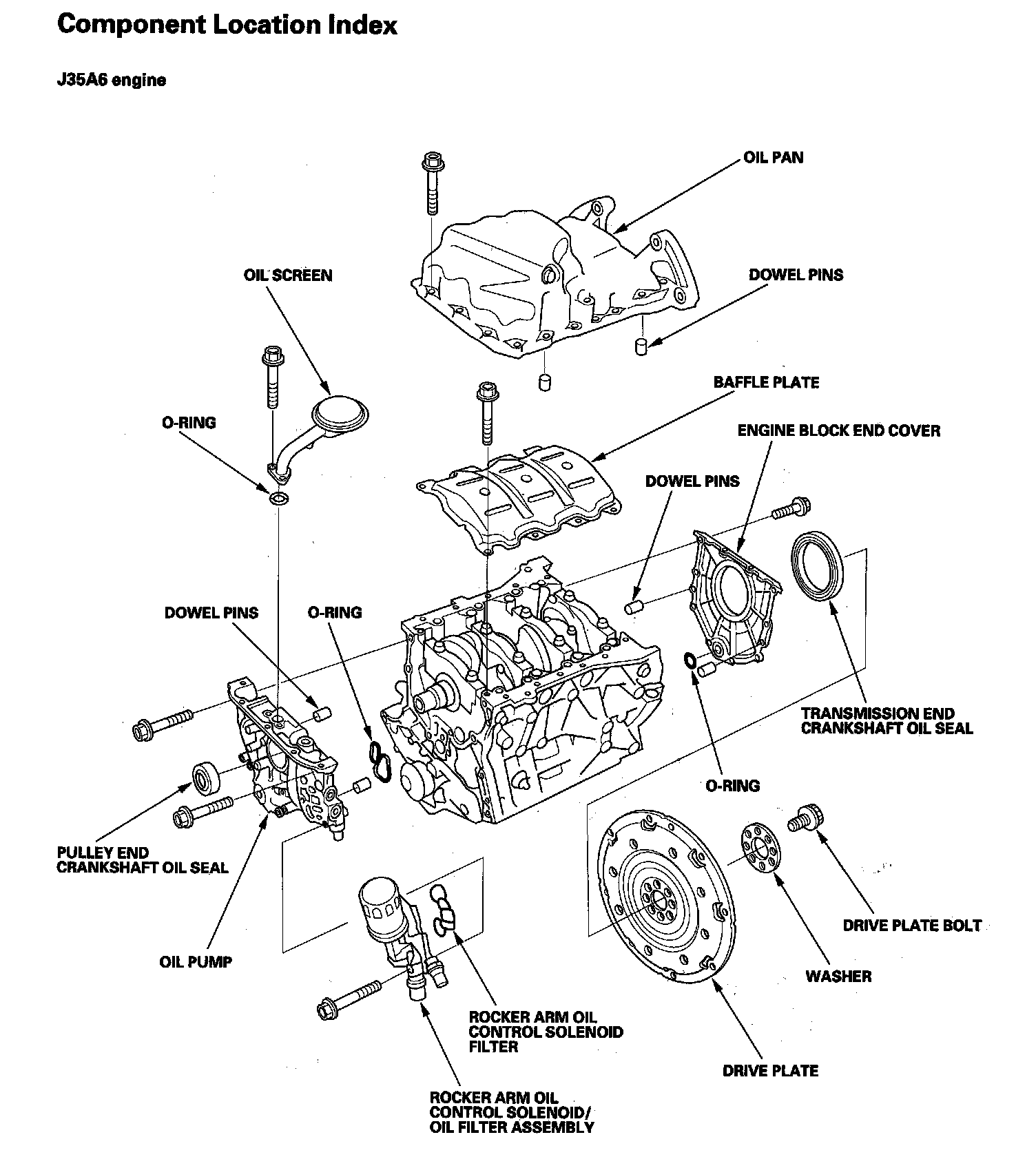

Engine Block Component Location Index (Part 5):
