J35A7

Ignition Coil Removal/Installation

'08 model J35A7 engine

1. Remove the engine cover.

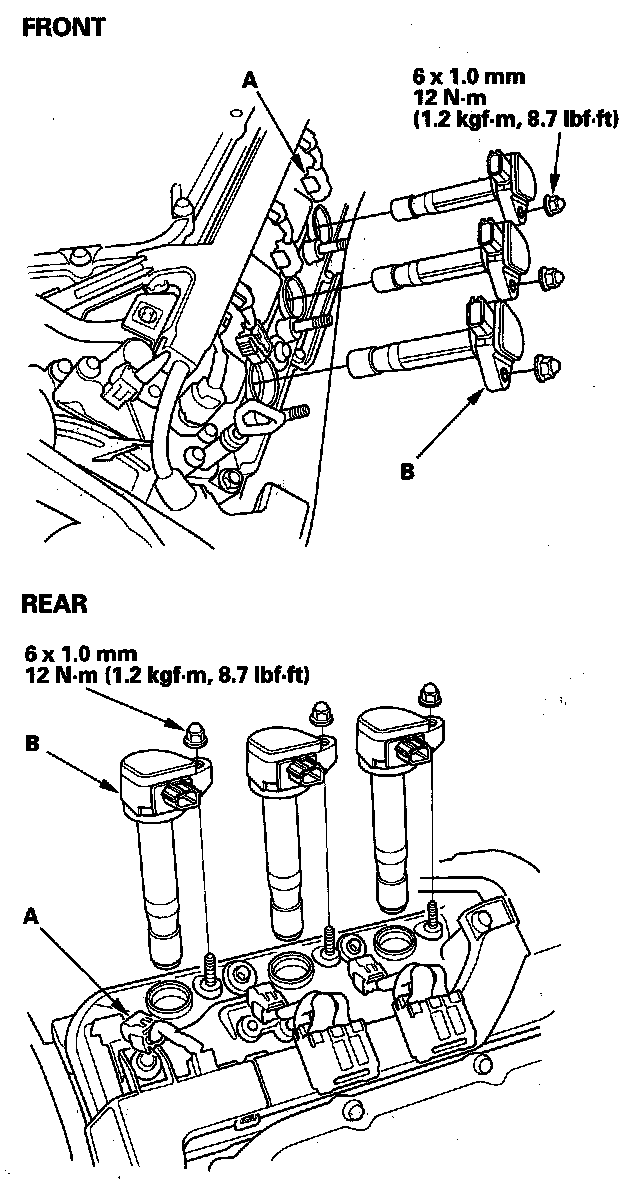

2. Disconnect the ignition coil connectors (A), then remove the ignition coils (B).






3. Install the ignition coils in the reverse order of removal.
