Honda
>>
2008
>>
Odyssey V6-3.5L
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Brakes and Traction Control
>>
System Specifications
>>
General Specifications
General Specifications
Rotor/Disc

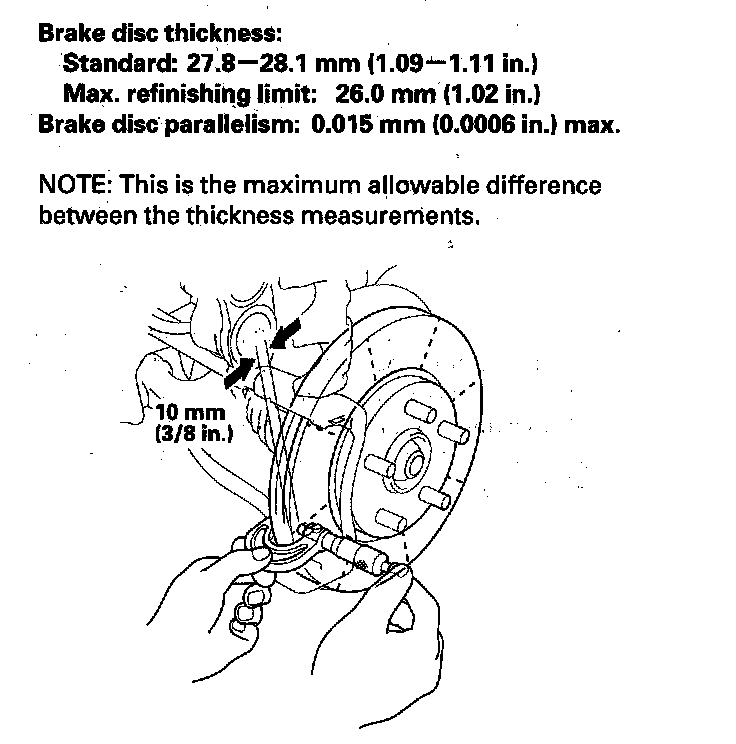

Front
Brake disc runout:
Service limit
0.04 mm (0.0016 in.)

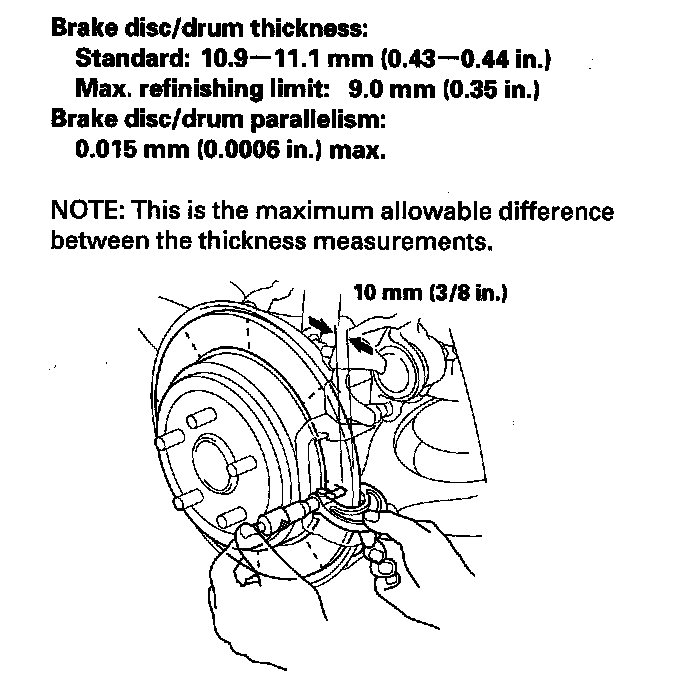

Rear
Brake disc/drum runout:
Service limit
0.04 mm (0.0016 in.)
