Ignition Switch: Testing and Inspection
Ignition SwitchTest
SRS components are located in this area. Review the SRS component locations and precautions and procedures before performing repairs or servicing.
1. Make sure you have the anti-theft code for the radio and the navigation system (if equipped), then write down the audio presets. Make sure the ignition switch is turned to LOCK (0).
2. Disconnect the negative battery cable.
3. Remove the left front door sill trim and left kick panel.

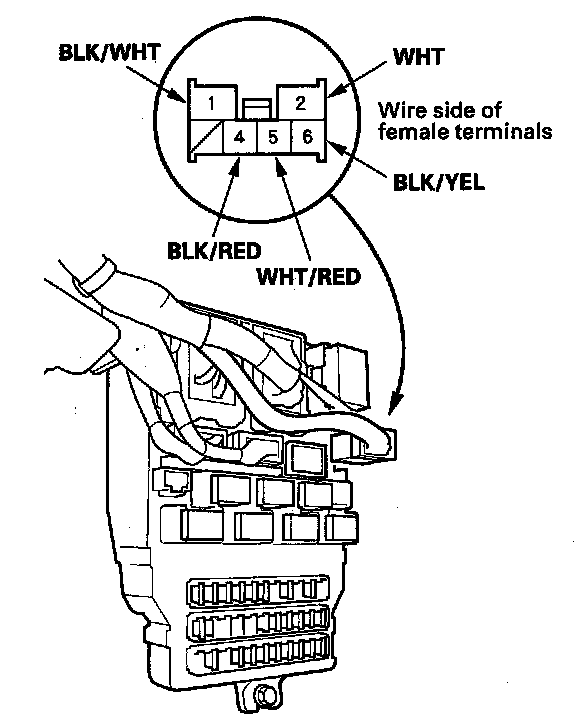

4. Disconnect the 6P connector from the driver's under-dash fuse/relay box.

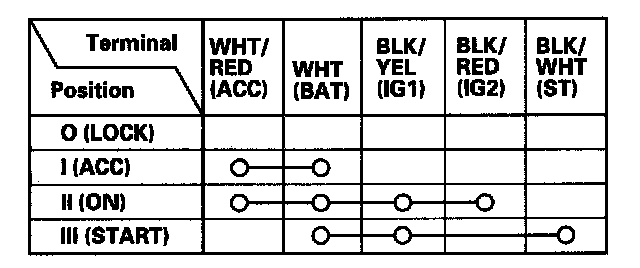

5. Check for continuity between the terminals in each switch position according to the table.
6. If the continuity checks do not agree with the table, replace the steering lock/switch.
7. Connect the negative cable to the battery.
8. Do the idle learn procedure.
9. After reconnecting the battery, enter the anti-theft code for the audio system and the navigation system (if equipped), and set the clock.
10. Do the power window control unit reset procedure.
