Starter Solenoid: Testing and Inspection
Starter Solenoid Test1. Make sure you have the anti-theft code for the audio system and the navigation system (if equipped).
2. Disconnect the negative cable from the battery.

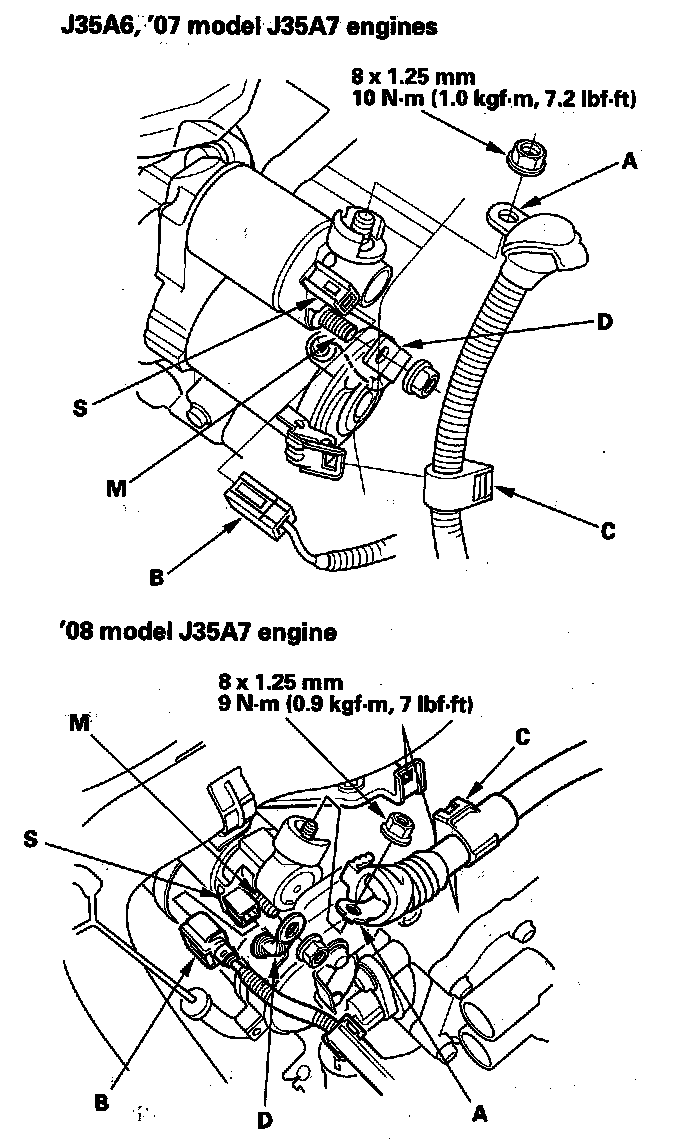

3. Remove the starter cable (A), S terminal connector (B), harness clamp (C), and motor cable (D).
4. Check the hold-in coil for continuity between the S terminal and the armature housing (ground). There should be continuity.
- If there is continuity, go to step 5.
- If there is no continuity, replace the solenoid.
5. Check the pull-in coil for continuity between the S terminal and the M terminal. There should be continuity.
- If there is continuity, the solenoid is OK.
- If there is no continuity, replace the solenoid.
6. Install the cables and connector in the reverse order of removal.
7. Connect the negative cable to the battery.
8. Enter the anti-theft code for the audio system and the navigation system (if equipped).
9. Set the clock (on vehicles without navigation).
