Wiper Arm: Adjustments

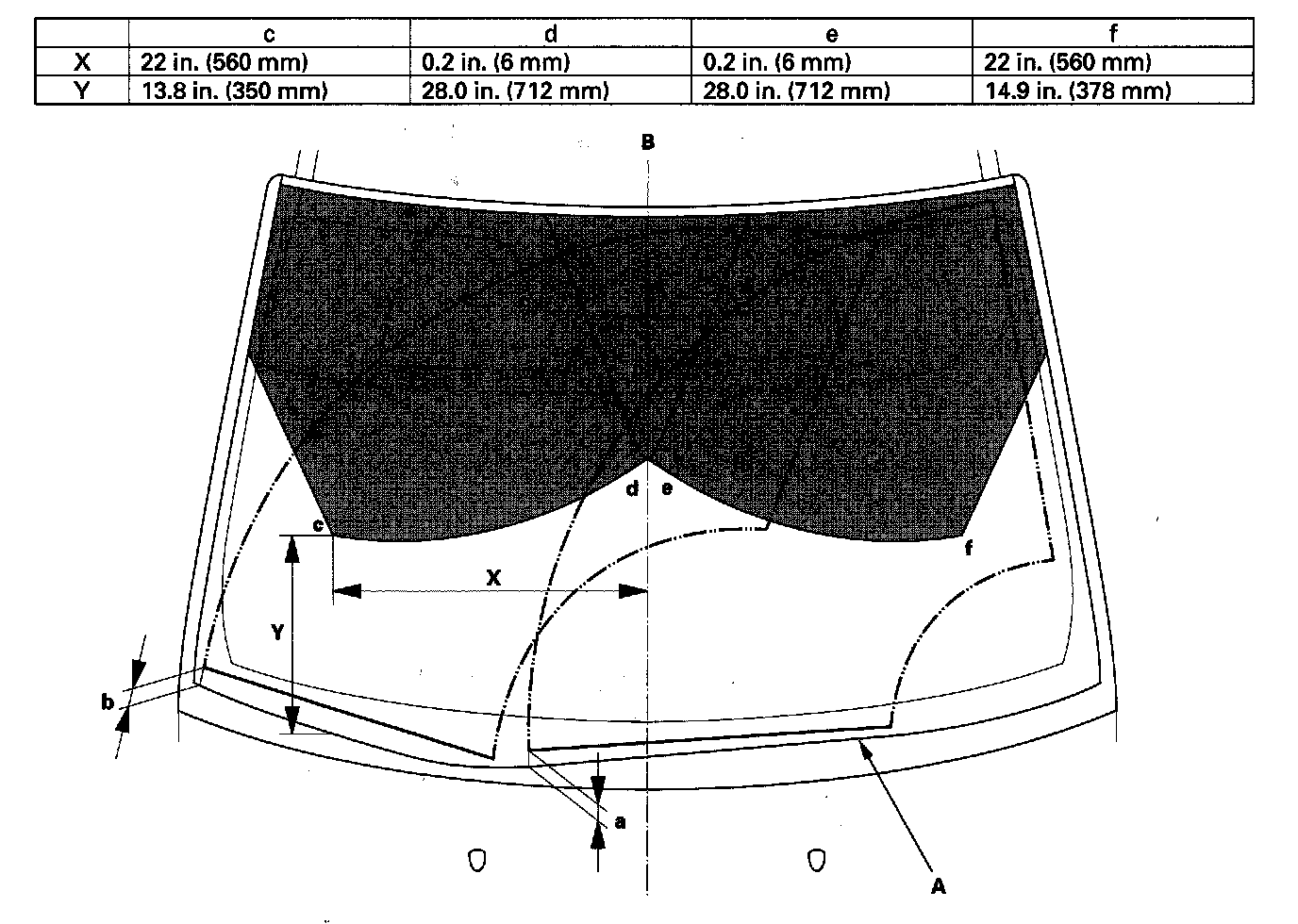

Wiper Arm/Nozzle AdjustmentFRONT
Wiper arms stop position
1. When the wiper arms stop at the automatic stop position, confirm that they are at the standard position.
a. Position at about 1.0 in. (25 mm) [1.7 in. (44 mm)] from the top of cowl cover (A)
b. Position at about 1.3 in. (33 mm) [1.4 in. (36 mm)] from the top of cowl cover (A)
[ ] : '08 model
Washer nozzle position
2. When you turn on the washers, confirm 50 % or more of the washer fluid lands within the spray area. If the spray area is not within the standard positions, adjust the nozzles.
NOTE:
- X shows the distance from the centerline (B) of the windshield.
- Y shows the distance from the cowl cover.

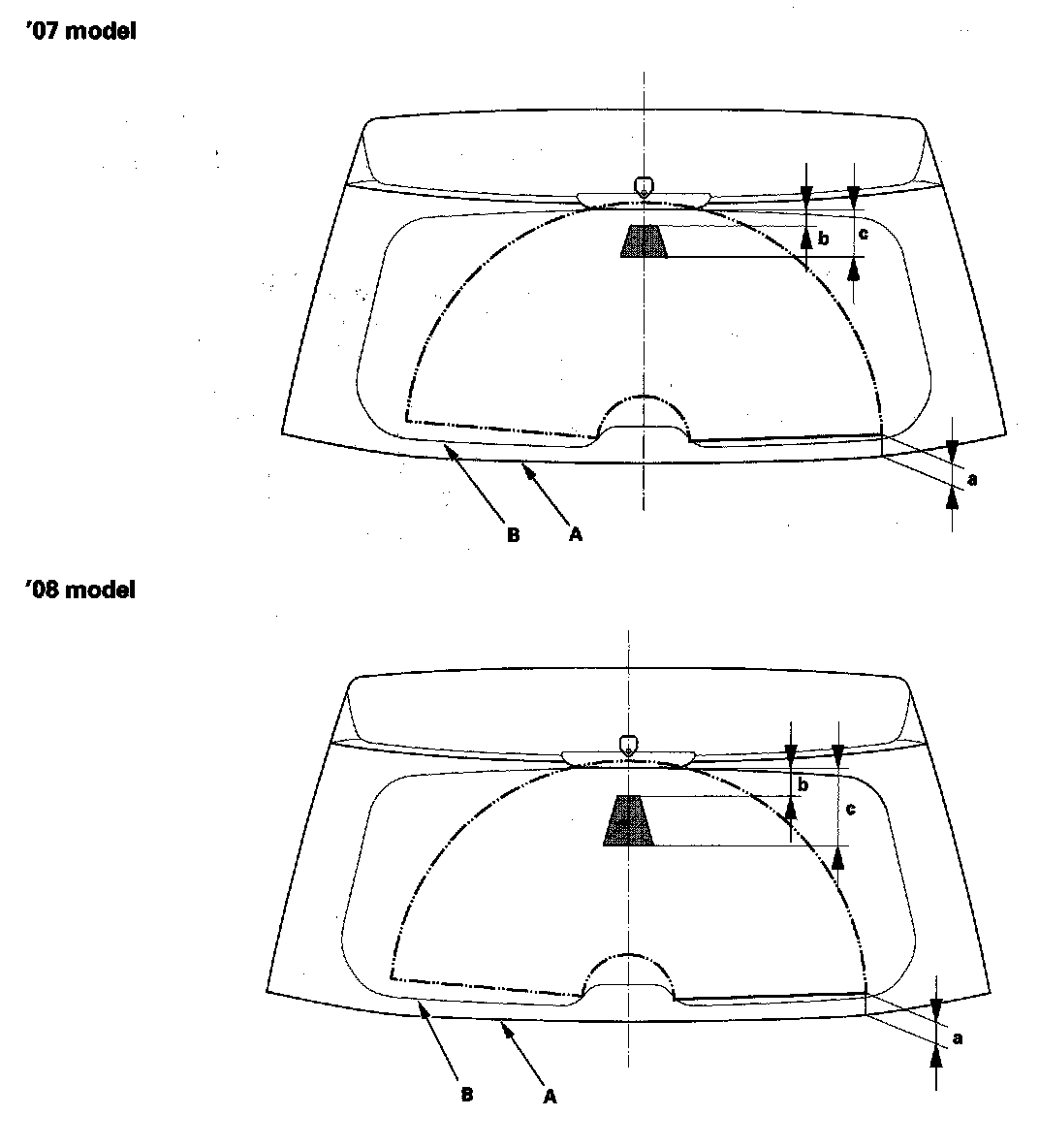

REAR
Wiper arm park position
1. When the wiper arm stops at the park position, confirm that it is at the standard position.
a. Position at about 1.8 in. (46 mm) from the bottom end of rear window (A)
Washer nozzle position
2. When you turn on the washers, confirm 50 % or more of the washer fluid lands within the spray area. If the spray area is not within the standard positions, adjust the nozzles.
b. Position at about 1.3 in. (34 mm) [2.5 in. (64 mm)] from the black ceramic area (B)
c. Position at about 3.9 in. (98 mm) [6.2 in. (158 mm)] from the black ceramic area (B)
[ ] : '08 model
