Cabin Noise Sensor
Cabin Noise Sensor

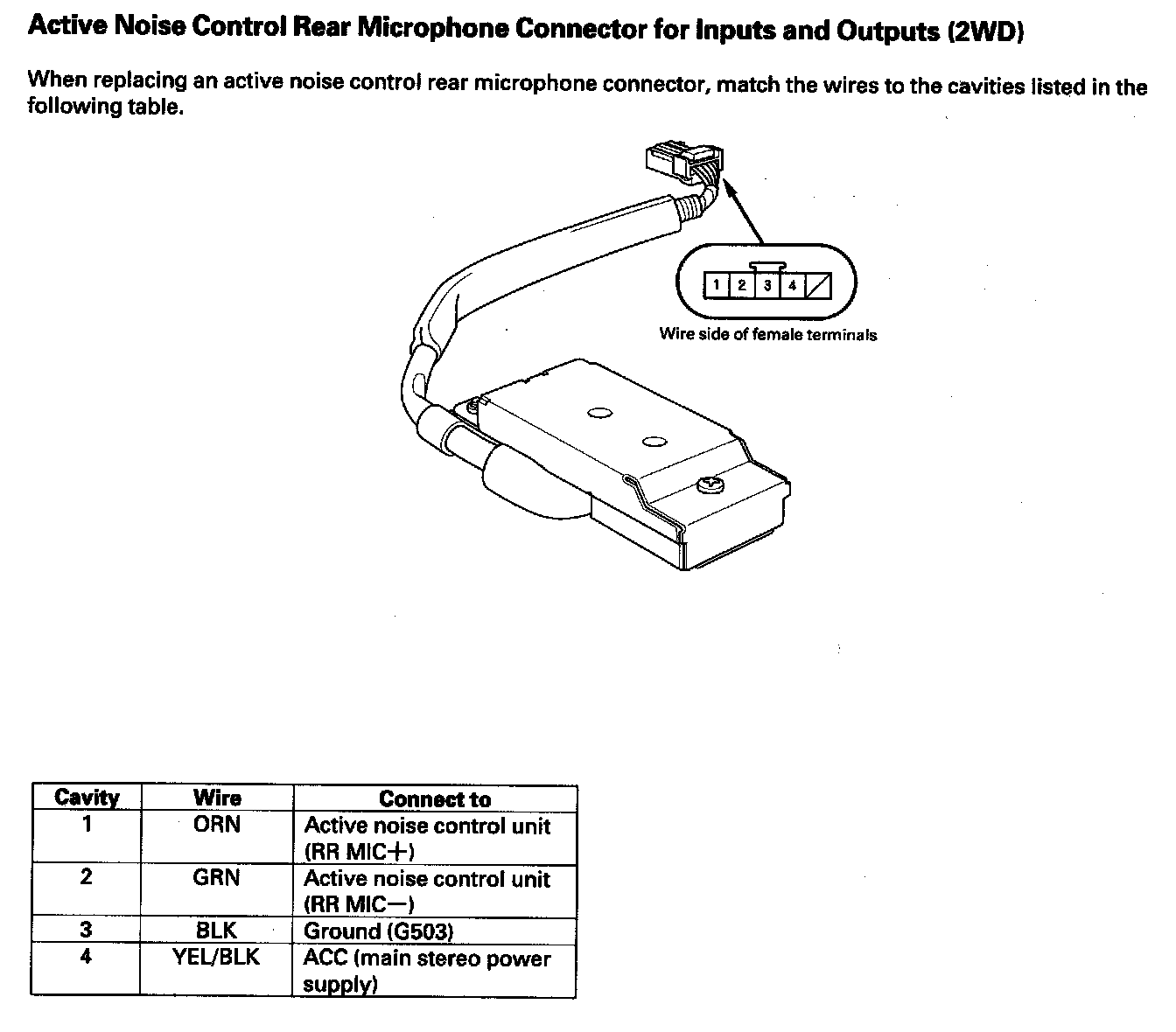

Active Noise Control Rear Microphone Connector For Inputs And Outputs (2WD):
