Home >> Honda >> 2008 >> Pilot 4WD V6-3.5L >> Repair and Diagnosis >> Body and Frame >> Seats >> Power Seat Motor >> Locations

Power Seat Motor: Locations

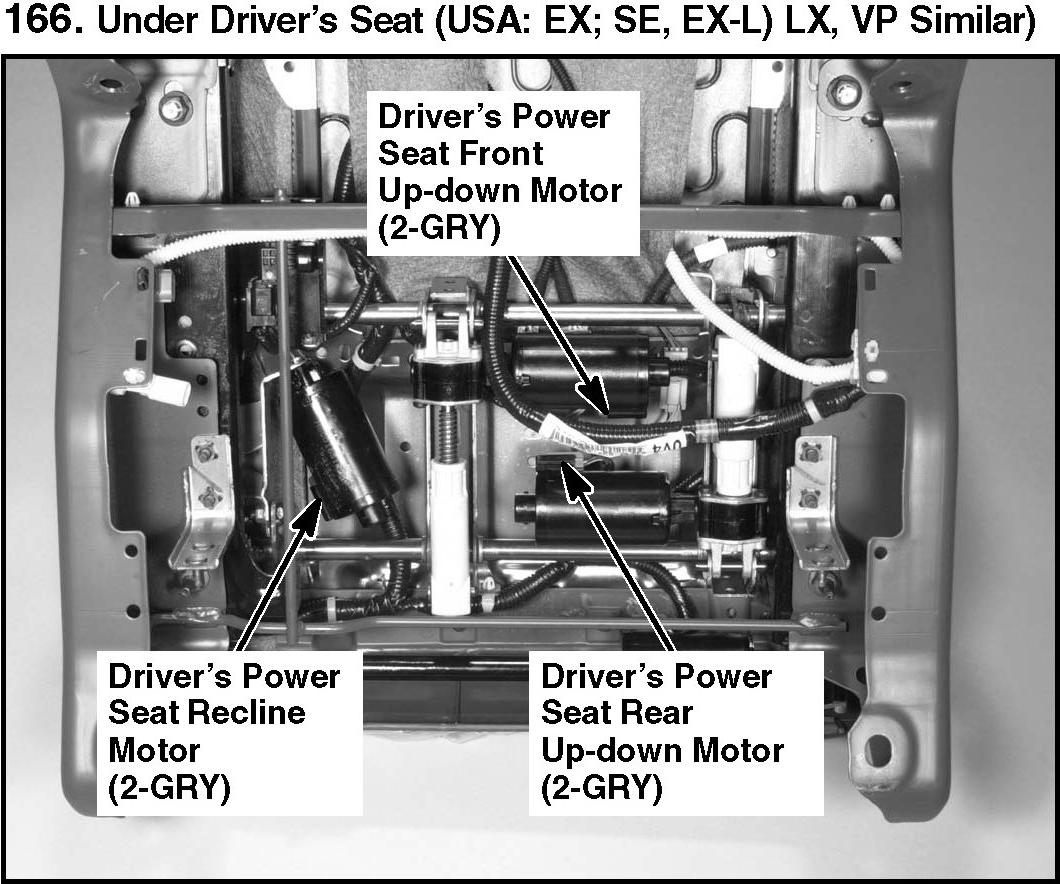

166. Under Driver's Seat (USA: EX; SE, EX-L) (LX, VP Similar):
