DTC P2769: Short in Torque Converter Clutch Solenoid Valve Circuit
General Description
The torque converter clutch solenoid valve switches the hydraulic circuit to engage/disengage the torque converter clutch. When the torque converter clutch solenoid valve is turned ON, hydraulic pressure is applied to the torque converter clutch. When the torque converter clutch solenoid valve is turned OFF, hydraulic pressure to the torque converter clutch is interrupted. The powertrain control module (PCM) commands the driver circuit to turn on the torque converter clutch solenoid valve. The circuit diagnoses malfunctions such as a circuit short or open, and sends back a return signal during the PCM's command. When the return signal does not match the PCM command, a malfunction is detected by the PCM. The malfunction is detected when the return signal does not match the PCM command to turn ON the torque converter clutch solenoid valve, and a DTC is stored.

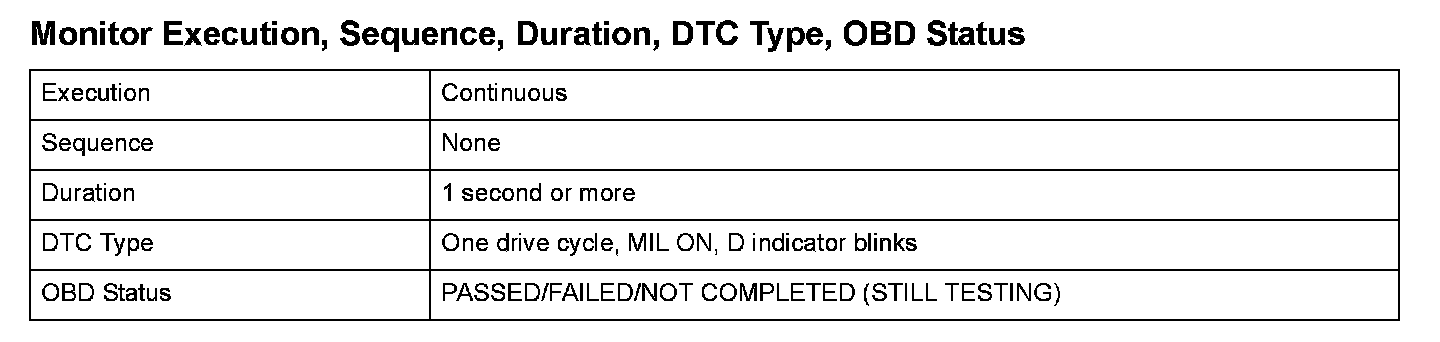

Monitor Execution, Sequence, Duration, DTC Type, OBD Status
Enable Conditions
Malfunction Threshold
The return signal does not match the command to turn ON the torque converter clutch solenoid valve for at least 1 second.
Driving Pattern
1. Start the engine. Hold the engine speed at 3,000 rpm without load (in Park or neutral) until the radiator fan comes on.
2. Drive the vehicle at a steady speed of 37 mph (60 km/h) until the transmission shifts into 5th gear in D position with a constant throttle position.
- Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.
Diagnosis Details
Conditions for illuminating the MIL
When a malfunction is detected, the MIL comes on and the DTC and the freeze frame data are stored in the PCM memory.
Conditions for clearing the MIL
The MIL will be cleared if the malfunction does not recur during three consecutive trips in which the diagnostic runs.
The MIL, the DTC, and the freeze frame data can be cleared by using the scan tool Clear command or by disconnecting the battery.
