Navigation Display: Service and Repair

Navigation Display Removal/Installation

1. Remove the CD changer.

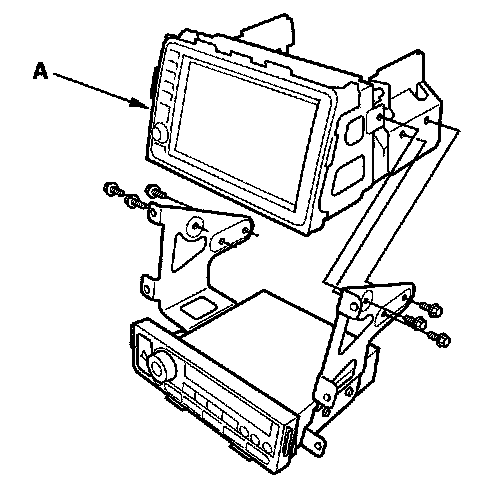

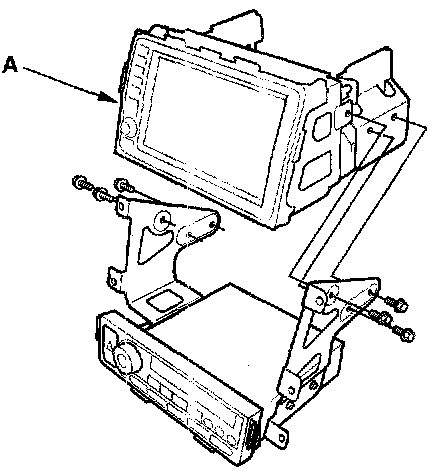

2. Remove the bolts and the navigation display (A).






3. Install the navigation display in the reverse order of removal.
